Overview

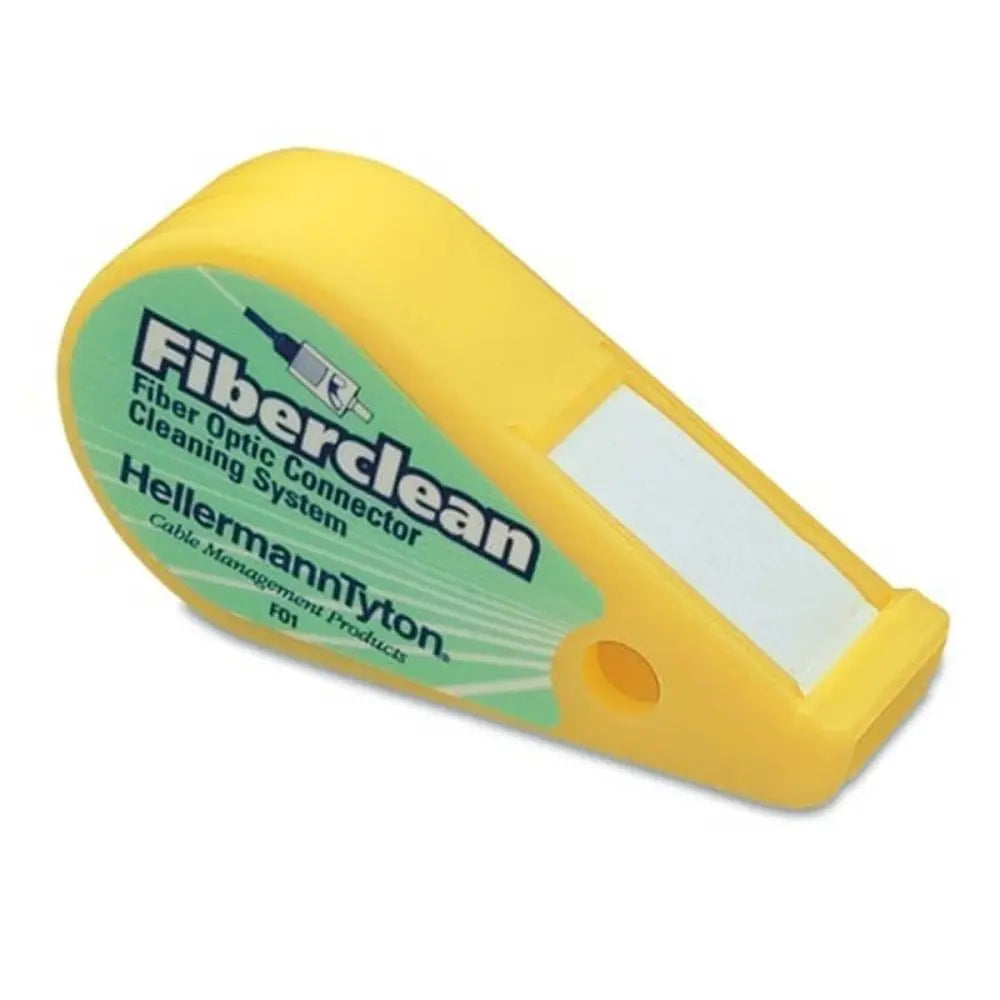

The HellermannTyton FO1 FiberClean is a refillable cassette-style fiber optic cleaner designed for the effective removal of contaminants such as dust, dirt, oil, and grease from fiber ferrule end faces. This dispenser maintains its cleaning media in a clean, dry environment during use.

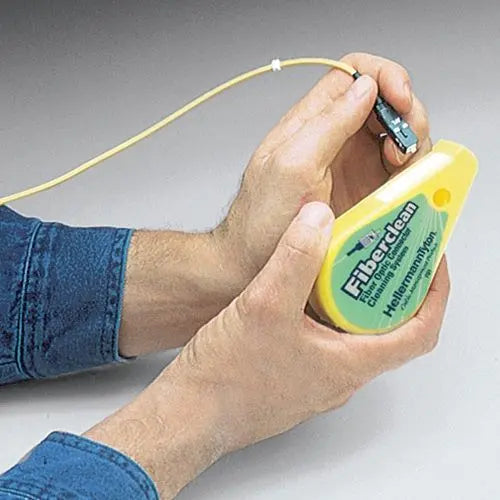

The system utilizes an "Ultra White" lint-free non-woven film. It is designed for simple operation, requiring only three figure-8 strokes to clean a connector surface, effectively replacing traditional cleaning methods like alcohol swabs or compressed air. The used cleaning tape is directed out of the back of the unit where it can be easily torn off at a perforation.
Key Features
-
Refillable Cassette Design
Allows for cost-effective maintenance by reusing the dispenser body when cleaning media is exhausted. -
Lint-Free Cleaning Film
Ensures that no residual particles are left on the connector end face during the cleaning process. -
Compact Dispenser
Maintains the cleaning tape in a protected, clean environment for consistent performance in various work sites. -
Simple Operation
Requires only three figure-8 strokes per connector, optimizing time on the job. -
Effective Contaminant Removal
Designed to remove dust, oil, grease, and other common debris from fiber optic ferrules. -
Material Management
Used tape exits the rear of the device and features perforations for easy removal and disposal. -
High Capacity
The 10-foot cleaning tape provides over 400 total cleaning connections per cassette.
Applications
- Data Center fiber maintenance
- Fiber optic connector end-face inspection and cleaning
- Field technician fiber installation and repair
Package Contents
- 1x FO1 FiberClean Dispenser
- 1x Installed Cleaning Tape Cartridge (10 feet)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | HellermannTyton |
| Model | FO1 |
| Part Number | 091X101 |
| Tape Length | 10 feet |
| Cleaning Capacity | Over 400 connections |
| Warranty | 30-day |
Frequently Asked Questions
How many connectors can one cassette clean?
One dispenser provides over 400 connections.
Is this device refillable?
Yes, the FO1 is a refillable system using the FO1-Refill cartridge.
What kind of material is the cleaning tape?
It uses an "Ultra White" non-woven, lint-free film.
How do I dispose of used tape?
The used tape is directed out the back of the unit, where it can be torn off at the perforation.
Does this cleaner use solvents?
No, it is a dry cleaning system that replaces the need for alcohol and other solvents.
