Overview

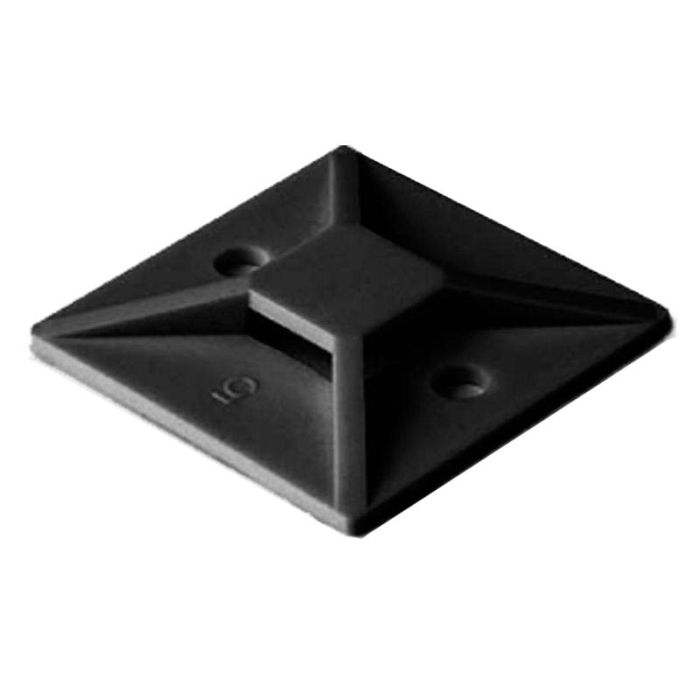

The HellermannTyton MB4A0H4 Adhesive Mounting Base is a versatile cable management component designed to provide secure tie-down points for wire and cable bundles. These mounts feature a robust rubber-based adhesive backing for quick installation on smooth surfaces, complemented by screw-down holes for applications requiring extra mechanical stability.
Engineered with a 4-way entry design, these bases allow cable ties to be inserted from any of the four sides, facilitating flexible routing parallel or perpendicular to the wire bundle. Constructed from durable PA66 material, they are suitable for various indoor data center and cabinet installations where cable organization and support are critical.
Key Features
-
4-Way Cable Entry
Allows cable ties to be inserted from four different directions, simplifying cable routing in tight spaces. -
Dual Mounting Options
Features both adhesive backing and screw-down capability, providing versatile installation choices. -
Durable PA66 Construction
Manufactured from high-grade Polyamide 6.6, ensuring long-term structural integrity and resistance. -
Rubber-Based Adhesive
Provides strong initial tack on a variety of surfaces for rapid mounting. -
Optimized Size
Compact 1.12" x 1.12" footprint efficiently saves valuable space in racks and enclosures. -
Compatibility
Designed for use with standard T18 and T50 cable tie series.
Applications
- Data center rack cable management
- Telecommunications cabinet organization
- General wire bundle securing
- Equipment panel cable routing
Package Contents
- 10 x Adhesive Mounting Bases
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | HellermannTyton |
| Part Number | MB4A0H4 |
| Material | Polyamide 6.6 (PA66) |
| Dimensions | 1.12" L x 1.12" W x 0.22" H |
| Max Cable Tie Width | 0.18" |
| Mounting Hole Diameter | 0.18" |
| Color | Black |
| Packaging | 10 per pack |
Frequently Asked Questions
Can these mounts be used with screws?
Yes, they include mounting holes to support screw-down installation for added stability.
What is the maximum cable tie width they support?
These bases accommodate cable ties up to 0.18" in width.
Are these compatible with the T50 series ties?
Yes, these bases are specifically designed for compatibility with T18 and T50 cable tie series.
What material are the bases made of?
The bases are constructed from PA66, known for its strength and durability in industrial applications.
Can I apply these to any surface?
They feature a rubber-based adhesive suitable for smooth, clean surfaces. For porous or irregular surfaces, the screw-down method is recommended.
