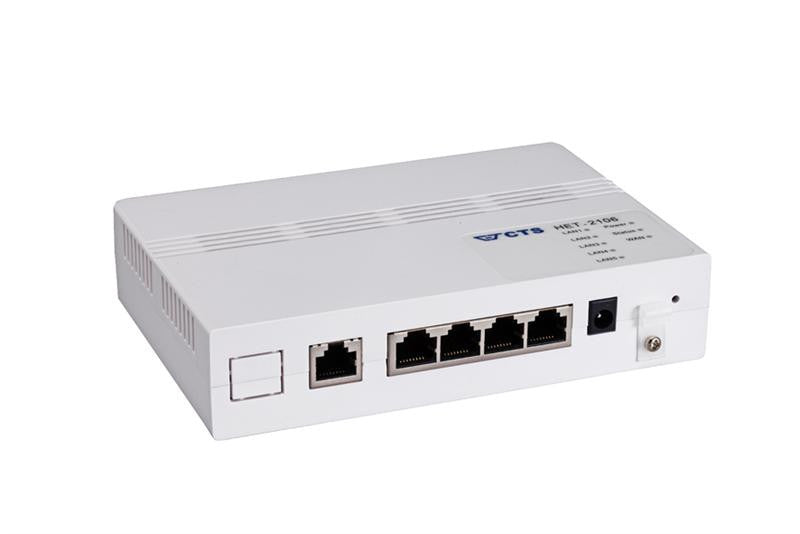

Managed fiber switch with five 10/100Base-TX ports, BiDi single strand uplink and embedded fiber
Move your mouse over image or click to enlarge

Managed fiber switch with five 10/100Base-TX ports, BiDi single strand uplink and embedded fiber

CTS Part No.: HET2106-W2B

  • $ 99.00 or

Product description
HET2106-W2B is a low cost Fiber Switch designed for Fiber-To-The-Home (FTTH) applications. Units provides 100Mbps of full duplex connection for subscribers through its single strand single-mode WDM fiber up-link port. Switch has 5 Fast Ethernet RJ45 10/100Base-TX copper ports for local networking. The unit supports remote provisioning and management. Bandwidth control features allow Service Providers to better manage their network load and QoS Features. 802.1Q VLAN support allow deployment of future triple play services.

  • Offers Auto-MDI/MDI-X and 10/100Mbps auto-sensing support.
  • Supports IGMP snooping to quickly deploy IPTV service
  • Q-in-Q VLAN stacking support - service providers can transport the encapsulated traffic for different customers without security risk
  • DHCP Auto-Provision with Text based Config file to fulfill the deployment requirements and reduce the OPEX of device maintenance for service providers or operators
  • Popular SNMP trap message to rapidly identify network fault due to power outage and reduce truck rollls to save OPEX for service providers
  • Built-in Cable Tray - keep excessive fiber inside the box. Save extra cost of buying a separate cable tray as well as saving installation space

Technical Specifications

  • Fiber interface runs 100Mbps Tx:1550/Rx:1310nm upstream/downstream
  • 5 port Ethernet switch with 10/100 ports and Auto MDI/MDI-X cable detection
  • Based VLAN, Tagged VLAN, Q-in-Q VLAN, VLANs: Support to 16 VLAN Groups
  • Bandwidth control ingress/egress:˜256k | 512k | 2M | 5M | 10M | 100Mbps
  • Firewall features: NAT with VPN pass-through, DMZ, 4K NAT sessions
  • IGMP Snooping V1/V2, IGMP Throttling
  • DHCP Client/ DHCP Auto-provisioning/ Text based config
  • telnet, CLI, SNMP management, power down trap
  • TFTP firmware upgrade

Hardware Technical Specifications

LAN Interfaces: Five RJ45 copper IEEE 802.3u 10/100Base-TX
WAN interface: Single-mode single strand WDM transceiver Tx:1310nm/Rx:1550nm
Back LEDs: PWR, WAN, LAN1~, Status
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 - 5°C (Operating); 0 - 7°C (Storage)
Humidity: 20 - 80% non condensing (Operating); 0 - 90% (Storage)
Consumption: 4.1W
Dimensions(WxDxH): 160mm x 110mm x 36mm
Management: telnet, CLI, SNMP
Compliance: CE, FCC Class A
MTBF: 55,000 hours

Product Sheet:
