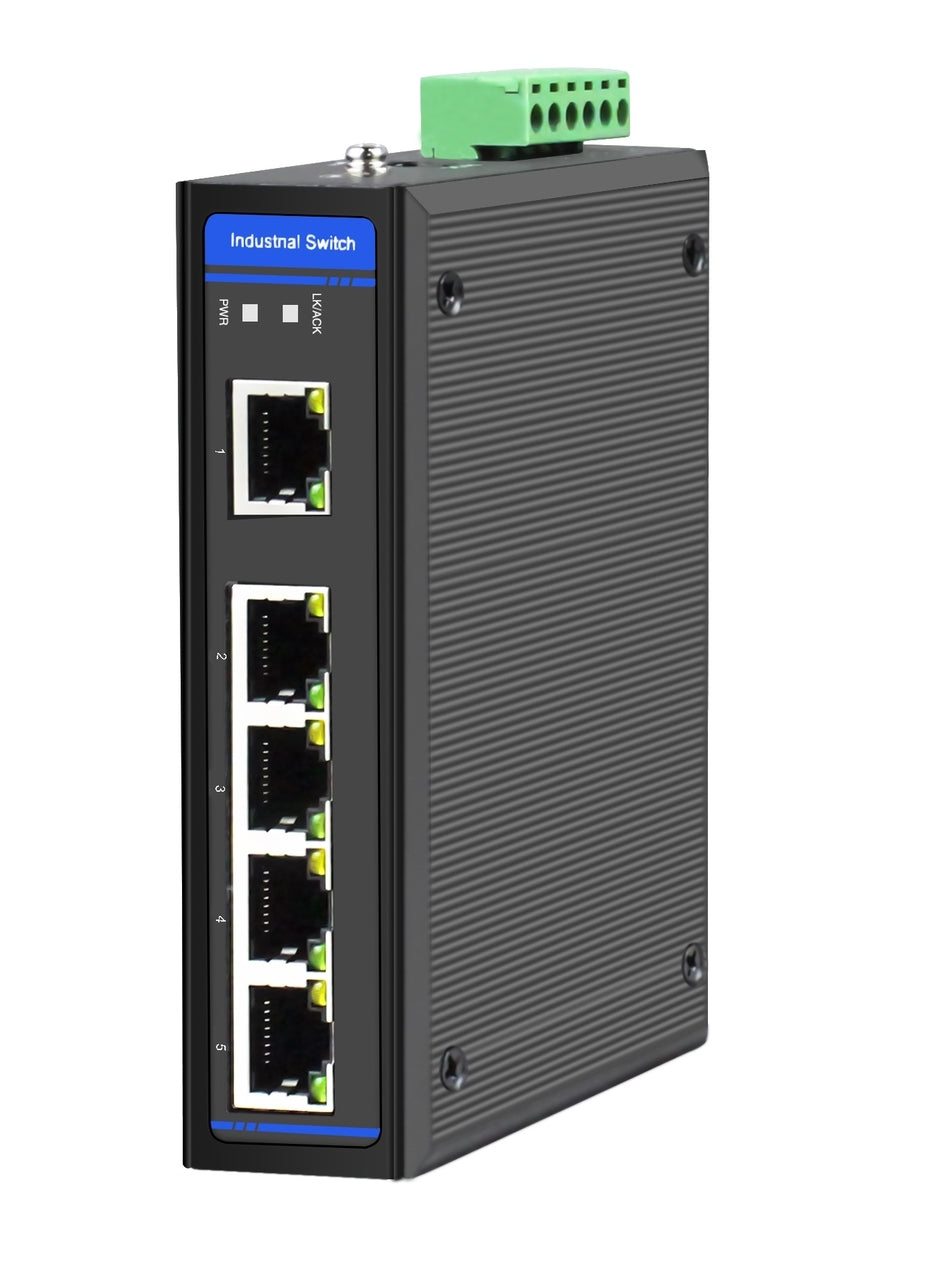

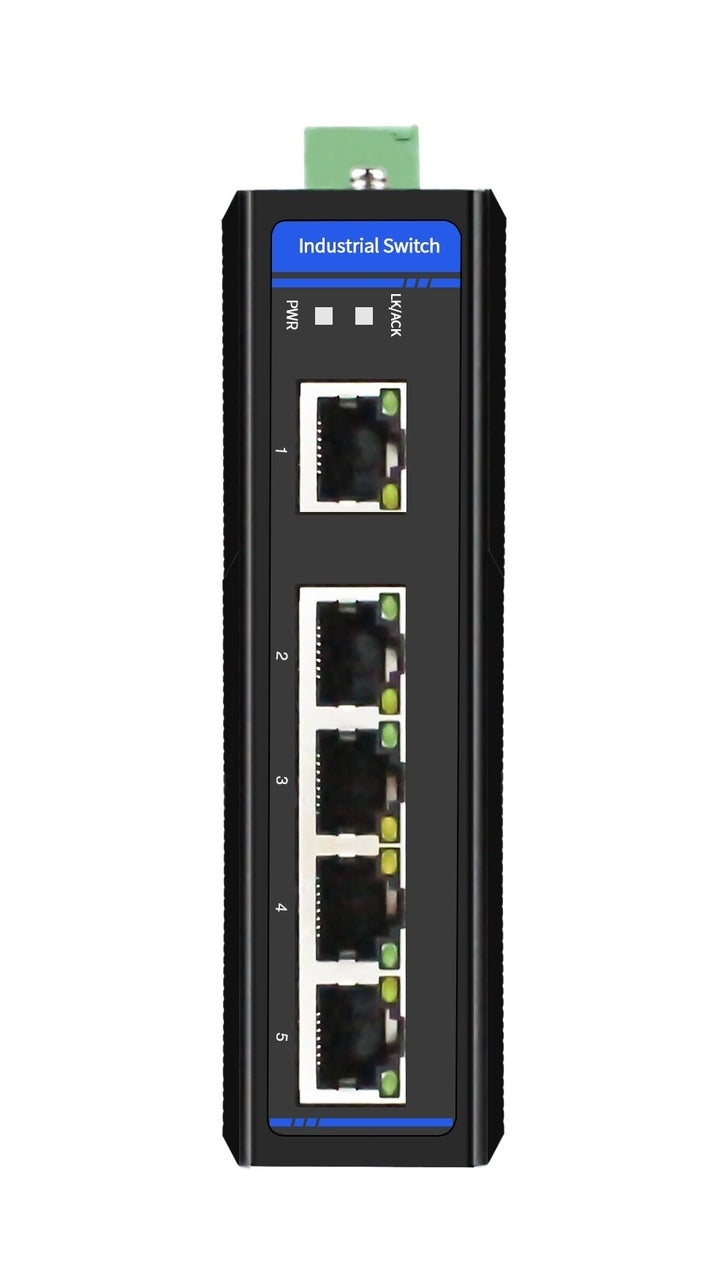

The HGW-500 is a 5-port Gigabit Ethernet switch with 10/100/1000Base-T(X) ports providing stable and reliable transmission for Industrial Ethernet connections.

HGW-500 is hardened for extreme operating temperatures: -40 to +75 Celsius.

Industrial Switches are housed in IP40 rated rugged metal housings designed to operate in difficult conditions, including mechanically and electrically extreme environments.

All Industrial switches have strong surge protection (4kV~8kV) per port, depending on models and strict compliance with IEC and EN standards for industrial-grade equipment.

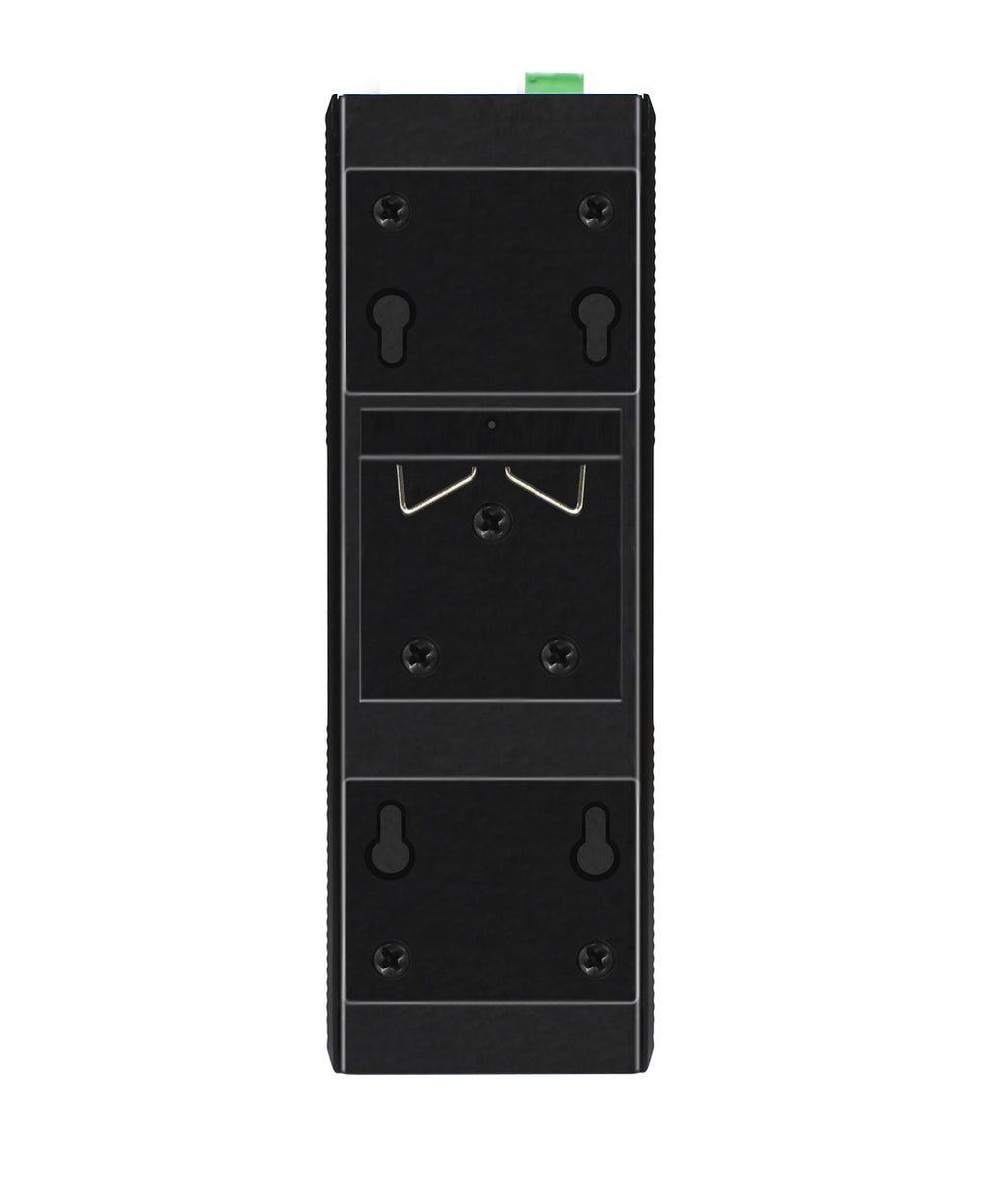

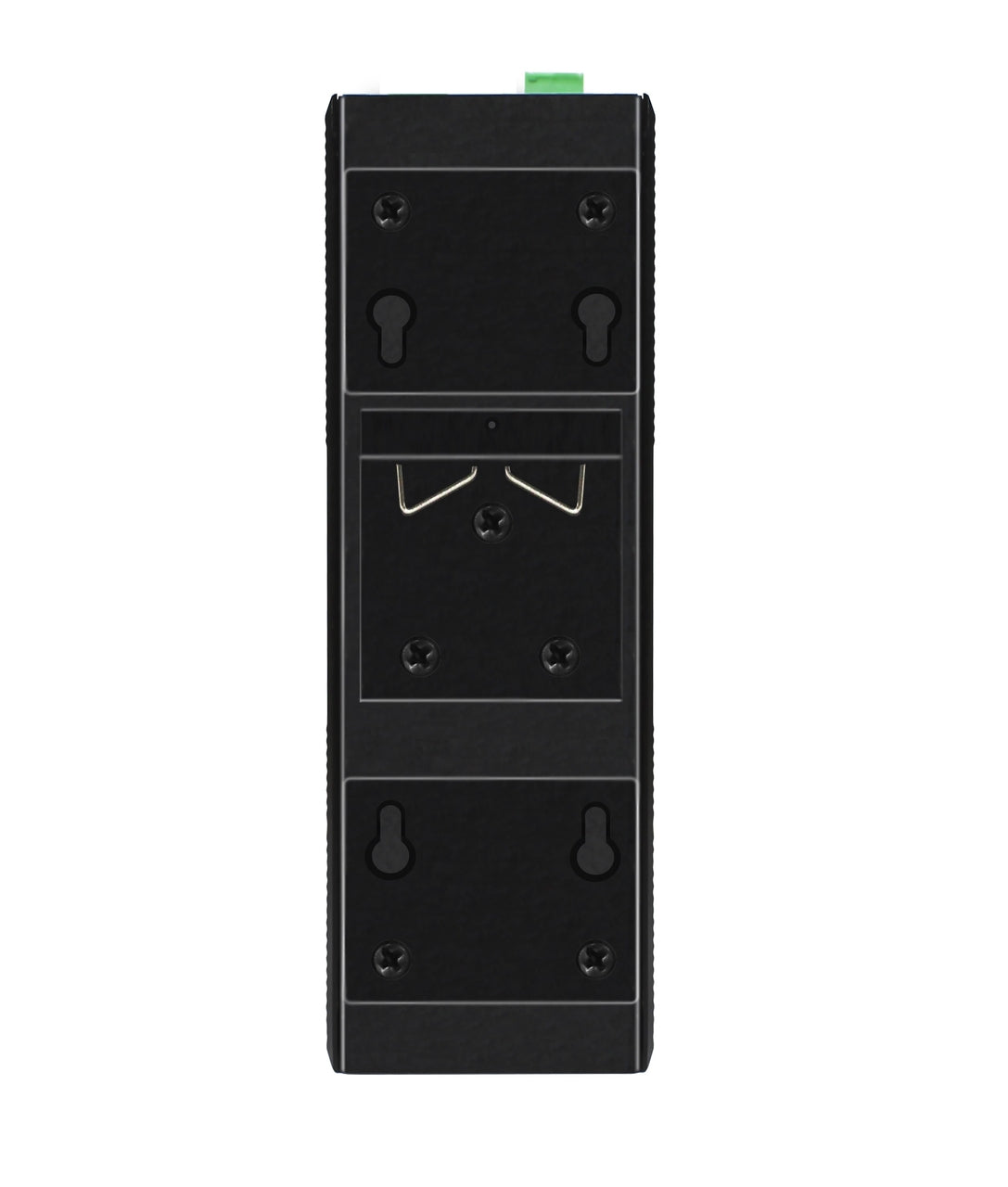

All Industrial Ethernet switches include a DIN rail mounting kit and wall mounting kit.

Features:

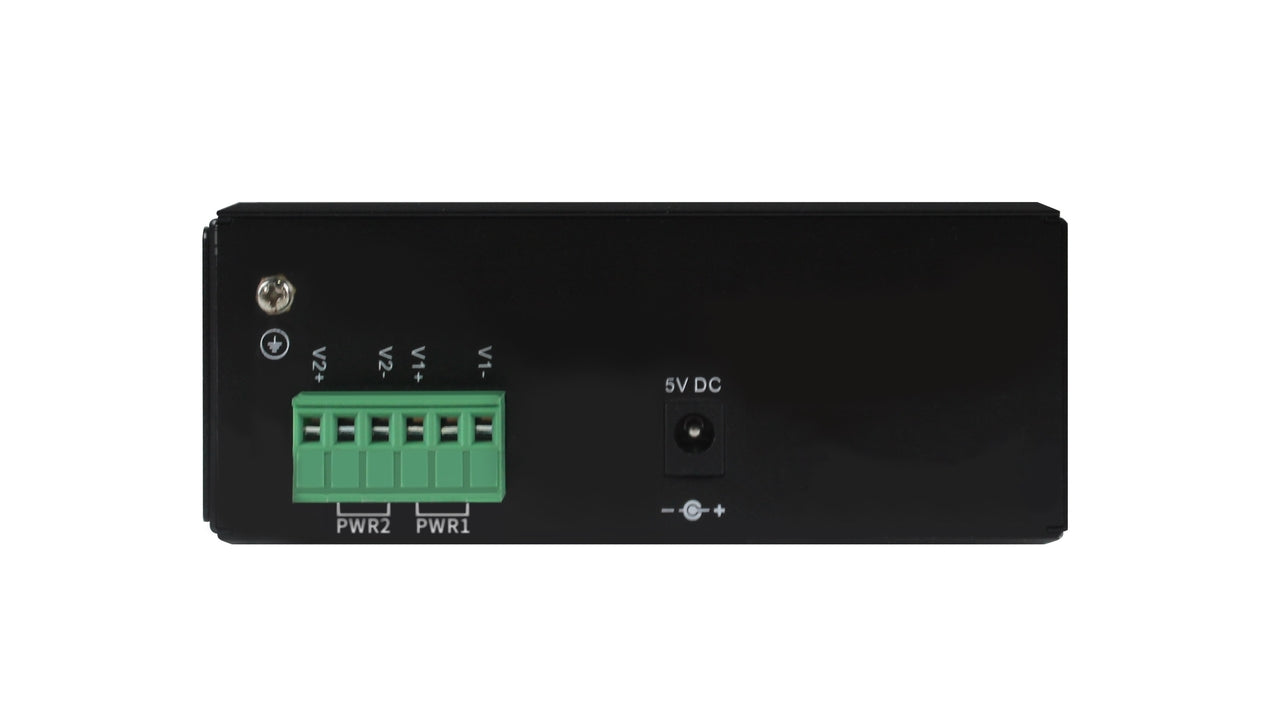

• Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
• IP40 rugged metal housing
• Wide operating temperature -40~75°C
• UL508, CE, FCC
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
• 5-Port 10/100/1000Base-T(X) copper ports

Additional information on HGW-500 model:

• Product Datasheet
• Product Installation Manual
