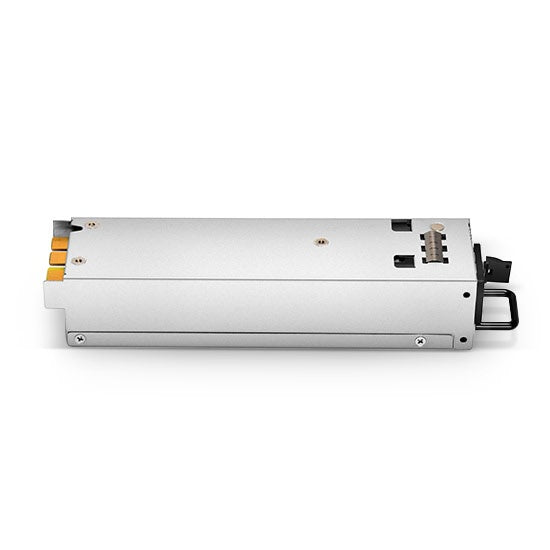

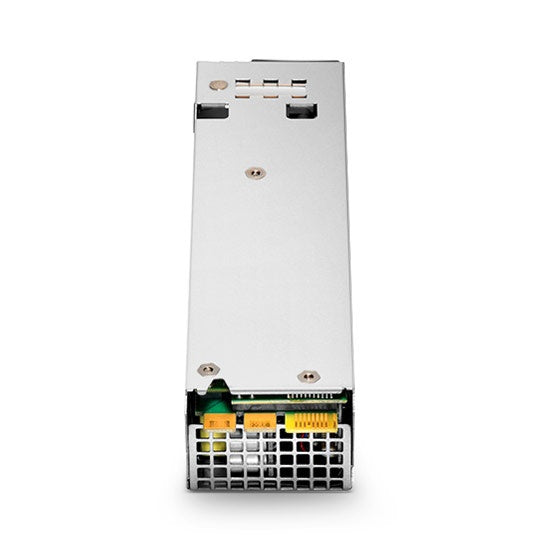

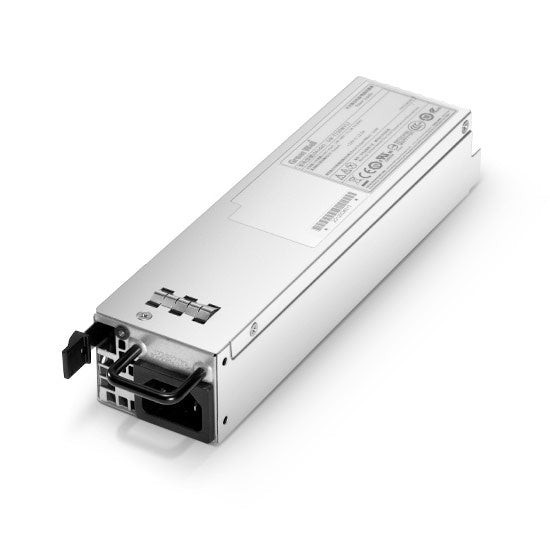

Hot-swappable AC Power Module 150W, for S5850-32S2Q, S5800-8TF12S, T5850-32S2Q and T5800-8TF12S
Hot-swappable AC Power Module 150W, for FS-S5850-32S2Q, FS-S5800-8TF12S, FS-T5850-32S2Q and FS-T5800-8TF12S
The FS-GW-T150WV12 hot-swappable AC power supply modules are designed to be compatible with the FS-S5850-32S2Q, FS-S5800-8TF12S, Ethernet Switches and FS-T5850-32S2Q, FS-T5800-8TF12S TAPs.
You can install it without powering off the switch or disrupting the switching function.
The AC power supplies in FS-S5800-8TF12S, Ethernet Switches and FS-T5850-32S2Q, FS-T5800-8TF12S TAPs give an output of 150W and support both low line voltage (100–120 VAC) and high line voltage (200–240 VAC).
They provide a low-cost, simple solution to the problem of a failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switching device and maximize the availability of the switching device.
Specifications
Input Voltage Range: 90-264VAC
Input Current: 1.5-3A
Output Voltage Range: 12VDC
Operating Temperature: 23℉ to 131℉ (-5ºC to 55ºC)
Operating Humidity: 5% to 95%
Output Power: 150W
Meet the Power Supply Requirements of the Switch
The GW-T150WV12 AC power supply module is compatible with the S5850-32S2Q, S5800-8TF12S, Ethernet Switches and T5850-32S2Q, T5800-8TF12S TAPs.

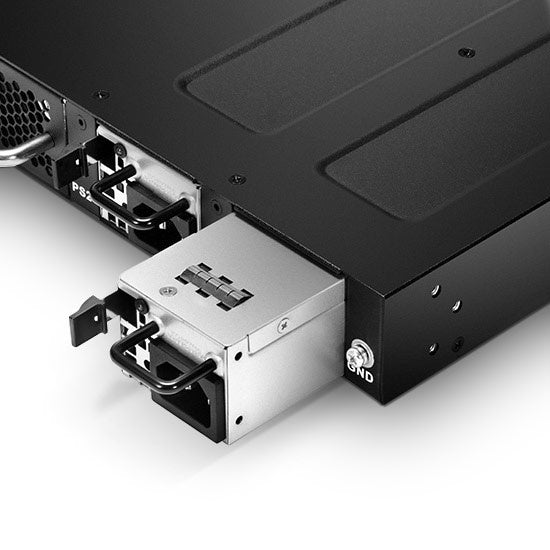

Hot-swappable Redundant Modules to Stay Online 24/7
The 1+1 hot-swappable AC power supply modules allow the users to install it without powering off the switch or disrupting the switching function.
