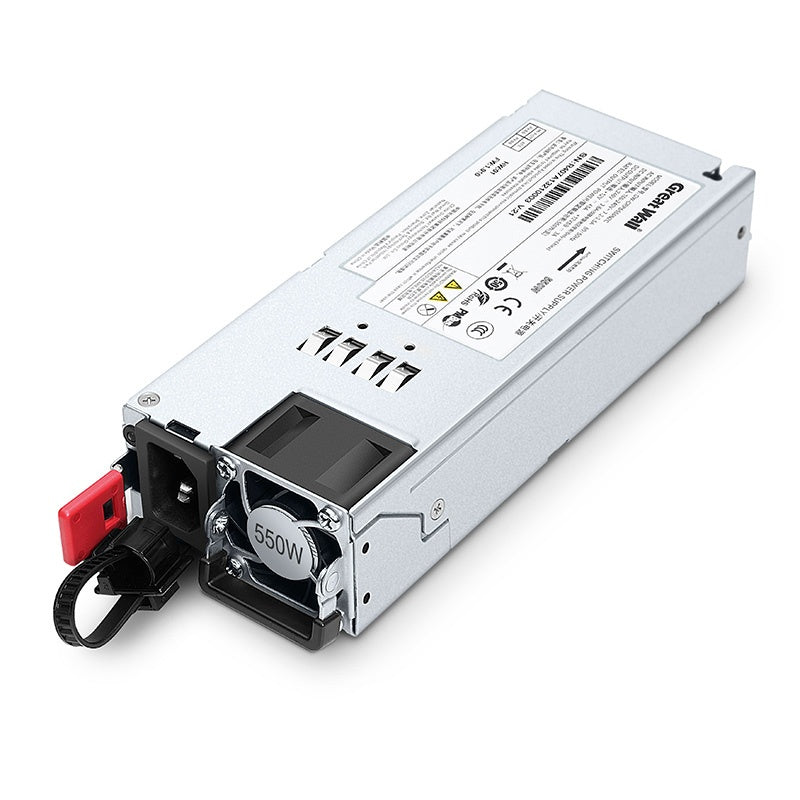

Hot-swappable AC Power Module 550W, for FS-N5860-48SC, FS-N8560-48BC and FS-N8560-32C

The FS-GW-CRPS550N2C hot-swappable AC power supply modules are designed to be compatible with the FS-N5860-48SC, FS-N8560-48BC and FS-N8560-32C Ethernet Switches. You can install it without powering off the switch or disrupting the switching function.

The AC power supplies in FS-N5860-48SC switch give an output of 550W and supports both low line voltage (100–120 VAC) and high line voltage (200–240 VAC). They provide a low-cost, simple solution to the problem of a failure of the internal power supply of an Ethernet switch which can result in the shutdown of that switching device. With the power modules, the switch reliability can be improved greatly.

Specifications

• Input Voltage Range: 100-240 V

• Input Current: 3.5A-7.2A

• Output Voltage Range: 12 V

• Operating Temp.: 0 to 55° C (32 to 131° F)

• Operating Humidity: 10%-85% Max

• Output Power: 550W

Meet the Power Supply Requirements of the Switch
The GW-CRPS550N2C AC power module is suitable for N5860-48SC, N8560-48BC and N8560-32C switches.

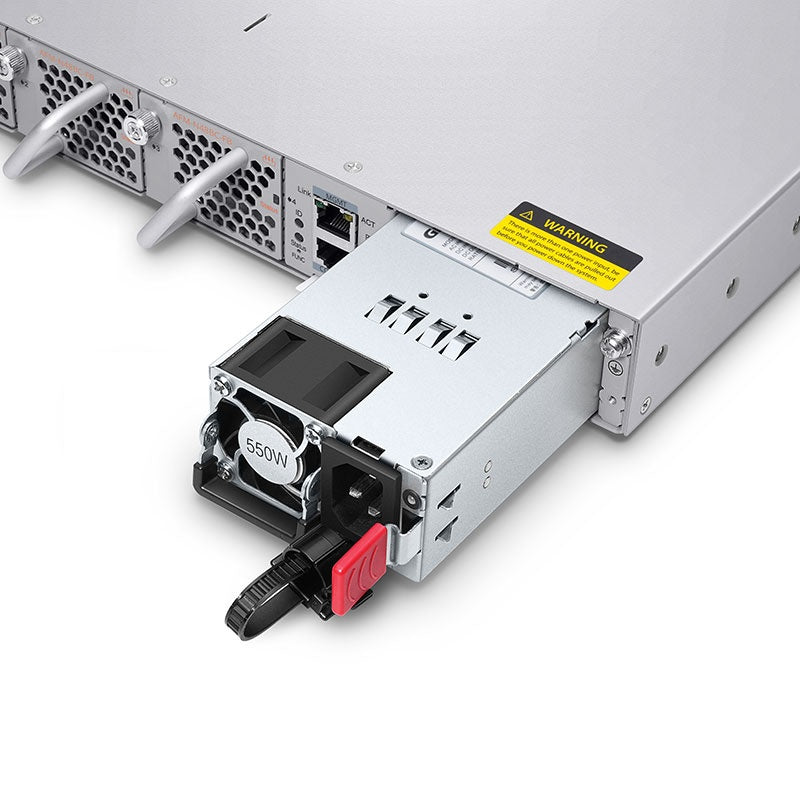

Hot-swappable Redundant Modules to Stay Online 24/7
The 1+1 hot-swappable AC power supply modules allow the users to install it without powering off the switch or disrupting the switching function.
