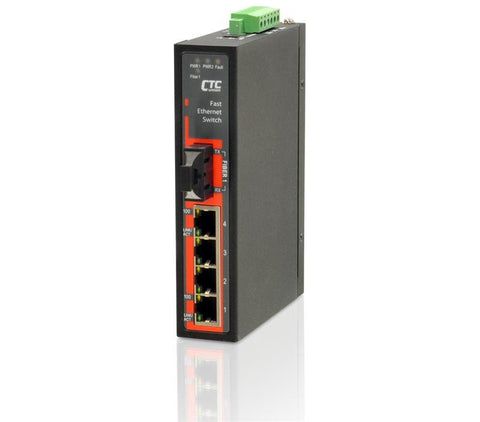

IFS-401F-E-SC030 - 4+1 port Fast Ethernet Industrial singlemode fiber switch, DIN rail mount, -40 to +75 Celsius

CTC Union Part No.: IFS-401F-E-SC030

  • $ 260.00 or



Product description
The IFS-401F series are 5-port Ethernet switches with 4-port 10/100Base-T(X) and 1-port 100Base-FX optical fiber that provide stable
and reliable transmission for Industrial Ethernet connections. A relay output of power-failures warning and broadcast storm
protecting functions can provide network engineers useful information to prevent network failures. Switches are designed for harsh
industrial environments and comply with FCC, UL, CE and EN50121-4 standard as well as comply with industrial grade high EMS
protection. The IFS-401F switches use robust mechanical and components provide long MTBF. Models are available for standard operating temperature range models (-10 ~ 60°C) and wide operating temperature range models (-40 ~ 75°C).

All Industrial Ethernet switches include a DIN rail mounting kit and a small power jack adapter for optional external AC adapter.
The IFS-401F-E-SC030 model has one 100Base-FX single-mode port reaching up to 30Km on 9/125um fiber. The optical connector is SC type.

Features
  • Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
  • IP30 rugged metal housing
  • Wide operating temperature -40~75°C (IFS-401F-E only); -10~60°C for standard model
  • UL508, CE, FCC
  • Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
  • 4-Port 10/100Base-T(X) copper ports and 1 x 100Base-FX single-mode port SC 30Km
