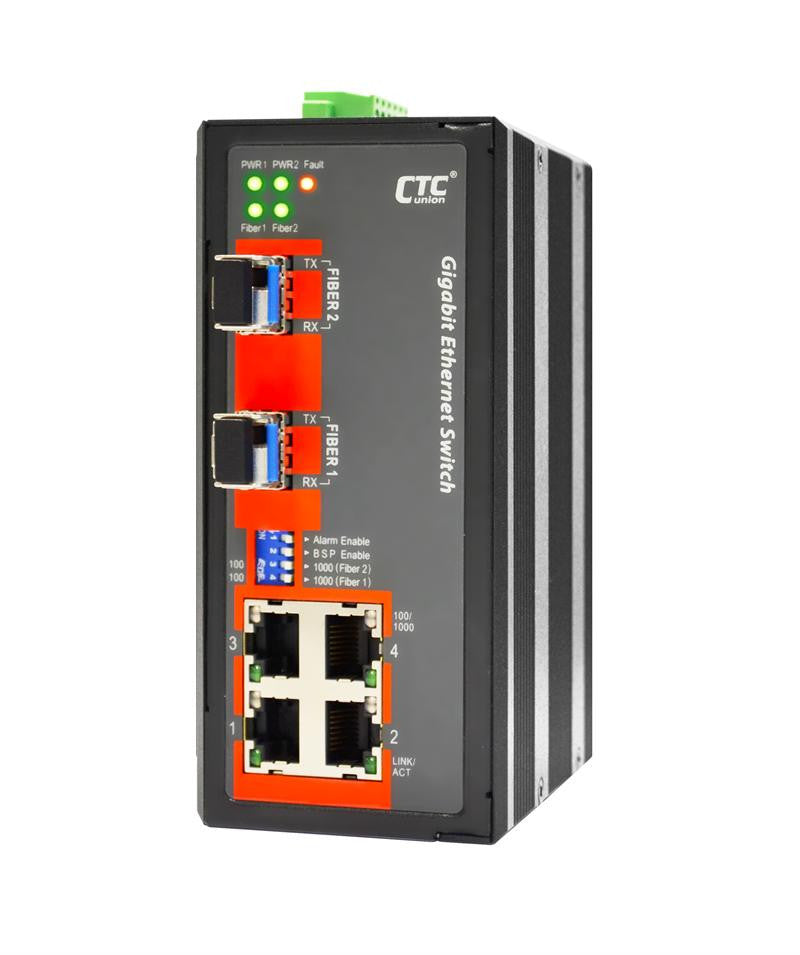

IGS-402S-E - 4 copper + 2 SFP port Gigabit Ethernet Industrial switch, DIN rail mount, -40 to +75 C temp
Move your mouse over image or click to enlarge

IGS-402S-E - 4 copper + 2 SFP port Gigabit Ethernet Industrial switch, DIN rail mount, -40 to +75 C temp

CTC Union Part No.: IGS-402S-E

  • $ 370.00 or


Product description
The IGS-402S-E is a 6-port Ethernet Gigabit switch with 4 10/100/1000Base-T(X) ports and 2 100/1000Base-X SFP slots, providing stable
and reliable transmission for industrial Ethernet connections. Switch supports IEEE 802.3/802.3u/802.3x/802.3ab, full/half-duplex,
MDI/MDI-X auto-sensing, making it ideal for providing an economical high-bandwidth solution for an industrial Gigabit Ethernet network.
Switchable 100Base SFP or 1000Base SFP ports can be set up easily using the DIP switches located on the Front panel.

The IGS-402S-E switch has built-in relay warning function for
alerting power failures; providing broadcast storm protection function to eliminate the broadcast storming in your networks. The
switches can be installed easily on a DIN-Rail or Wall mounted. IGS-402S-E has a wide operating temperature (-40 ~ 75°C) being especially designed
for industrial harsh environment applications.

Features

  • Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
  • IP30 rugged metal housing
  • Wide operating temperature -40~75°C (IGS-402S-E only)
  • UL508, CE, FCC, UL60950-1
  • Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
  • 4-Port 10/100/1000Base-T(X) copper and 2 x 100/1000Base-X SFP transceiver ports
