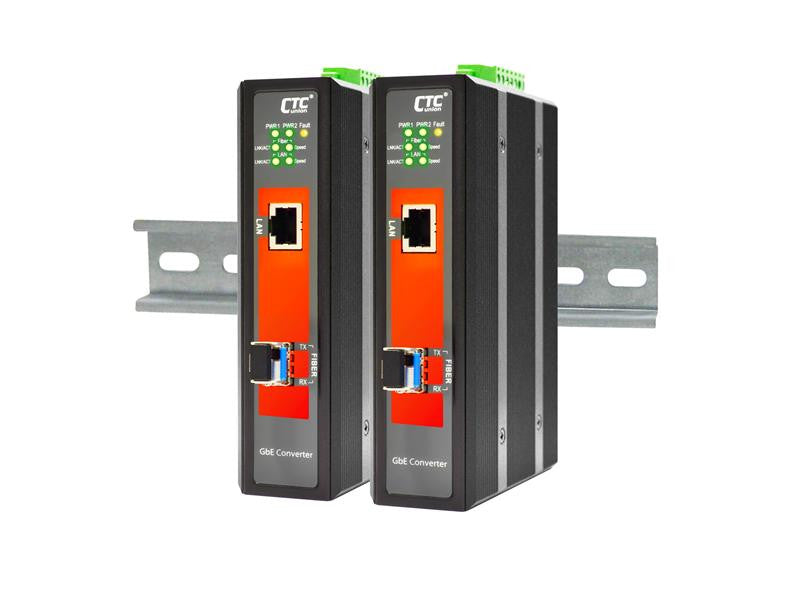

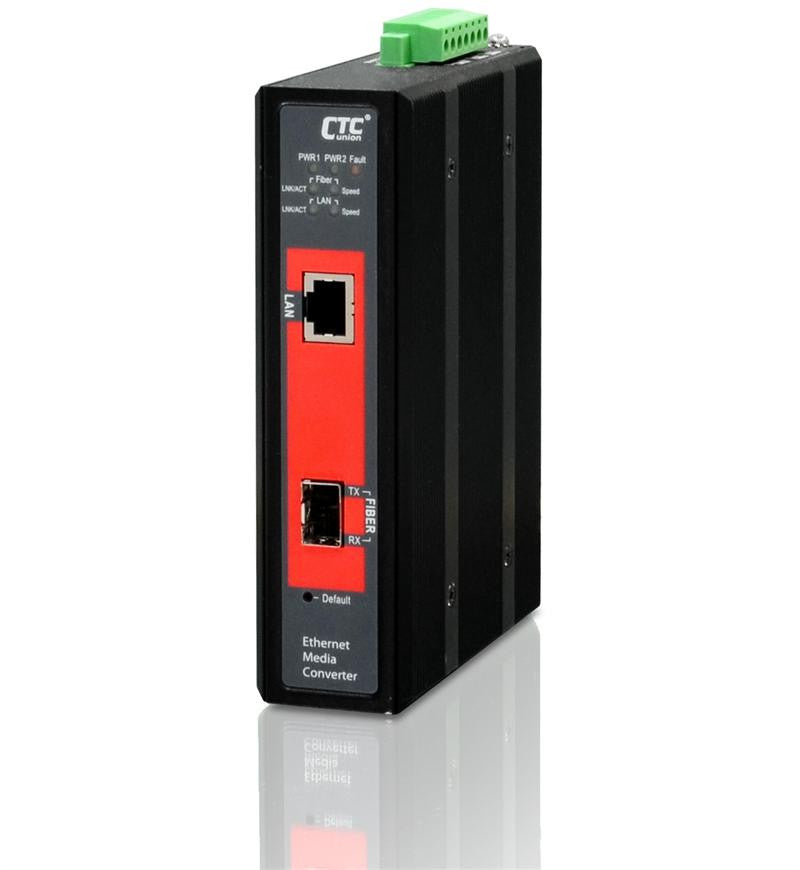

IMC-1000MS-E - Managed Gigabit Ethernet 10/100/1000Base-T to SFP slot industrial fiber media converter, 2.5kV isolation, -20-75 Celsius
Move your mouse over image or click to enlarge
IMC-1000MS-E - Managed Gigabit Ethernet 10/100/1000Base-T to SFP slot industrial fiber media converter, 2.5kV isolation, -20-75 Celsius IMC-1000MS-E - Managed Gigabit Ethernet 10/100/1000Base-T to SFP slot industrial fiber media converter, 2.5kV isolation, -20-75 Celsius

IMC-1000MS-E - Managed Gigabit Ethernet 10/100/1000Base-T to SFP slot industrial fiber media converter, 2.5kV isolation, -20-75 Celsius

CTC Union Part No.: IMC-1000MS-E

  • $ 399.00 or


Product description

IMC-1000MS-E is a managed Gigabit Ethernet media converter that support conversion between electrical 10/100/1000Base-T and optical 100/1000Base-X Ethernet. Housed in rugged DIN rail or wall mountable enclosures, this converter is designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. The converter is Web Smart managed with an easy to use Web user interface for OAM&P (Operation, Administration, Maintenance & Provisioning), including bandwidth control, duplex, speed, and VLAN configuration. The converter is IEEE802.3ah OAM compliant, making it able to be linked to any 802.3ah compliant fiber switch to support loop back and dying gasp functions.

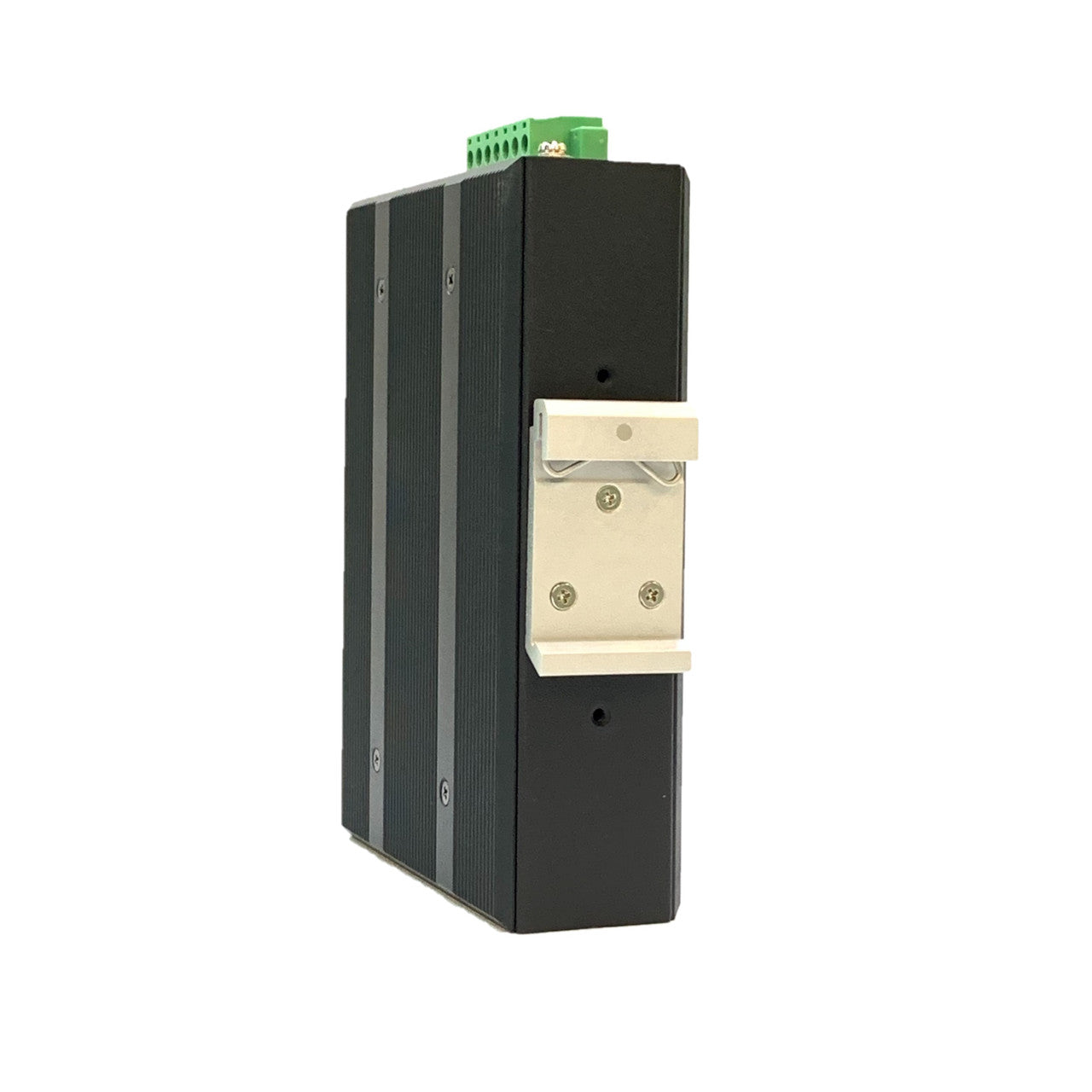

Industrial designed converters feature rugged design with metal housings or wall mounting for DIN Rail mounting, highly reliable electrical design to support very high MTBF (mean time between failure), enhanced safety and surge protection, better EMS (Electro Magnetic Susceptibility), as well as expanded operating temperature ranges. The IMC-1000MS media converter is available in two operating temperature ranges, a standard -10° to 60°C model range or an extended -20° to 75°C range.

  • Conversion between 10/100/1000Base-T and 100/1000Base-X Fiber cable interface
  • Supports Dual Rate (100/1000) SFP for selectable Fast or Gigabit speed on fiber
  • Redundant dual DC input power 12/24/48VDC (9.6 ~ 60VDC)
  • IP30 rugged metal housing
  • Wide operating temperature -20~75°C (IMC-1000M-E, IMC-1000MS-E )
  • UL60950-1, CE, FCC, RailWay traffic EN50121-4 certification
  • Industrial grade EMS, EMI EN61000-6-2, EN61000-6-4 certification
  • RMON counters
  • Supports Jumbo frame 9K bytes packet
  • Ingress/Egress bandwidth control
  • Supports IEEE802.3ah OAM management (In-band management)
  • Remote loop back test
  • Dying gasp (remote power failure detection)
  • SNMP alarm trap for power loss and port link down
  • Auto Laser Shutdown (ALS) (IMC-1000MS, IMC-1000MS-E)
  • Digital Diagnostic DDM for SFP Support
  • Web management on stand-alone.
  • Supports 16 IEEE802.1Q Tag VLAN Group
  • SmartView Management System

Technical specifications
Interfaces: RJ45 10/100/1000Base-TX port and SFP 100/1000Base-X fiber port
Operating wavelength: according to SFP used
Operating distance: according to SFP used
Optical connector: based on SFP module, LC or SC(only for BiDi modules)

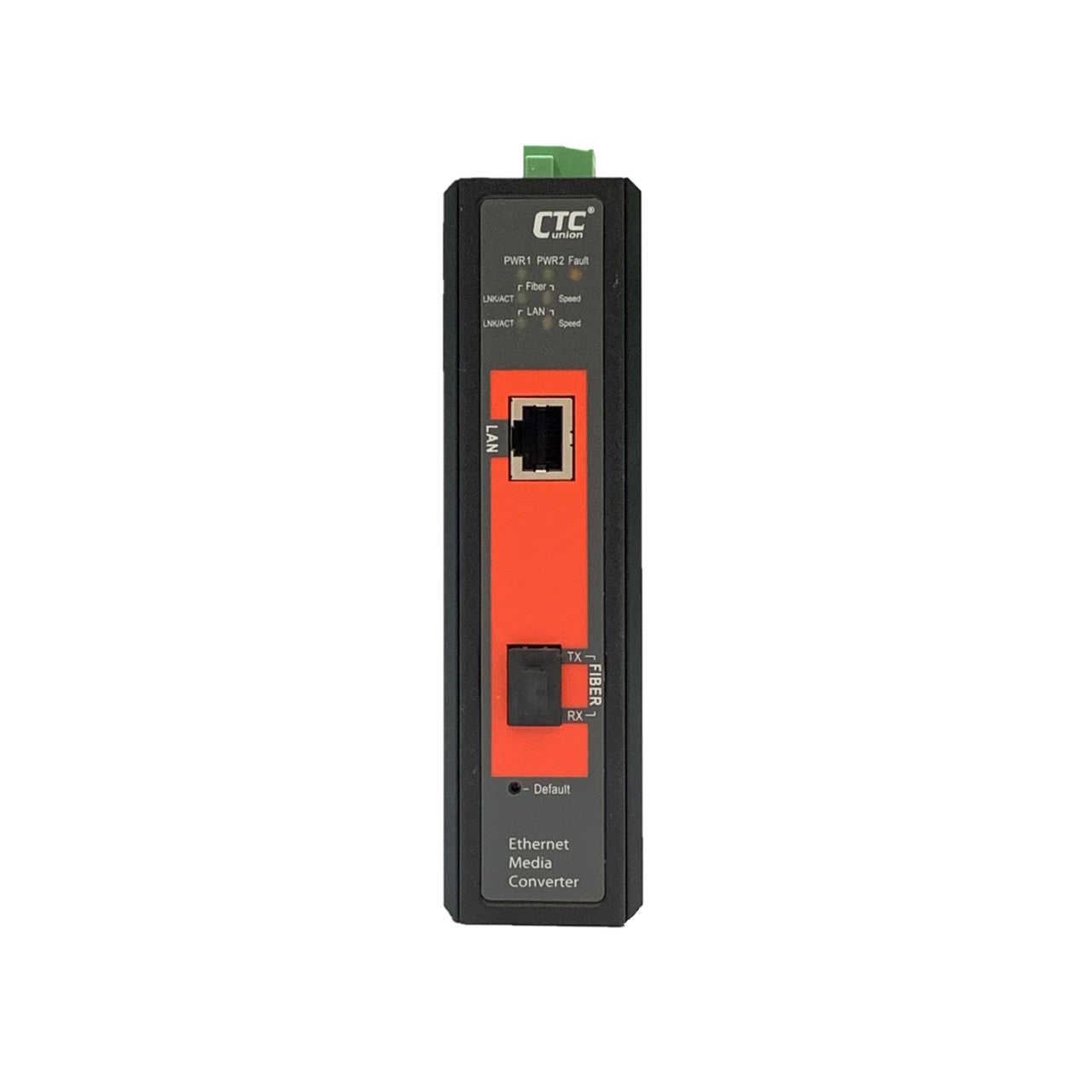

Front LEDs: PWR1, PWR2, Fault, Link/Act (fiber), Speed, Link/Act (copper)

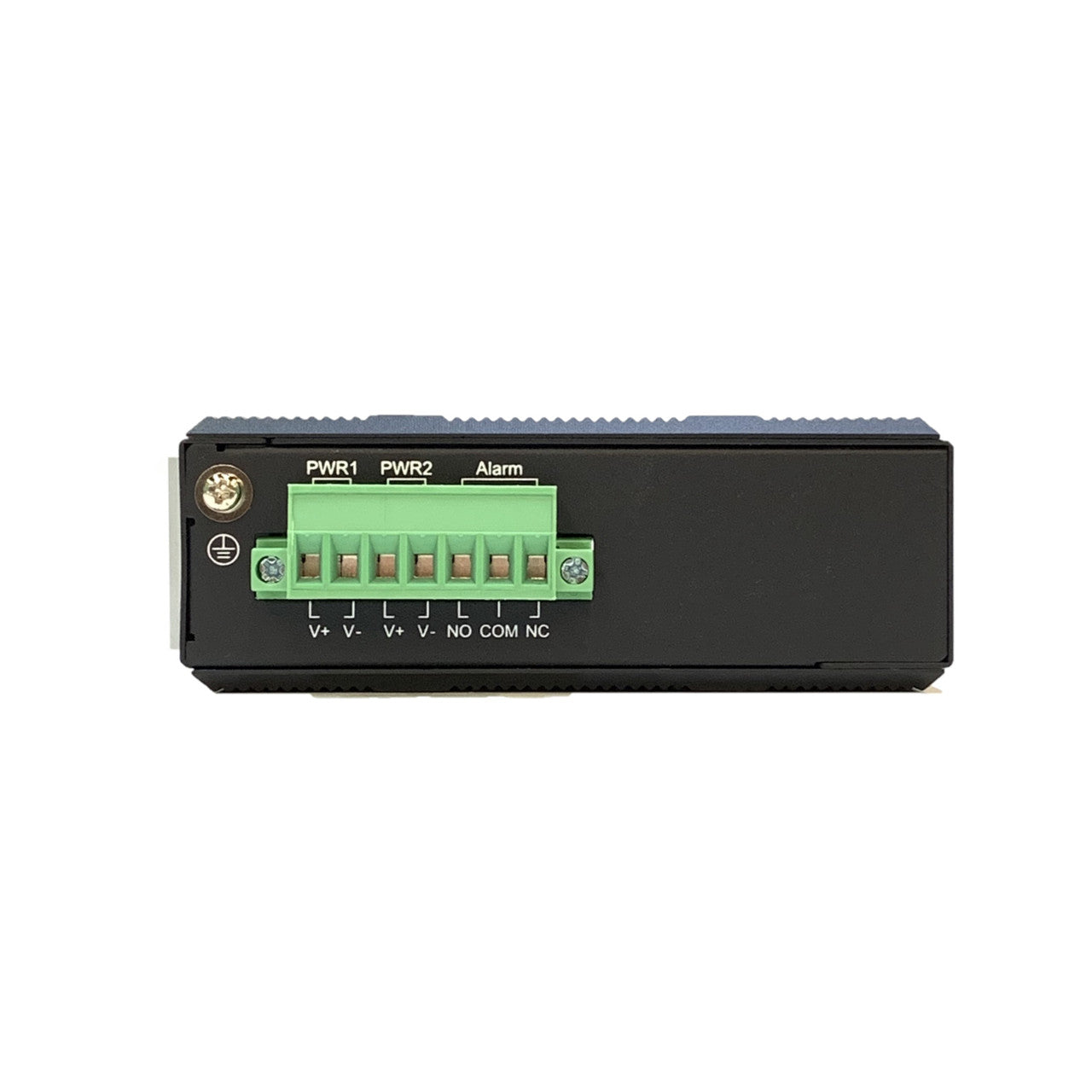

Power: dual DC 9~58V input power supplies (screw block connector)
Temperature: -10~60°C (Operating); -20~75°C (Extended Range)
Humidity: 5~95% non condensing
Consumption: less than 5W
Dimensions(WxDxH): 106 x 38.6 x 142.1mm
Weight: 370g
Compliance: CE, FCC Class A, EMI: EN55022 Class A, Vibration : IEC 60068-2-6
Shock : IEC 60068-2-27, Free Fall : IEC 60068-2-32, UL60950-1, CE, FCC, Railway traffic EN50121-4 certification
MTBF: 300,000 hours
