ISO-Switch™

Overview

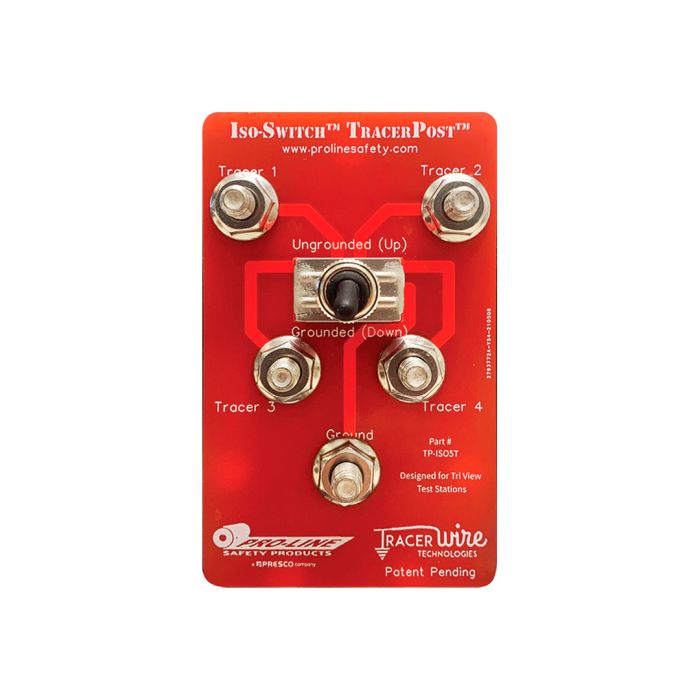

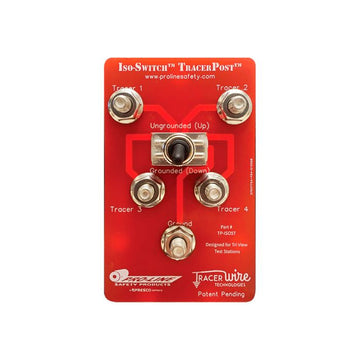

The ISO-Switch™ is an specialized component designed to streamline utility locating processes within tracer wire systems. It allows technicians to connect to multiple utility facilities simultaneously, drastically reducing the time and labor required for setup and manual connection changes.

The device functions by shunting or jumping each of the laterals with the ground through a simple switch operation. Once activated, the locator can establish a signal path to the ground and any of the four terminals connected to the laterals, eliminating the need to physically reconnect to each service individually. It is intended for integration into various access points such as Tri-View Test Stations, RhinoDome Test Stations, Hideout enclosures, and Tracer Pit Handholes.

Key Features

• Integrated Locating Switch
  Enables connection to multiple facilities via a single switch, increasing efficiency during locating tasks.
• Lateral Shunting
  Shunts or jumps laterals with the ground automatically, reducing the need for external hardware manipulation.
• Universal Integration
  Compatible with a variety of industry-standard access points, including handholes and test stations.
• Simplified Setup
  Minimizes the need for repeated manual reconnections, saving significant labor time in the field.
• Versatile Terminal Access
  Provides access to four separate terminals, facilitating comprehensive service locating.
• Robust Operation
  Engineered for utility environment performance, assisting in consistent tracer wire system maintenance.

Applications

• Utility Locating
• Tracer Wire System Management
• Underground Infrastructure Maintenance
• Service Lateral Identification

Technical Specifications

Frequently Asked Questions

What is the primary function of the ISO-Switch™?
It allows a locator to connect to multiple utility laterals at once to perform locating without the need to manually reconnect for each individual line.

How many terminals does the device support?
The ISO-Switch™ supports up to four terminals for lateral connections.

Is the switch compatible with existing test stations?
Yes, it is designed for integration into several types of enclosures, including Tri-View Test Stations, RhinoDome Test Stations, and tracer pit handholes.

Does this device require external hardware to operate?
No, it allows for shunting or jumping of laterals simply by using the integrated switch, removing the need for extra external hardware.

Can this be used for underground utilities?
Yes, it is specifically designed to work within tracer wire systems for locating underground infrastructure.
