Isolation Lever Grounded Locate Plate - Added to RhinoDome Test Station

Overview

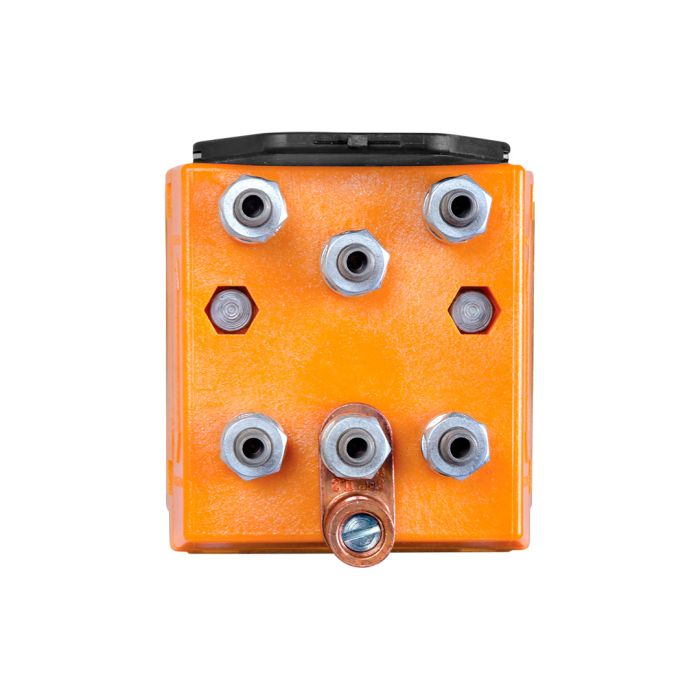

The Isolation Lever Grounded Locate Plate is a specialized component designed for integration into the RhinoDome Test Station. Its primary purpose is to streamline utility locating procedures by providing technicians with secure, immediate access to grounding and bonding points without the need to remove hardware.

This station component is engineered for durability, utilizing a combination of tin-plated brass and high-strength, engineering-grade thermoplastic. By simplifying the connection process to a single lever movement, it allows field locators to quickly attach a locating transmitter clip, significantly reducing labor time and potential damage to the station assembly.

Key Features

• Integrated Isolation Lever
  Allows for a single, quick lift of the lever to isolate connections, saving time during utility locating.
• Robust Material Construction
  Constructed from tin-plated brass and engineering-grade thermoplastic for long-term corrosion resistance and structural integrity.
• Optimized Size
  Features a compact profile of 2.75 inches in height and 2.4375 inches in length for seamless fitment within the test station.
• Standard Mounting
  Equipped with 1/4-inch ring terminals for compatibility with standard industry mounting hardware.
• Simplified Workflow
  Eliminates the repetitive removal of bonding and grounding hardware during transmission testing.
• Field-Ready Design
  Specifically designed for efficient, repetitive use in OSP and underground utility testing environments.

Applications

• Utility line locating
• Cable and pipe grounding identification
• Outside plant (OSP) test station management

Technical Specifications

Frequently Asked Questions

What is the primary function of the isolation lever?
The lever is used to isolate the connection to a cable or pipe, allowing technicians to place a locating transmitter clip without removing existing grounding hardware.

Is this plate compatible with all RhinoDome stations?
This specific part (DOMETSINSERT9125) is an insert designed to be added to existing RhinoDome Test Stations.

What materials are used in the construction?
The assembly is manufactured using tin-plated brass for conductivity and engineering-grade thermoplastic for durability.

What size mounting holes are provided?
The ring terminals are designed with 1/4-inch standard mounting holes.

Does this include the full station?
No, this is the isolation lever grounded locate plate insert component.
