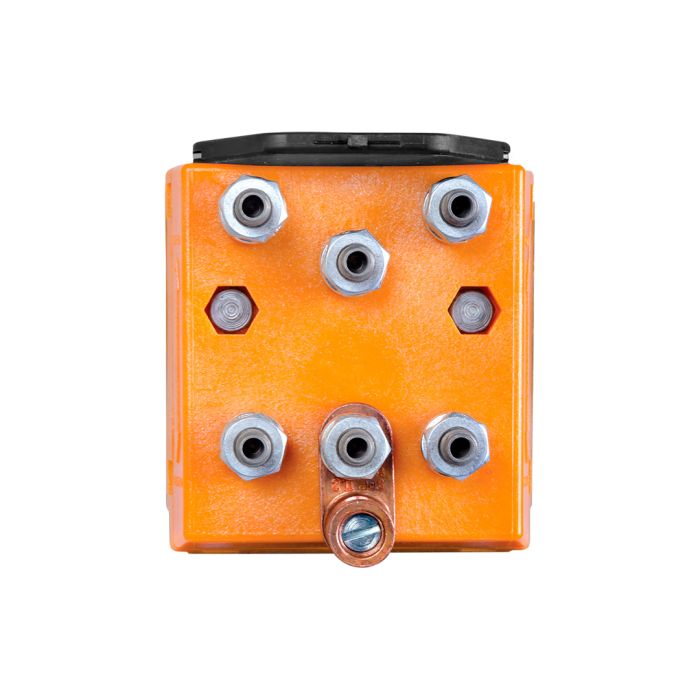

Isolation Lever (Sold Separately)

Overview

The Isolation Lever provides streamlined access for utility locating technicians by simplifying the process of connecting locating equipment. Designed for test stations, this component eliminates the need to manually remove bonding and grounding hardware during standard maintenance or locate procedures.

By using this lever, technicians can quickly isolate the connection to a cable or pipe. A single lift of the lever allows for the immediate placement of a locating transmitter clip on the terminal, significantly reducing setup time while maintaining secure electrical contact.

Key Features

• Efficient Locating
  Allows for a quick lift of the lever to isolate connections, saving time during utility location.
• Durable Construction
  Manufactured using tin-plated brass and engineering-grade thermoplastic for long-term usage.
• Simplified Access
  Eliminates the requirement to remove permanent bonding and grounding hardware for testing.
• Standard Compatibility
  Features mounting holes for standard 1/4 inch ring terminals.
• Compact Design
  Optimized dimensions of 2.75 inches in height and 2.44 inches in length to fit standard test station configurations.

Applications

• Utility Locating
• Cable and Pipe Tracing
• Grounding and Bonding Test Stations

Technical Specifications

Frequently Asked Questions

What is the purpose of the Isolation Lever?
It provides a quick-access point for utility locating transmitters, allowing you to isolate cable or pipe connections without removing existing bonding hardware.

What materials is this product made of?
It is constructed from tin-plated brass and engineering-grade thermoplastic.

What are the dimensions of the lever?
The unit is 2.75 inches tall and 2.44 inches long.

What size terminals does this accommodate?
It is designed for use with 1/4 inch standard ring terminals.

Is this a complete test station?
No, this is the isolation lever component only.
