Overview

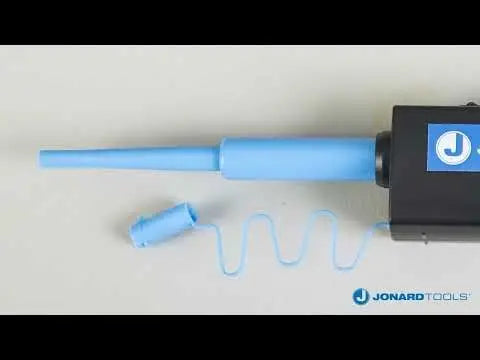

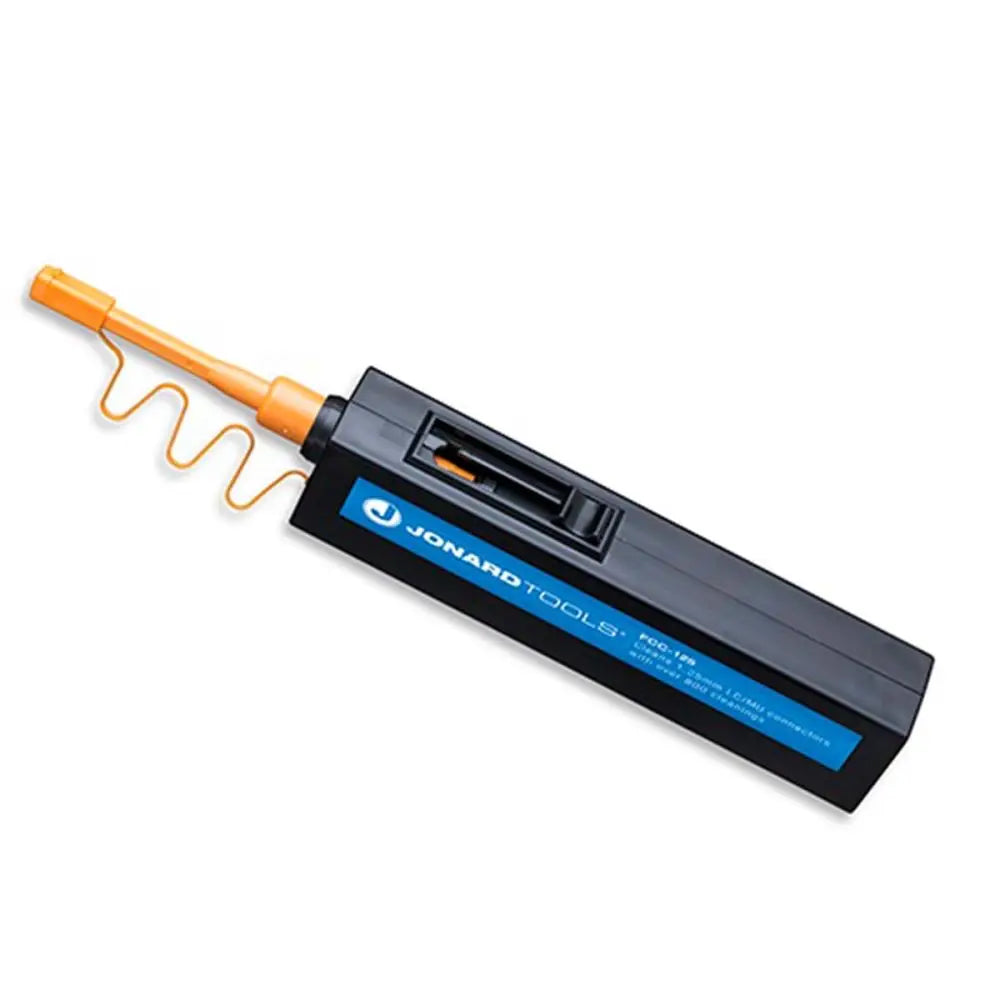

The Jonard Tools FCC-125 is a professional-grade, one-click fiber optic connector cleaner designed for LC and MU connectors. It is engineered to provide efficient cleaning for both connector end faces and fiber bulkhead adapters, making it an essential tool for fiber technicians and data center operators maintaining high-density network infrastructure.
Constructed with static-dissipative materials, this cleaner is safe for use in ESD-sensitive environments. It utilizes a lint-free, non-woven microfiber fabric that effectively removes contamination without scratching the ferrule surface. The tool is designed to support over 800 cleaning cycles, ensuring long-term utility in field service applications.
Key Features
-
High Capacity Cleaning
Capable of over 800 ferrule end face cleanings per unit, providing cost-effective maintenance. -
360° Rotational Tip
Allows for easier access and thorough cleaning of connector end faces in tight spaces. -
Extendable Nozzle
Adds 1.5 inches of reach for cleaning deep ports and high-density panels. -
Slide-Guide Technology
Features a non-slip micro tape feeder to ensure consistent tape advancement and reliable operation. -
ESD-Safe Construction
Made from static-dissipative materials to prevent electrostatic discharge damage during work. -
Lint-Free Microfiber
Utilizes specialized cleaning fabric that removes contaminants without leaving residue.
Applications
- Cleaning LC and MU fiber optic connectors
- Cleaning fiber bulkhead adapters

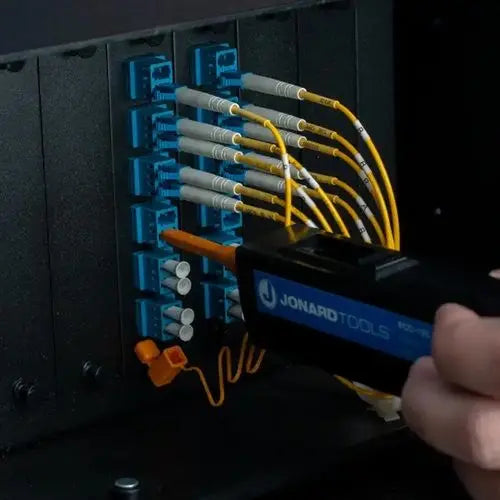

- Data center network maintenance
- Field fiber optic cable installation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | FCC-125 |
| Connector Compatibility | LC and MU (1.25mm) |
| Cleaning Capacity | 800+ cleanings |
| Material | Static-dissipative |
Frequently Asked Questions
Is this cleaner compatible with both UPC and APC connectors?
Yes, the FCC-125 is designed to clean both UPC and APC polished LC and MU connectors.
Can I replace the cleaning tape when it runs out?
The FCC-125 is a disposable, one-click unit and the internal cleaning tape is not designed for field replacement.
Is the cleaner safe for use on active fiber ports?
Always ensure the fiber is not active before cleaning to prevent potential eye injury or damage from laser output.
How do I know when the cleaning tape is finished?
The Slide-Guide mechanism will stop advancing, indicating the cleaning capacity of the unit has been reached.
Does this tool require solvents?
No, the Jonard FCC-125 is a dry cleaning tool and should be used without any solvents or cleaning agents.
