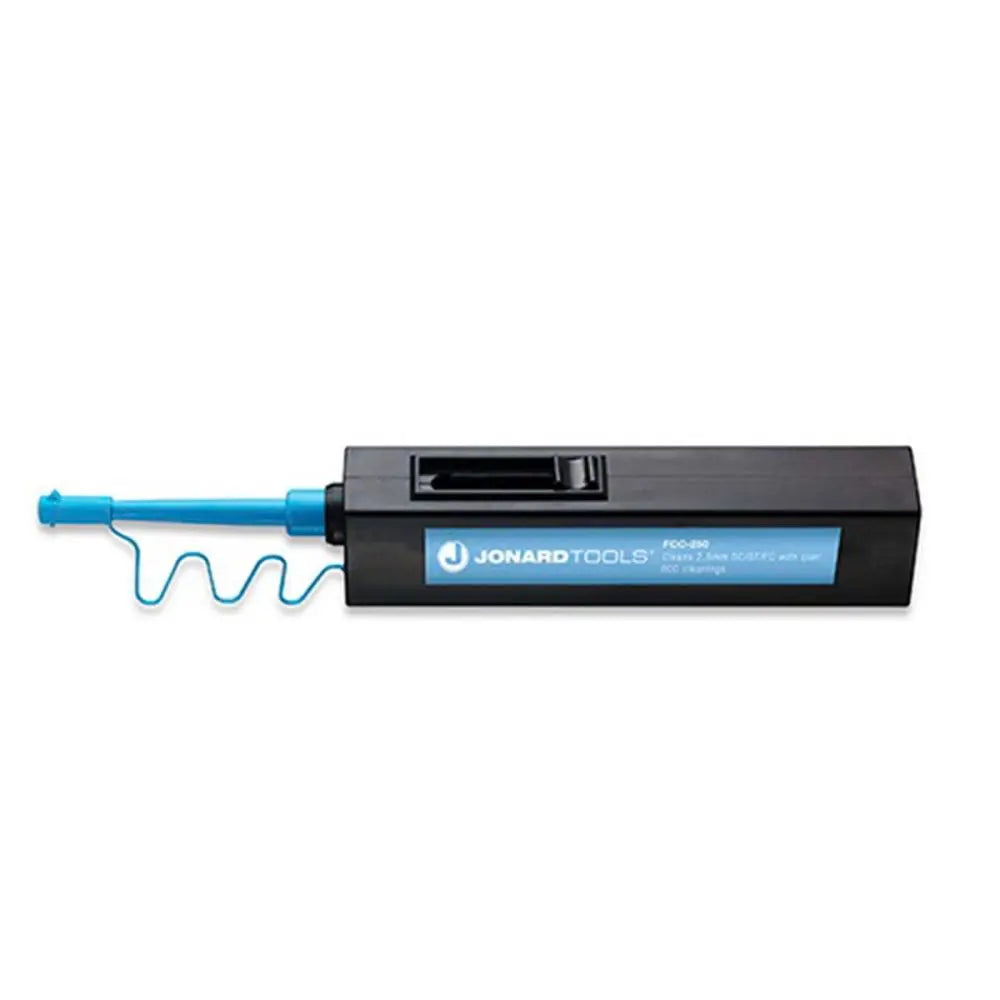

Jonard FCC-250 Fiber Connector Cleaner for SC, ST, FC, 2.5mm

Overview

The Jonard FCC-250 Fiber Connector Cleaner is a precision tool designed for one-click cleaning of fiber optic end faces. It is specifically engineered to address the fiber core area and the contact surfaces of bulkhead adapters. Compatible with 2.5mm ferrule connectors including SC, ST, and FC types, this tool provides essential maintenance for ensuring low-loss optical connections in data centers and field installations.

Constructed with a lint-free non-woven microfiber material, the cleaner effectively removes contaminants without leaving residues. The unit features an extendable nozzle that reaches up to 4 inches, facilitating access to connectors in crowded or deep-port enclosures. Its push-to-clean operation ensures consistent pressure and efficient, one-handed performance in high-density network environments.

Key Features

• 360° Rotational Tip
  The patented tip design provides wide-angle cleaning coverage, ensuring thorough removal of debris across the entire ferrule end face.
• One-Click Operation
  A simple push-to-clean mechanism allows for rapid deployment, reducing installation and maintenance time.

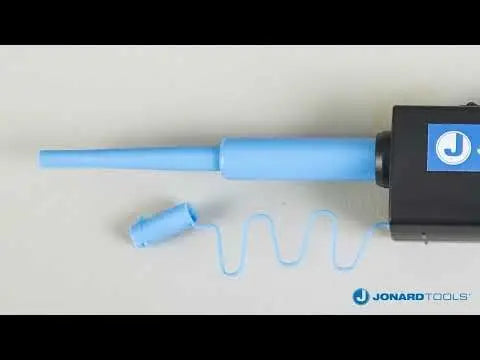

• Extendable Nozzle
  The nozzle extends up to 4 inches, enabling users to clean connectors in deep ports or narrow spaces within panels easily.
• Lint-Free Microfiber
  Uses specialized lint-free, non-woven microfiber material that prevents secondary contamination during the cleaning process.
• Slide-Guide™ Feeder
  Features a non-slip micro tape feeder to ensure smooth, controlled advancement of the cleaning ribbon.
• High Capacity
  Provides over 800 cleanings per unit, offering a long-lasting and cost-effective maintenance solution.

Applications

• Data center fiber management
• Telecommunications network maintenance
• Fiber optic patch panel cleaning
• Bulkhead adapter inspection and cleaning
• Field termination and installation

Technical Specifications

Frequently Asked Questions

Is this cleaner compatible with LC connectors?
No, the FCC-250 is designed for 2.5mm ferrules (SC, ST, FC). For LC/MU 1.25mm connectors, the Jonard FCC-125 is required.

Can the tip rotate?
Yes, it features a patented 360° rotational tip to ensure full coverage of the fiber end face.

How many cleans does one unit provide?
Each FCC-250 cleaner provides over 800 cleaning cycles.

Does it require cleaning fluid or solvents?
No, this is a dry cleaning tool that uses a specialized microfiber tape to remove contaminants without the need for additional chemicals.

What is the maximum extension of the nozzle?
The nozzle can be extended up to 4 inches for deep port access.
