Overview

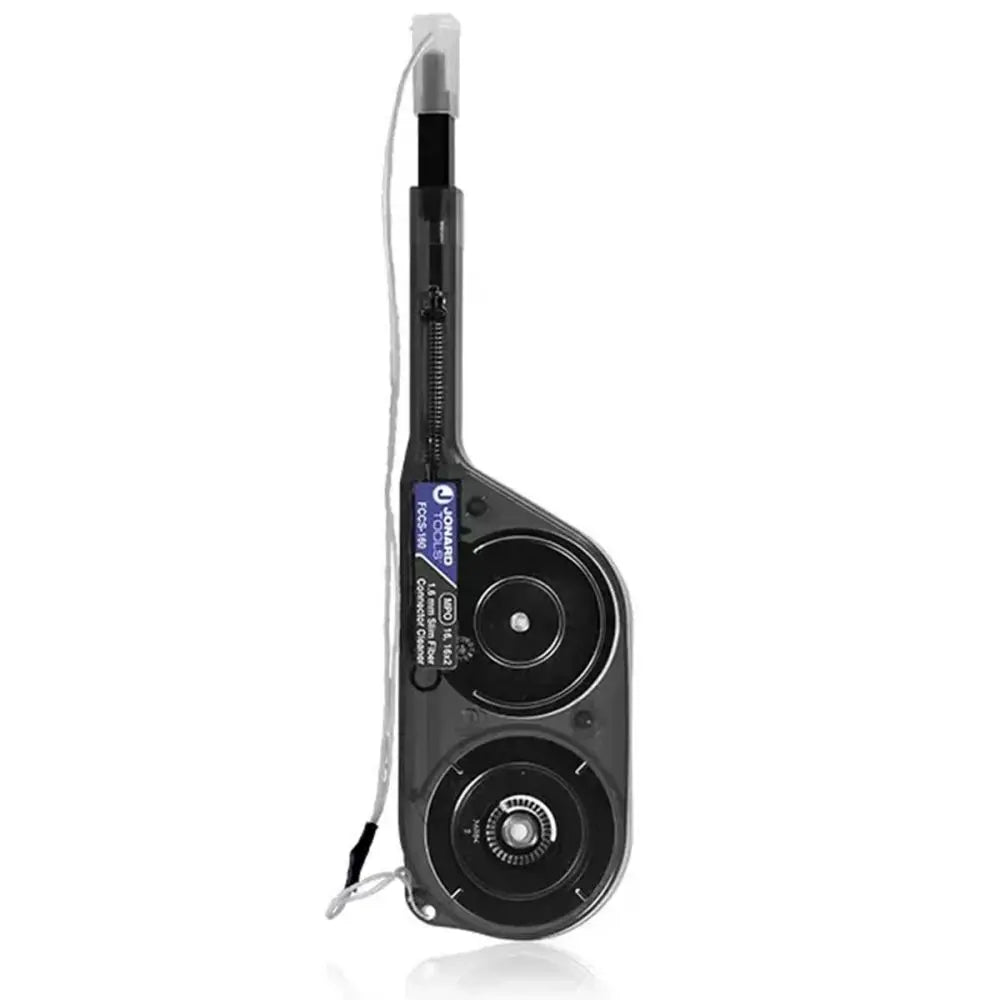

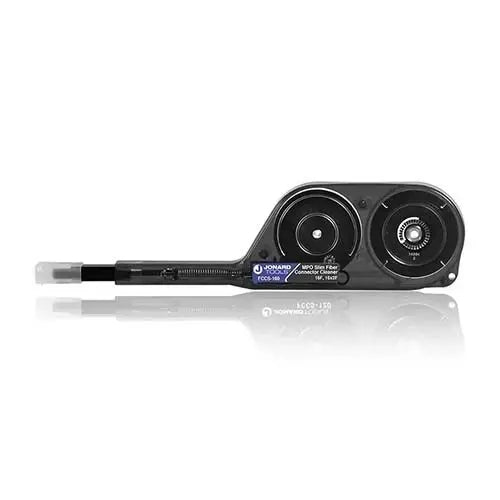

The Jonard Tools FCCS-160 is an ultra-slim one-push fiber connector cleaner engineered for high-density network environments. Its primary purpose is to maintain signal integrity by removing oil, dust, and microscopic debris from MPO-16 and 32-core (16x2) connectors. Its slim form factor allows for efficient operation in recessed adapters, cassette modules, and high-density patch panels where standard-sized cleaners may not fit.
Designed for professional use in hyperscale data centers, enterprise networks, and high-speed backbone infrastructure, the FCCS-160 features a static-dissipative housing and uses a dry, ultra-fine microfiber cleaning tape. The tool is compatible with both UPC and APC polish types, as well as male (pinned) and female (unpinned) connector configurations, ensuring broad versatility in high-density installations.
Key Features
-
Slim Design
Ultra-slim profile allows access to tightly packed adapters and recessed ports where standard cleaners fail. -
High-Density Compatibility
Specifically designed for MPO/MTP 16 and 32-core (16x2) fiber connectors. -
Versatile Polish Support
Compatible with both flat (UPC) and 8° angled (APC) polish types. -
Pinned and Unpinned Ready
Accommodates both male (pinned) and female (unpinned) fiber connector configurations. -
Easy Cleaning Process
One-push mechanism automatically advances the cleaning tape for consistent, repeatable results. -
Efficient Maintenance
Provides over 600 cleaning cycles per unit, reducing the need for frequent replacements. -
Integrated Adapter Cap
Tethered, flip-open cap allows quick switching between cleaning exposed plugs and bulkhead ports. -
Transparent Housing
Allows technicians to visually track the remaining tape supply and monitor the cleaning process.
Applications
- Hyperscale Data Centers
- Enterprise Fiber Networks
- High-Speed Backbone Infrastructure
- High-Density Patch Panels
- Cassette Modules
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | FCCS-160 |
| Fiber Connector Compatibility | MPO/MTP 16 & 16x2 (32) core connectors |
| Polish Compatibility | Flat (UPC) and 8° Angled (APC) |
| Pin Configuration | Pinned (Male) and Unpinned (Female) |
| Cleaning Method | One-push, ESD-safe microfiber tape |
| Cleaning Cycles | 600+ |
| Standards | IEC 61300-3-35 |
| Housing Material | Transparent, static-dissipative |
| Dimensions | 8" x 2" x 0" (20.32 x 5.08 cm) |
| Weight | 0.1 lb (45.4 g) |
Frequently Asked Questions
Is the FCCS-160 compatible with 12-core connectors?
No, the FCCS-160 is specifically designed for 16-core and 32-core (16x2) connectors. For 12-core connectors, the FCCS-120 model is recommended.
Can I use this cleaner on both male and female connectors?
Yes, the tool is compatible with both pinned (male) and unpinned (female) MPO connector configurations.
Does this tool require a solvent?
No, it uses a dry, ultra-fine microfiber tape system and does not require cleaning solvents.
Is the cleaning tape replaceable?
The tool is designed to provide over 600 cleaning cycles and is intended for use until the tape is exhausted.
What is the purpose of the tethered cap?
The tethered cap allows for switching between cleaning bulkhead ports (with the cap open) and exposed patch cord connectors (with the cap closed) without risk of losing the cap.
