Overview
The Jonard Tools SPC958 Test Kit is a comprehensive solution designed for fiber optic network installation and maintenance. This kit combines an optical power meter and a dual-wavelength light source to accurately measure absolute optical power and relative power loss in both single-mode and multimode fiber optic cables.
Housed in a durable blow-molded case with protective foam, the kit is intended for field use by technicians and contractors. It provides the essential tools for verifying fiber connectivity, performing loss testing, and identifying potential faults in data center, enterprise, and telecommunications environments.
Key Features
-
Dual Wavelength Light Source
Features FLS-55 light source supporting 850/1300 nm (multimode) and 1310/1550 nm (single-mode) wavelengths. -
Precise Power Meter
Intelligent FPM-50A power meter measures power levels ranging from -50 to +26 dBm. -
Broad Wavelength Calibration
Supports calibration at 850, 980, 1300, 1310, 1490, 1550, 1625, and 1650 nm wavelengths. -
Versatile Modulation
Offers four modulation output modes (CW, 270 Hz, 1 kHz, 2 kHz) for signal identification. -
Connector Compatibility
Includes adapters for standard PC and UPC FC, SC, and LC fiber connectors. -
Visual Fault Locator (VFL) Included
Kit includes a 650nm laser-powered VFL for tracing, continuity testing, and breakpoint location. -

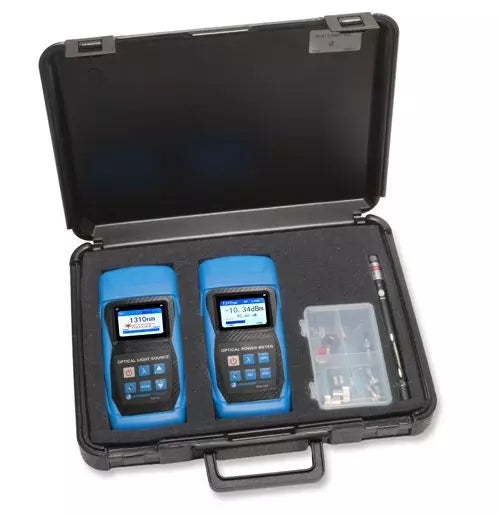

Protective Field Case
Durable blow-molded case with custom foam interior ensures equipment protection during transport.
Applications
- Fiber optic cable installation
- Network troubleshooting and maintenance
- Absolute power measurement
- Optical loss testing
- Fiber tracing and fault location

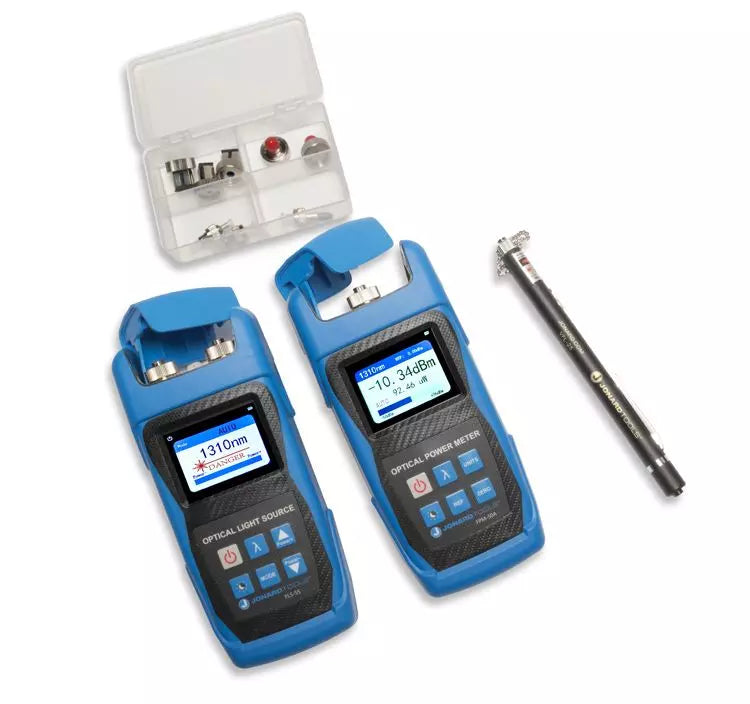

Package Contents
- FPM-50A Optical Power Meter
- FLS-55 SM/MM Light Source
- VFL-150 Visual Fault Locator Kit
- Blow Molded Carrying Case
- 4-Compartment Parts Box
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Part Number | SPC958 |
| Power Meter | FPM-50A |
| Light Source | FLS-55 |
| Power Meter Range | -50 to +26 dBm |
| Calibrated Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm |
| Case Dimensions | 12-3/8" x 8-7/8" x 2-7/8" |
Frequently Asked Questions
What fiber types can this kit test?
The kit is capable of testing both single-mode (SM) and multimode (MM) fiber cables.
Does the VFL included work on 1.25mm connectors?
Yes, the VFL-150 kit is designed to work with both 2.5mm and 1.25mm ferrule connectors.
Can the power meter be calibrated manually?
Yes, the FPM-50A power meter supports manual calibration.
What is the purpose of the modulation modes on the light source?
The modulation modes (CW, 270 Hz, 1 kHz, 2 kHz) are used to signal the power meter for identifying fibers and verifying signal integrity.
Are the connectors included?
The kit includes adapters for FC, SC, and LC style connectors for both PC and UPC polishing standards.
