Jonard Mid-Span Cable Slitter 1.2mm - 3.3mm

Overview

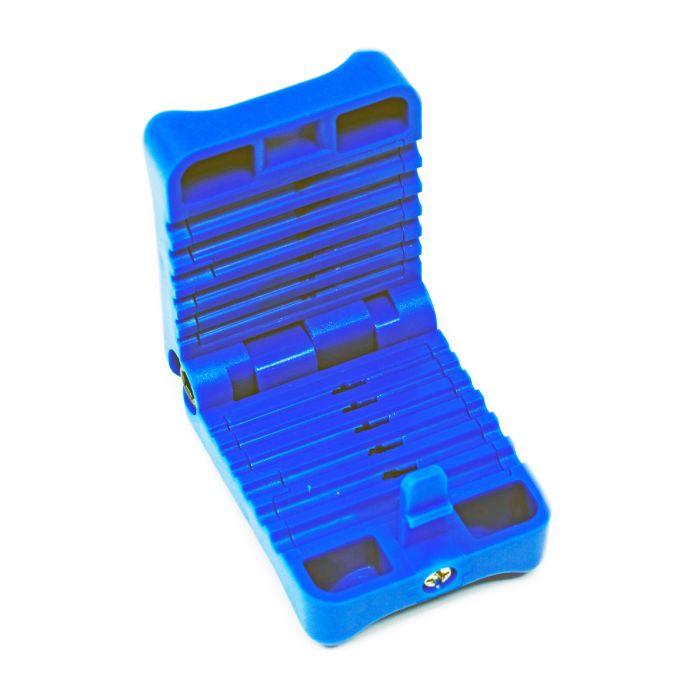

The Jonard Mid-Span Cable Slitter is a specialized tool engineered to provide efficient, safe access to optical fibers within outer jackets and loose buffer tubes. By facilitating mid-span access, it allows technicians to work on specific fibers without needing to terminate the entire cable, maintaining the integrity of the remaining fibers.

Designed for field use, this tool features six precision grooves accommodating a range of cable diameters from 1.2 mm to 3.3 mm. Its compact, ergonomic construction makes it ideal for use in space-constrained environments such as enclosures, handholes, or aerial cable runs.

Key Features

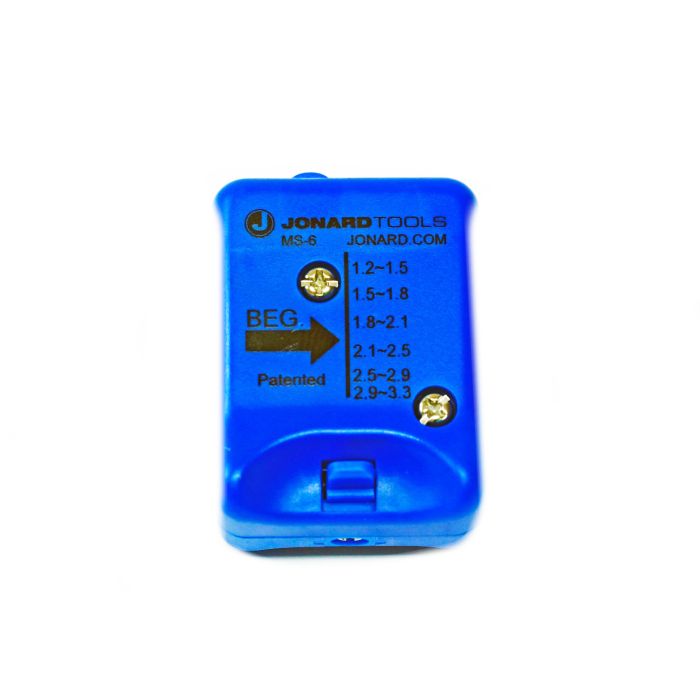

• Precision Slitting Grooves
  Features six distinct grooves ranging from 1.2 mm to 3.3 mm, ensuring compatibility with a wide variety of cable diameters.
• Fiber Protection
  Engineered to open cable jackets or buffer tubes without damaging the internal optical fibers.
• Compact Design
  Lightweight construction (under 2.5 oz) allows for easy transport and operation in tight, difficult-to-access workspaces.
• Tethering Hole
  Integrated hole allows the tool to be secured to a wrist strap or lanyard, preventing accidental drops.
• Blade Indicator Line
  An indicator line on the top of the unit marks the precise blade location, allowing for accurate slitting and ringing.
• Long-Lasting Performance
  Blades are rated for up to 5,000 slits/cuts, providing extended operational life before requiring replacement.

Applications

• Mid-span access to optical fiber cables
• Opening loose buffer tubes
• Removing outer cable jackets
• Fiber optic installation and maintenance
• Work in tight or restricted spaces

Technical Specifications

Frequently Asked Questions

What is the primary use of the MS-6 tool?
The MS-6 is designed for performing mid-span access on optical fiber cables, allowing you to open the jacket or buffer tube to access internal fibers without damaging them.

What is the diameter range for this slitter?
This tool supports cables with diameters ranging from 1.2 mm to 3.3 mm.

Can I replace the blades?
Yes, replacement blade sets are available under part number MSB-1533.

How many uses can I expect from the blades?
The blades are rated for approximately 5,000 slits or cuts before they need to be replaced.

Does the tool include any safety features for working in the field?
Yes, the tool includes an integrated tethering hole, making it convenient to attach to a lanyard when working at heights or in tight areas.
