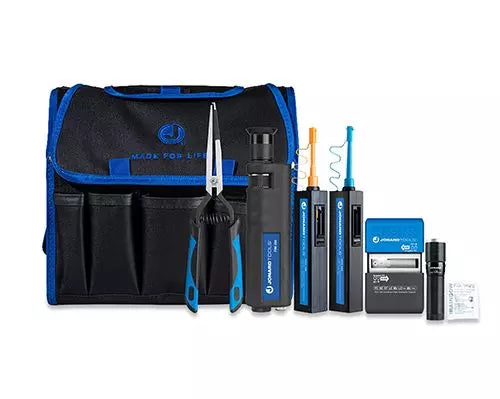

Jonard TK-188 Fiber Connector Cleaning and Inspection Kit

Overview

The Jonard TK-188 Fiber Connector Cleaning and Inspection Kit is a comprehensive solution designed for the maintenance, cleaning, and inspection of fiber optic connector end-faces. It is an essential toolset for fiber technicians operating in data centers, central offices, and field environments, ensuring optimal optical performance by removing debris and contamination.

This kit features a versatile collection of precision tools, including both 1.25mm and 2.5mm cleaning solutions, a universal handheld connector cleaner, and a 200x magnification inspection microscope. Housed in a rugged, multi-pocket tool case, the kit provides organized storage and portability for on-site diagnostic and maintenance tasks.

Key Features

• Universal Cleaning Tools
  Includes specialized 1.25mm and 2.5mm cleaners along with a universal cleaner for diverse connector types.
• Inspection Capability
  Features a 200x fiber inspection microscope with an achromatic lens for high-clarity viewing of fiber end-faces.
• Advanced Cleaning Technology
  The FCC-300 universal cleaner utilizes an automatic "Clean and Advance" tape mechanism for consistent cleaning.
• Residue-Free Wipes
  Supplied with 50 pre-moistened, fast-evaporating, non-abrasive solvent wipes for effective contamination removal.
• Fiber Handling Tool
  Includes a dedicated insertion and removal tool compatible with LC and SC connectors for tight spaces.
• Integrated Illumination
  Features an LED flashlight with 120-lumen brightness, adjustable beam, and zoom lens for inspection in low-light conditions.
• Rugged Transport
  Comes in a durable tool case with 21 interior and exterior pockets for organized tool management.

Applications

• Fiber optic network maintenance
• Connector end-face inspection
• Data center cable management
• Field fiber diagnostic and cleaning

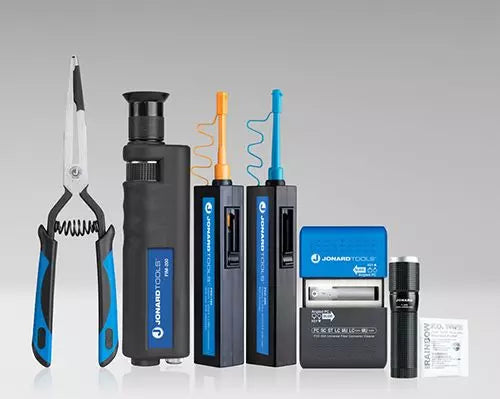

Package Contents

• FCC-125 Fiber Connector Cleaner (1.25mm)
• FCC-250 Fiber Connector Cleaner (2.5mm)
• FCC-300 Universal Fiber Connector Cleaner
• FCT-100 Fiber Connector Tool (LC, SC)
• FIM-200 Fiber Inspection Microscope (200x)
• FW-50 Fiber Wipes (Pack of 50)
• FL-2000 LED Flashlight with Zoom Lens
• H-90 Rugged 21-Pocket Tool Case

Technical Specifications

Frequently Asked Questions

What connectors are the included cleaners compatible with?
The kit includes tools for 1.25mm (LC/MU) and 2.5mm (SC/ST/FC) connectors, as well as a universal cleaner for multiple types.

Does the microscope provide enough magnification for inspections?
The FIM-200 microscope features 200x magnification with an achromatic lens, which is suitable for standard field inspections.

Are the fiber wipes refillable?
The kit includes a pack of 50 pre-moistened wipes; additional cleaning consumables can be purchased separately.

Is the tool case water resistant?
The H-90 tool case is described as rugged, but it is not rated for total submersion; it is intended for field transport protection.

Can I store extra tools in this kit?
Yes, the case features 21 pockets that allow for the storage of additional small tools or fiber accessories.
