Overview

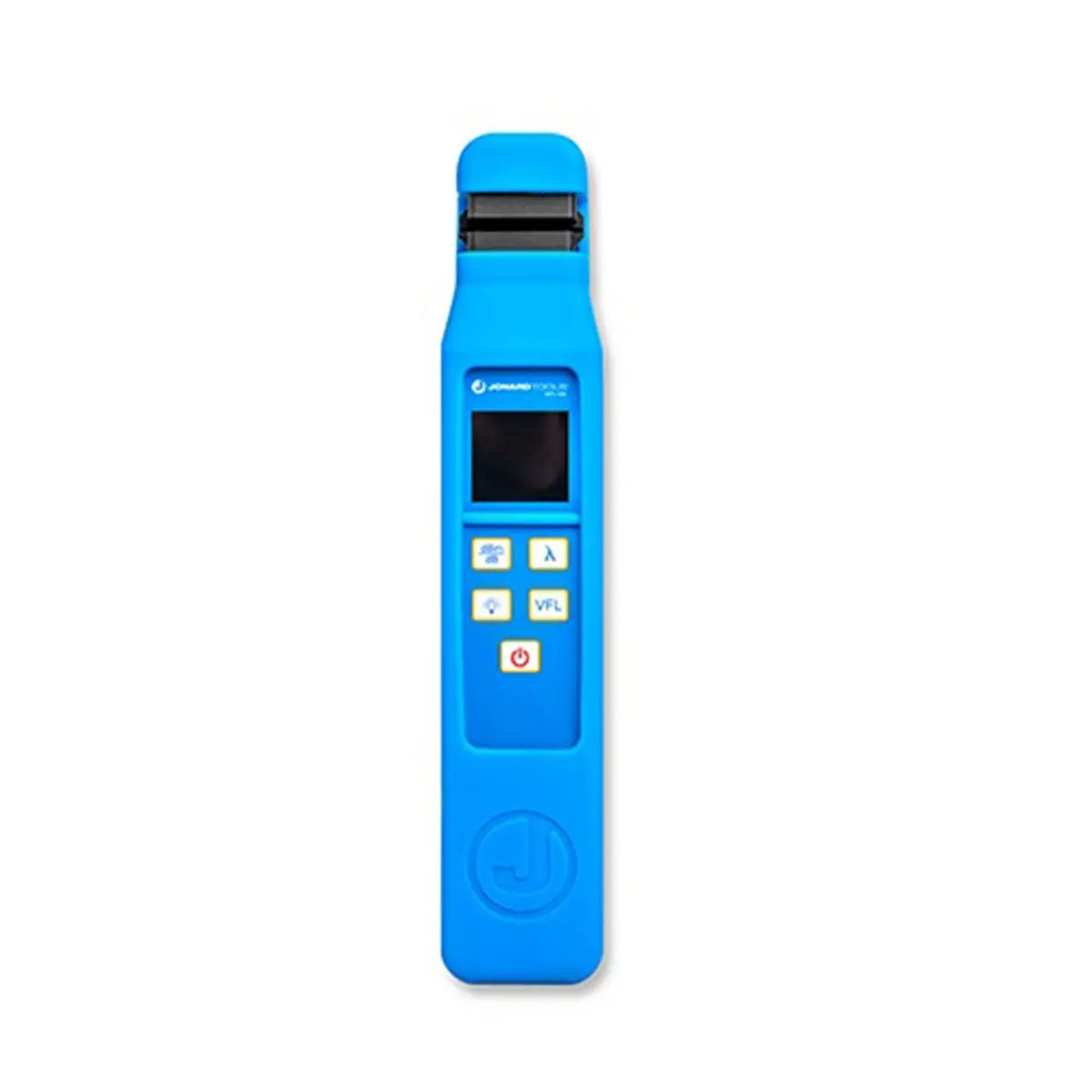

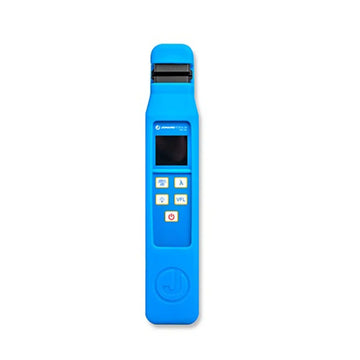

The Jonard Tools OFI-100 is a versatile, multi-function tool designed for field identification and verification of optical fiber networks. This advanced fiber identifier allows technicians to detect signal direction and transmitted traffic without the need to disconnect the fiber or disturb existing network traffic.
Engineered for high utility in diverse environments, the OFI-100 combines a fiber identifier, an optical power meter (OPM), and a visual fault locator (VFL) into a single, compact device. It features an intuitive LCD interface that provides real-time data on signal direction, relative core power, and battery status. Housed in a durable protective rubber sleeve, it is suitable for demanding field conditions.
Key Features
-
Multi-Functional Design
Integrates a fiber identifier, power meter, and VFL for comprehensive field testing. -

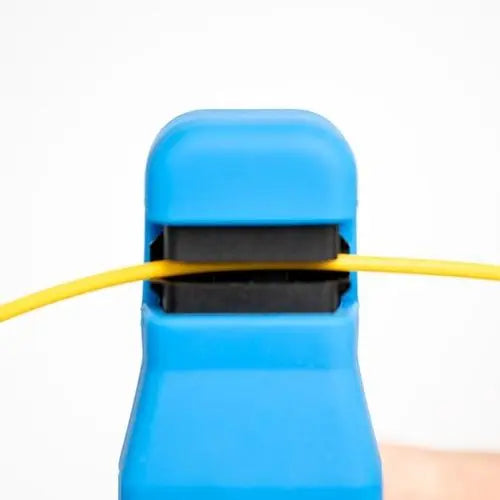

Non-Intrusive Detection
Safely identifies traffic and signal direction without damaging fibers or interrupting service. -
Audible Tone Detection
Provides alerts for common frequency tones (270Hz, 1KHz, 2KHz) for accurate identification. -

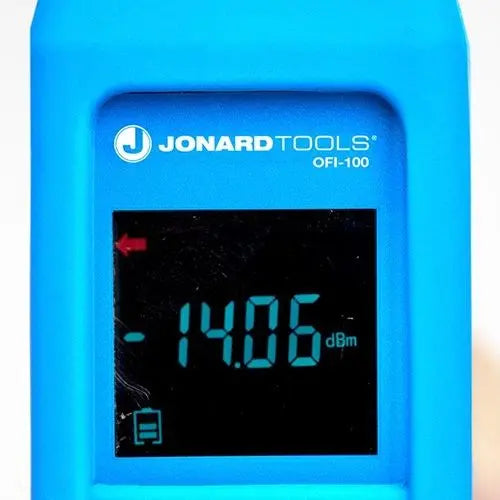

LCD Display
Clear visual feedback on core power levels, signal direction, and battery levels. -
Wide Power Measurement Range
Measures optical power from -50 to +26dBm for versatile network troubleshooting. -
Protective Housing
Includes a rubber sleeve for improved grip and protection against drops. -
Universal Compatibility

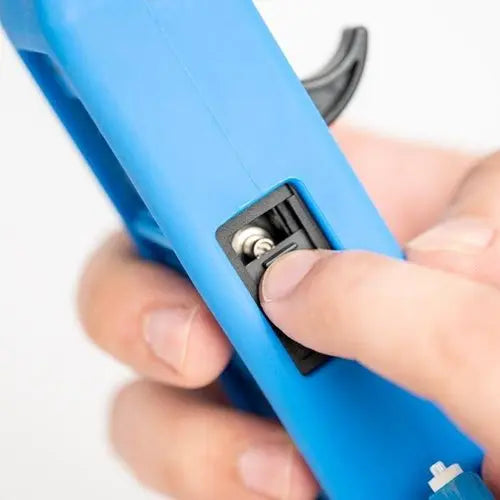

Reversible adapter supports 2.0mm, 3.0mm, 250µm, and 900µm fiber types.
Applications
- Fiber network signal identification
- Directional traffic monitoring
- Fiber optic power level measurement
- Visual fault location in cable assemblies
Package Contents
- OFI-100 Optical Fiber Identifier
- Protective rubber sleeve
- Reversible adapter (2.0/3.0mm and 250/900µm fibers)
- 2x AA batteries
- Carry pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | OFI-100 |
| Part Number | 054X605 |
| Power Measurement Range | -50 to +26dBm |
| Supported Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 nm |
| Frequency Detection | 270Hz, 1KHz, 2KHz |
| Fiber Compatibility | 250µm, 900µm, 2.0mm, 3.0mm |
| Power Supply | 2x AA Batteries |
Frequently Asked Questions
Can the OFI-100 be used on live fibers?
Yes, the OFI-100 is designed to safely identify fibers and monitor signals without disrupting network traffic.
What fiber diameters does it support?
The device includes a reversible adapter compatible with 2.0mm, 3.0mm, 250µm, and 900µm fiber cables.
Does this unit include a visual fault locator?
Yes, it features an integrated visual fault locator (VFL) in addition to the fiber identifier and power meter.
What are the supported measurement wavelengths?
It supports 850, 1300, 1310, 1490, 1550, and 1625 nm.
What batteries does the device use?
The device operates using 2x AA batteries, which are included.
