Overview

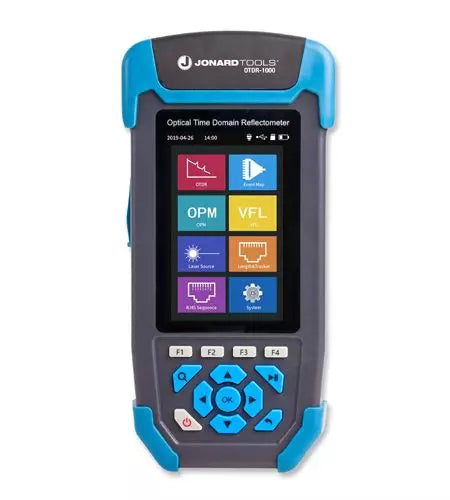

The Jonard Tools OTDR-1000 is a versatile, handheld multi-function device designed for testing and maintaining singlemode fiber optic networks, specifically in FTTx and access network environments. It serves as a comprehensive tool for fiber network construction, allowing technicians to map cables, locate breakpoints, measure lengths, and calculate relative optical power losses.

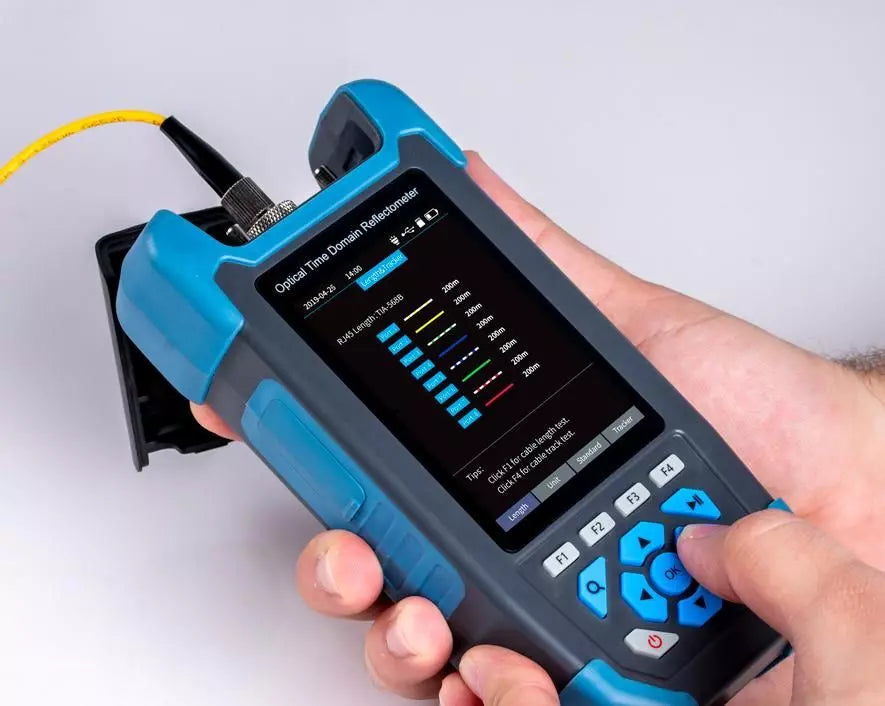

Engineered for field use, the device features a ruggedized, shock-proof, and drop-proof rubberized casing to withstand harsh operating environments. Its intuitive interface includes a 3.5" color LCD screen, internal storage, and a rechargeable lithium-ion battery, making it an efficient solution for on-the-go diagnostics and data analysis.
Key Features
-
Multi-Function Testing
Features 8 integrated functions for comprehensive evaluation of fiber optic and network cables. -
High-Visibility Interface
Equipped with a 3.5" color LCD screen to ensure data is easy to read in various lighting conditions. -
Rugged Design
Housed in a shock-proof and drop-proof rubberized plastic case for increased durability in the field. -
Data Storage
Includes 600 MB of internal storage with an integrated MicroSD/TF card slot to accommodate additional data requirements. -
Power Portability
Built-in rechargeable lithium-ion battery provides extended operation for field technicians. -
Connectivity
Features a micro-USB port for simple charging and convenient data transfer to a computer.
Applications
- FTTx network installation and maintenance
- Access network construction
- Fiber optic breakpoint identification
- Cable length measurement
- Optical power loss calculations
Package Contents
- OTDR-1000 Main Unit
- FC OTDR Adapter
- SC OTDR Adapter
- LC (PC/UPC) OTDR Adapter
- Micro-USB Cable
- Power Cord with Plug Adapters
- Alcohol Wipes
- Instruction Manual

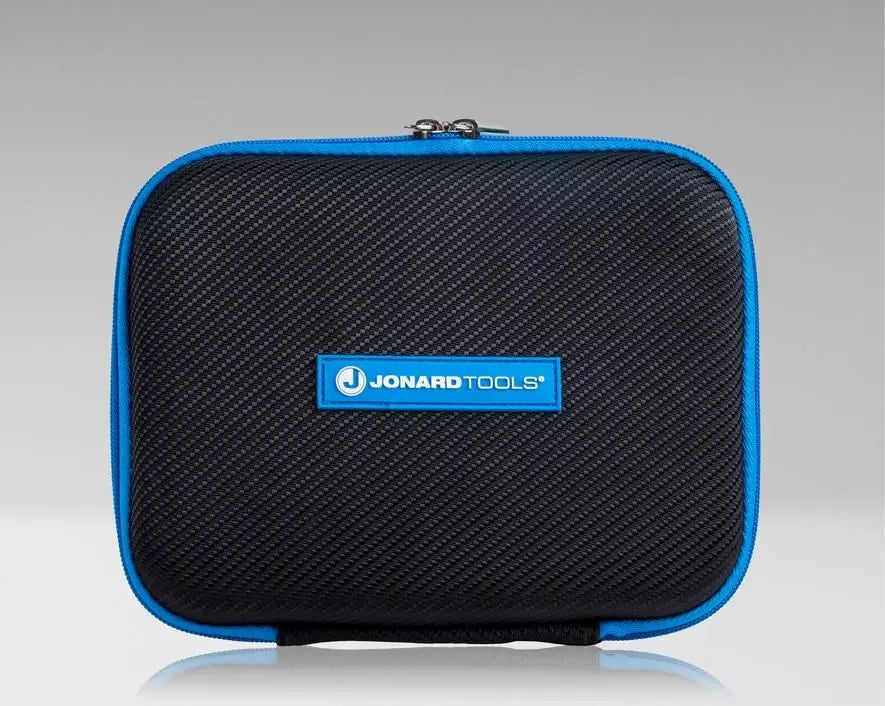

- Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | OTDR-1000 |
| Operating Wavelength | 1310/1550nm |
| Display | 3.5" Color LCD |
| Storage Capacity | 600 MB Internal + MicroSD/TF slot |
| Battery | Rechargeable Lithium-ion |
Frequently Asked Questions
What types of fiber is the OTDR-1000 designed for?
It is designed for testing singlemode fiber optic networks.
What OTDR adapters are included?
The unit includes FC, SC, and LC (PC/UPC) adapters.
Can I expand the internal memory?
Yes, the unit features a MicroSD/TF card slot for additional storage.
Does the unit come with a carrying case?
Yes, a carrying case is included in the package contents.
How do I transfer data to my computer?
Data can be transferred via the included micro-USB cable.
