Overview

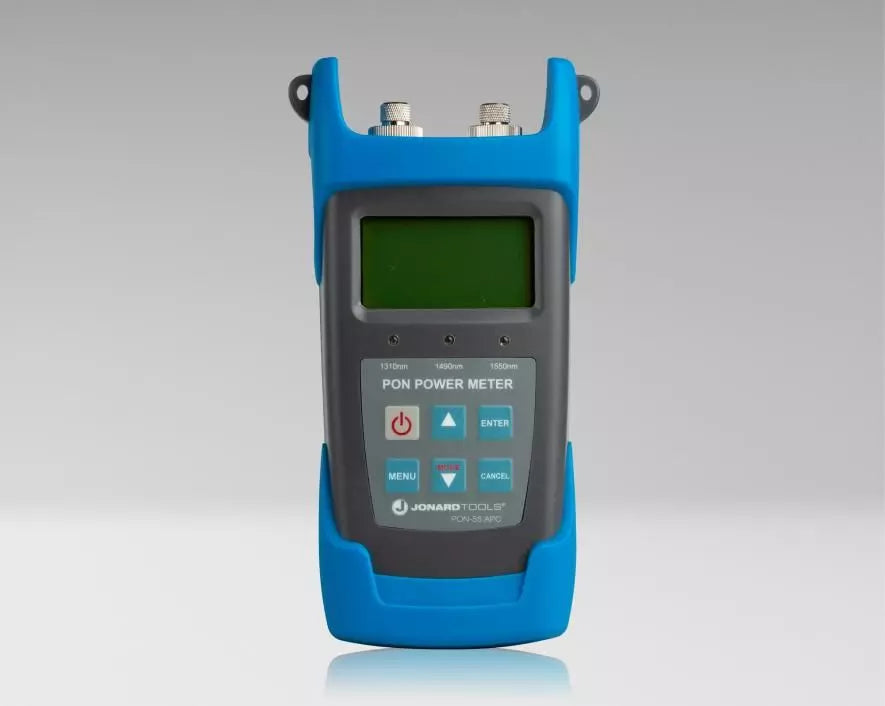

The Jonard Tools PON-55 Network Power Meter is a precision instrument engineered for live testing and maintenance of Passive Optical Network (PON) systems, including BPON, EPON, and GPON architectures. This device is essential for technicians performing FTTx service turn-ups, as it enables the simultaneous measurement of voice, data, and video signal power.

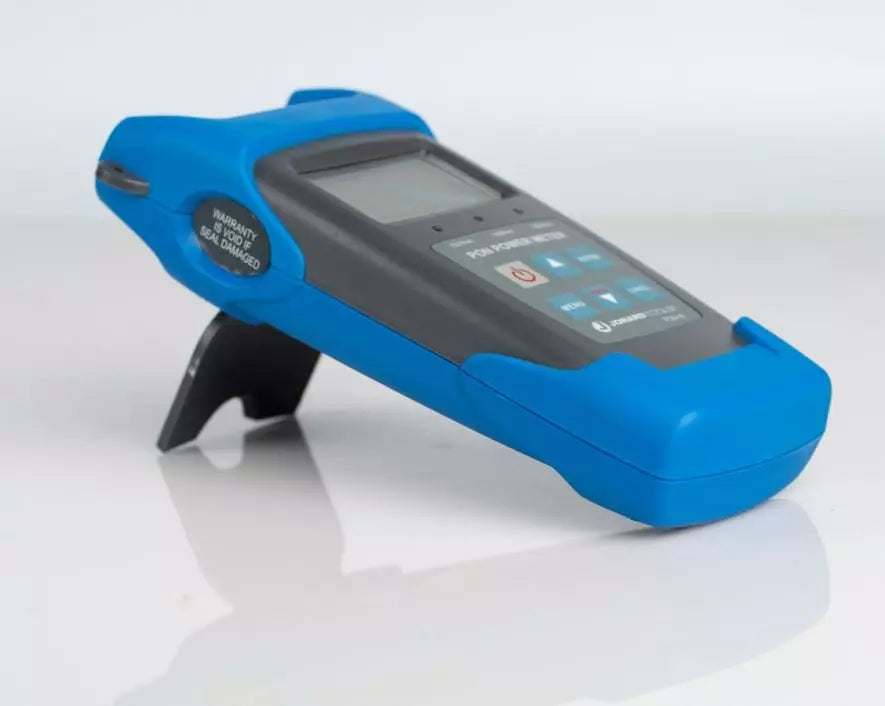

Constructed with a rugged, shatter-resistant sleeve for field durability, the meter provides real-time analysis through pass, warning, and fail LED indicators. It offers integrated data management via a USB interface, allowing users to save up to 1,000 test results and calibrate wavelengths via PC software.
Key Features
-
Simultaneous Triple-Wavelength Measurement
Concurrently measures 1310 nm, 1490 nm, and 1550 nm signals, providing a complete view of network performance. -
APC Connector Support
Includes high-precision FC/APC and SC/APC adapters for seamless connectivity with angled physical contact fiber interfaces. -
Pass/Fail Indicators
Features three distinct LED indicators to provide instant visual feedback on signal quality and threshold compliance. -
Integrated Data Storage
Internal memory stores up to 1,000 measurement entries, simplifying documentation for network records. -
USB Connectivity
Standard USB port enables data transfer to a PC for analysis and calibration adjustments. -
Robust Field Design
Equipped with a protective, shatter-resistant sleeve to withstand accidental drops in demanding work environments.
Applications
- FTTx network service and maintenance
- BPON/EPON/GPON network verification
- Live signal power testing

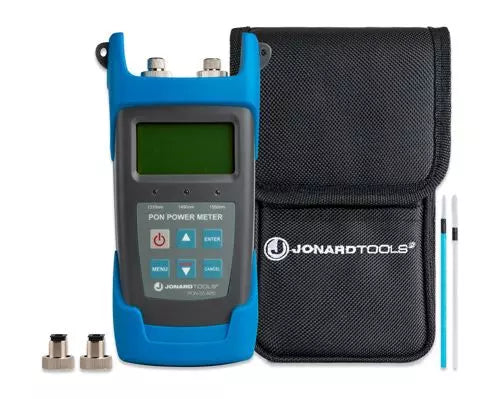

Package Contents
- PON-55 Power Meter
- (2) FC/APC Adapters
- (2) SC/APC Adapters
- Carrying Case
- Mini USB Cable
- (3) AA Batteries
- Instruction Manual
- Cleaning Swabs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | PON-55 |
| Network Types | BPON, EPON, GPON |
| Connector Types | FC/APC, SC/APC |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Detector Type | InGaAs |
| Measurement Range | -35 to +10 dBm |
| Max Output Power | 15 dBm |
| Uncertainty | ±0.5 dB |
| Linearity | ±0.1 dB |
| Battery Life | 90 Hours |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 6.25" x 9" x 2.8" |
| Weight | 0.93 lbs |
Frequently Asked Questions
Does this meter support both APC and UPC connections?
The PON-55 is specifically configured for APC (Angled Physical Contact) connectors.
Can it test all three wavelengths at once?
Yes, it simultaneously measures 1310 nm upstream and 1490/1550 nm downstream signals.
Is the software compatible with modern Windows PCs?
Yes, the downloadable software allows for threshold setting and data transfer via USB.
What is the typical battery life?
The unit provides approximately 90 hours of operation on 3x AA batteries.
Can the auto-off feature be disabled?
Yes, the 10-minute auto-off function can be toggled on or off as required.
