Jonard Tools TK-285 Fusion Splicer V-Groove/ Connector Cleaning Kit

Overview

The Jonard Tools TK-285 Fusion Splicer Cleaning Kit is a comprehensive collection of maintenance tools designed to remove dust, debris, and silica deposits from fusion splicer V-grooves and fiber optic connector end-faces. By ensuring these critical components remain clean, the kit helps maintain optimal splicing performance and reduces signal loss caused by contamination.

This kit is intended for use in field environments where fusion splicing equipment requires routine upkeep. It includes a variety of specialized cleaning agents, lint-free materials, and inspection tools to ensure complete removal of contaminants from delicate surfaces.

Key Features

• 100% Cotton Swabs
  Includes 125 pointed and 125 rounded swabs for precision cleaning of V-grooves and sensitive areas.
• Lint-Free Polyester Wipes
  90 dry wipes designed to clean bare fiber and connector end-faces without leaving residual fibers behind.

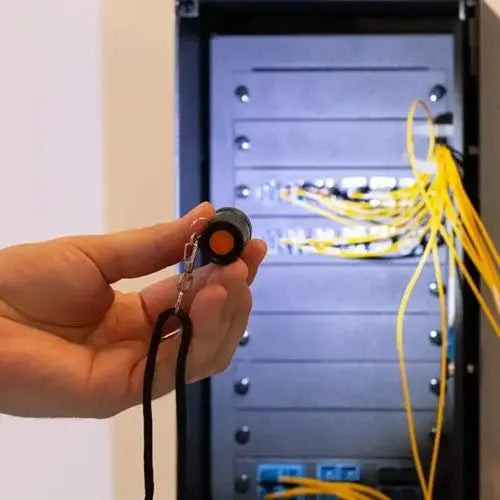

• Fiber Optic Eyeloop
  Features X3, X6, and X9 magnification levels for detailed inspection of V-grooves and fiber ends.
• Nonflammable Cleaning Fluid
  Formulated to evaporate quickly, this fluid removes contaminants while dissipating electrostatic charges.
• LED Headlamp
  Provides 300 lm of illumination with a motion sensor for hands-free operation in dim environments.
• V-Groove Cleaning Brush
  A double-ended brush with metal and nylon bristles to remove built-up acrylate coating from V-grooves.
• Rugged Carrying Case
  Includes a durable case to keep all cleaning components organized and protected during transport.

Applications

• Fusion splicer V-groove maintenance
• Fiber optic connector end-face cleaning
• Bare fiber preparation
• Field service and network installation

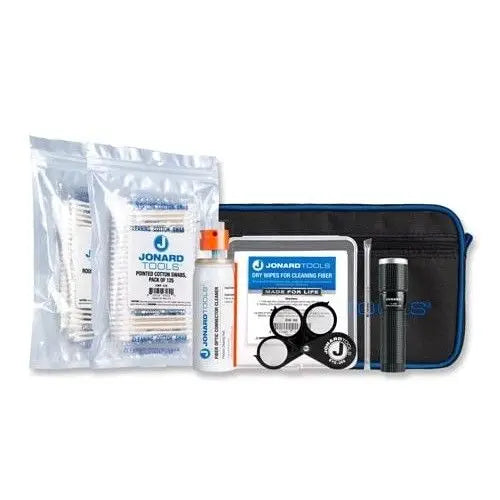

Package Contents

• 125 Pointed Cotton Swabs (CWP-125)
• 125 Rounded Cotton Swabs (CWR-125)
• 90 Dry Fiber Wipes (DW-90)
• Fiber Optic Eyeloop (EYE-369)
• Nonflammable Fiber Cleaning Fluid (FCF-3)
• LED Flashlight with Zoom Lens (FL-2000)
• V-Groove Cleaning Brush (VGB-100)
• Rugged Carrying Case (H-20)

Technical Specifications

Frequently Asked Questions

What is the purpose of the cleaning fluid?
The FCF-3 fluid is nonflammable and evaporates faster than IPA, helping to clean surfaces while dissipating electrostatic charges.

Are the wipes lint-free?
Yes, the included dry wipes are made of polyester to ensure no lint is left on the fiber or connector end-faces.

Can I use this kit on all fusion splicer brands?
Yes, the tools in this kit are universal and designed for general fusion splicer V-groove and fiber connector cleaning.

How do I turn on the headlamp?
The included LED headlamp features a motion sensor allowing you to toggle the light on or off by waving your hand.

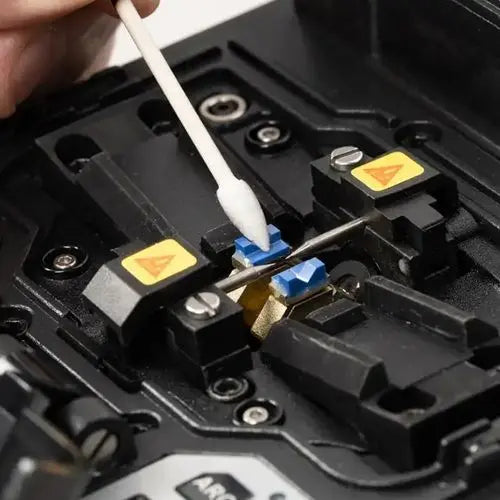

What is the difference between the pointed and rounded swabs?
Pointed swabs are ideal for reaching into small V-groove channels, while rounded swabs are suited for broader surfaces or connector faces.
