Jonard Tools VFL-150 Visual Fault Locator Kit, 2.5mm/ 1.25mm

Overview

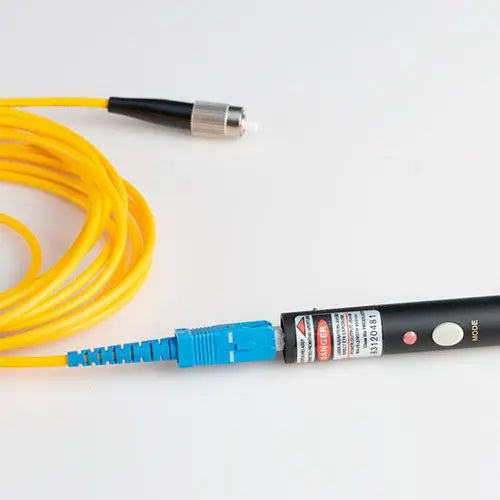

The Jonard Tools VFL-150 is a pen-style visual fault locator kit engineered for essential fiber optic maintenance tasks, including fiber tracing, routing, continuity testing, and identifying breaks or high-loss connections. Utilizing a 650nm Class IIIA laser diode, this tool effectively illuminates faults in both single-mode and multi-mode fiber, including those within OTDR dead zones.

Designed for portability and durability in the field, the unit features a rugged pen-style form factor. It offers versatile operation with three distinct modes: continuous wave, pulsing, and slow-pulsing, providing flexibility for various diagnostic environments. The kit is compatible with 2.5mm ferrules out-of-the-box, with an included adapter for 1.25mm LC connectors.

Key Features

• Universal Connector Compatibility

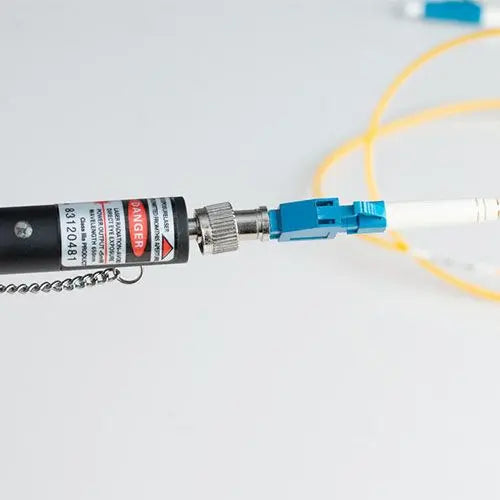

  Supports 2.5mm ferruled connectors (FC, SC, ST) and includes an adapter for 1.25mm LC connectors, providing broad interface flexibility.
• 650nm Laser Diode
  Utilizes a visible red laser to pinpoint fiber breaks, leaks, and stress points in both single-mode and multi-mode cabling.
• Extended Operating Range
  Capable of identifying faults in fiber optic cables up to 5 kilometers (3.1 miles) in length.
• Versatile Operating Modes
  Features three distinct modes—continuous wave, pulsing, and slow pulsing—to assist in specific fault identification tasks.
• OTDR Dead Zone Performance
  Functions effectively within OTDR dead zones, allowing for precise location of faults near the connector or termination point.
• Long Battery Life
  Provides up to 60 hours of continuous operation from two AAA batteries, minimizing downtime for field technicians.
• Portable Pen-Style Design
  Compact and lightweight construction enables easy transport and single-handed operation in tight enclosures or manholes.

Applications

• Fiber tracing and routing
• Continuity testing
• Locating fiber breakpoints
• Identifying poor connections or high-loss stress points
• Field diagnostics within OTDR dead zones

Package Contents

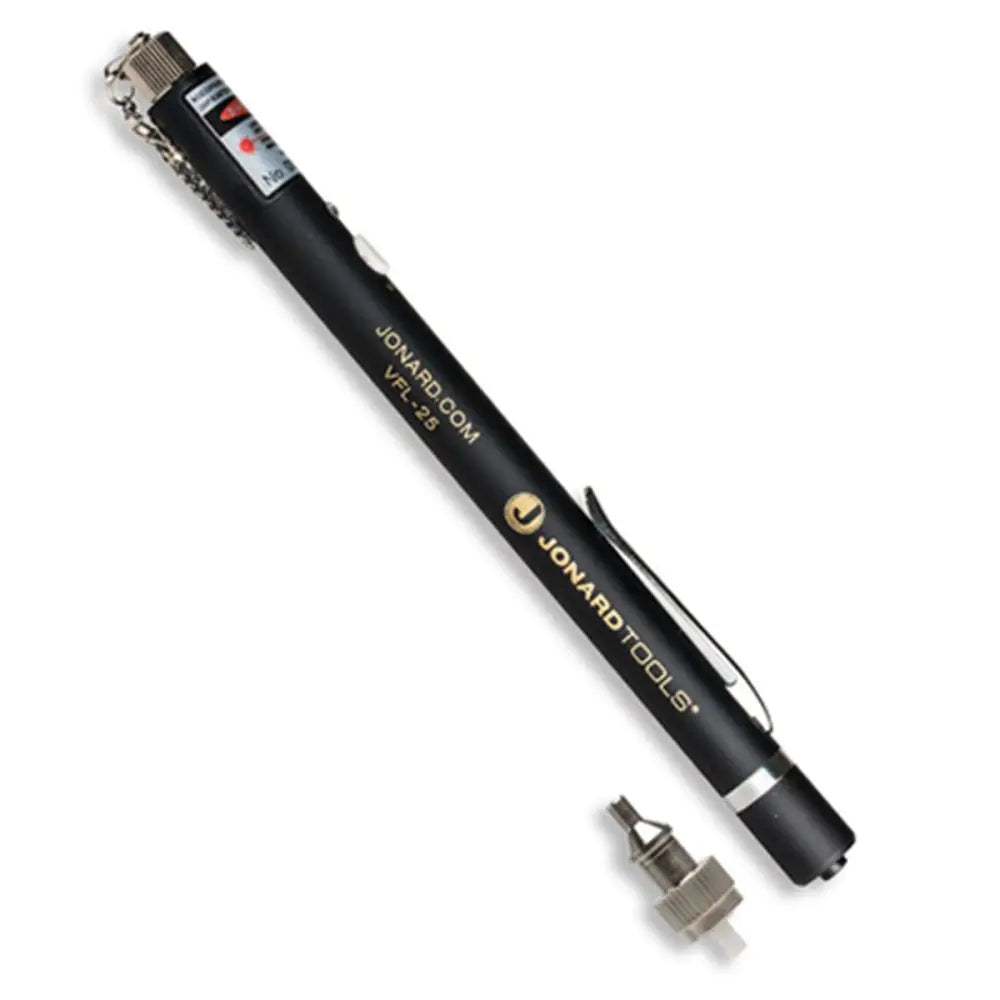

• VFL-25 Visual Fault Locator
• VFL-25125 FC to LC Adapter
• 2x AAA Batteries

Technical Specifications

Frequently Asked Questions

Is the VFL-150 compatible with all fiber types?
It is designed for use on both single-mode and multi-mode fiber. However, it is not recommended for use on dark-colored or armored cables.

What connectors can this VFL accommodate?
The tool has a universal interface for 2.5mm ferruled connectors (FC, SC, and ST) and includes an adapter (VFL-25125) specifically for 1.25mm LC connectors.

What is the maximum distance for fault detection?
The laser is capable of identifying faults in fiber spans up to 5 kilometers (3.10 miles).

What operating modes are available?
The unit provides three modes: continuous wave (constant light), flashing (pulsed), and a slower pulse mode for easier tracing.

Does this unit work in high or low temperature environments?
Yes, it is rated for operation between -4°F and 140°F (-20°C to 60°C).
