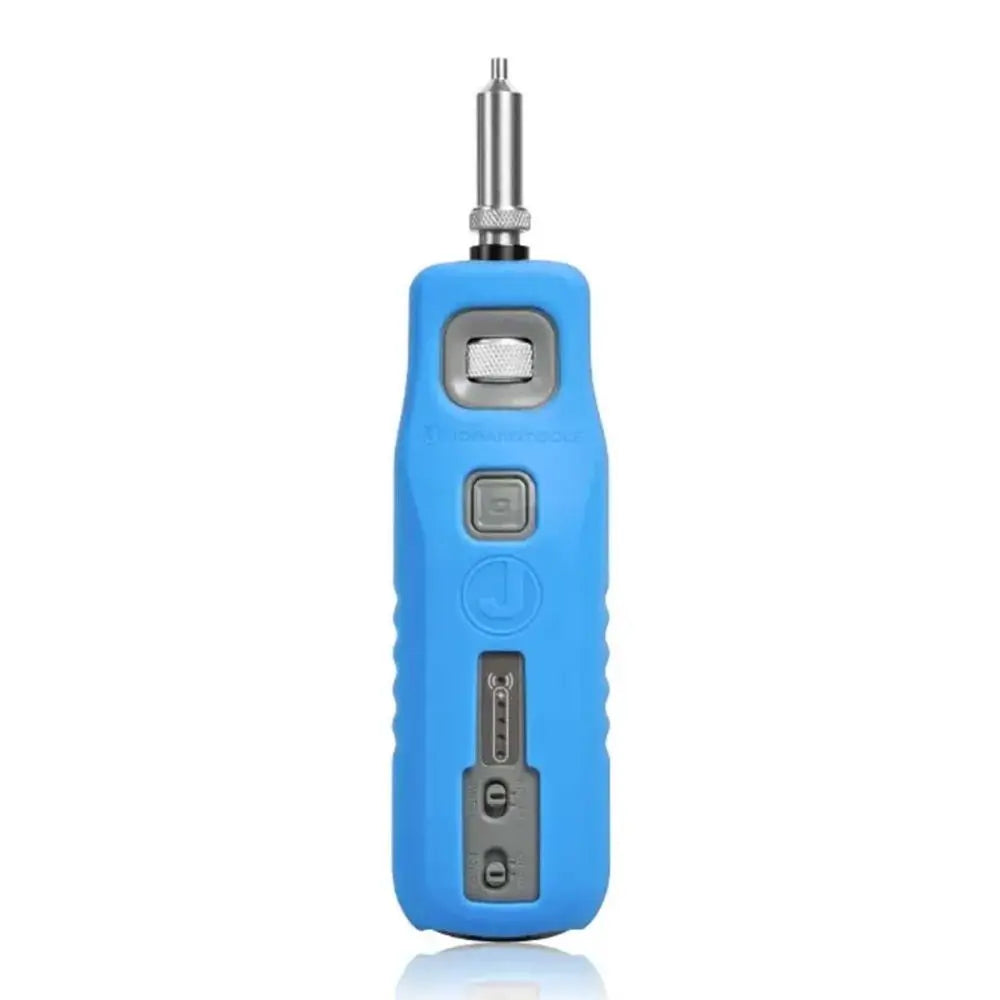

The Jonard Tools WFM-100 is a wireless fiber inspection microscope designed to provide clear, high-resolution imagery of fiber optic connector end-faces. Its primary purpose is to simplify the inspection process for network technicians and contractors by delivering real-time video directly to smart mobile devices or tablets.
The device features an integrated probe and supports automatic analysis of male and female PC/UPC fiber connectors and ports, including SC, ST, FC, and LC types. By utilizing the “One Press” auto-analyze function, the system automatically generates and records pass/fail reports, improving efficiency during field fiber installations and maintenance.
Key Features
-
Wireless Connectivity
Connects to mobile devices or tablets via Wi-Fi for remote viewing and inspection without physical cables. -
Auto-Analyze Function
Features a One Press button that automatically performs analysis and records pass/fail test reports. -
High Magnification
Provides 200x magnification for detailed examination of fiber connector ferrules. -
Universal Compatibility
Includes five distinct adapters to support both male and female PC/UPC fiber connectors, including SC, ST, FC, and LC. -
Real-Time Imaging
Utilizes a high-resolution camera to display live fiber end-face conditions on an inspection display. -
Cross-Platform App Support
The associated inspection application is free to download and supports both Android and iOS operating systems. -
USB Interface
Offers wired connectivity to the Jonard OTDR-1500 or other compatible test hardware.
Applications
- Fiber optic connector end-face inspection
- Field maintenance of fiber networks
- Installation verification for PC/UPC connectors
- Data center fiber infrastructure testing
Package Contents

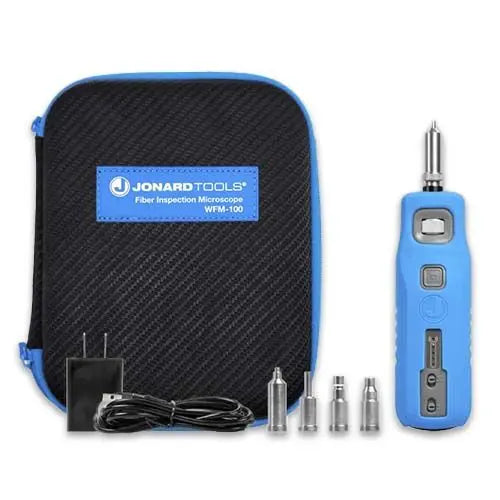

- WFM-100 Wireless Fiber Microscope
- 2.5mm FC/SC/ST (PC/UPC) Male Adapter
- 2.5mm FC/SC/ST (PC/UPC) Female Adapter
- 1.25mm LC (PC/UPC) Male Adapter
- 1.25mm LC (PC/UPC) Female Adapter
- USB-C Cable
- Charger
- Instruction Manual
- Carrying Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | WFM-100 |
| Magnification | 200x |
| Connectivity | Wireless (Wi-Fi) and USB |
| Supported Connector Types | PC/UPC (SC, ST, FC, LC) |
Frequently Asked Questions
What mobile operating systems are compatible with the WFM-100?
The microscope is compatible with both Android and iOS mobile devices via a free downloadable app.
Can the device be used without a wireless connection?
Yes, the unit features a USB port allowing for wired connectivity to compatible devices such as the Jonard OTDR-1500.
Does this microscope include adapters for different connector types?
Yes, it includes five specific adapters for male and female PC/UPC SC, ST, FC, and LC connectors.
What is the purpose of the One Press function?
The One Press button automatically performs an analysis of the fiber end-face and records a pass/fail report for easier documentation.
Is this device TAA compliant?
No, this model is listed as Non-TAA compliant.
