The Jonard Tools® WFM-110 Wireless Fiber Inspection Microscope is an advanced diagnostic tool designed for the real-time, high-resolution inspection of optical fiber connector end-faces. Optimized specifically for APC (Angled Physical Contact) connectors, this unit provides field technicians and network engineers with a precise way to identify contamination and physical defects that compromise signal integrity.
This microscope offers flexible connectivity options, featuring wireless communication with iOS and Android mobile devices via a dedicated app, as well as a wired USB-C interface for integration with external test equipment such as OTDRs. Its intelligent auto-analysis feature enables rapid pass/fail diagnostics, allowing for quick documentation and reporting in diverse networking environments.
Key Features
-
Wireless Connectivity
Connects to mobile devices via Wi-Fi for untethered inspection and real-time viewing on iOS and Android platforms. -
Wired USB-C Interface
Supports direct connection to external testing hardware, such as OTDRs, for integrated troubleshooting. -
One-Press Auto-Analyze
Instantly performs automated pass/fail diagnostics to reduce human error during testing. -
High-Resolution Imaging
Features a 1280x1024 sensor with 200x optical magnification and 0.75µm resolution for detailed analysis. -
Optimized for APC
Includes specialized adapters to ensure accurate alignment and inspection of angled fiber end-faces. -
Extended Operation
Integrated lithium-ion battery provides up to 3 hours of continuous runtime for field mobility. -
Long-Range Wireless
Offers a wireless range of up to 328 feet (100m) for remote inspection capabilities.
Applications
- Fiber optic connector end-face inspection
- Data center maintenance and troubleshooting
- Field testing for telecommunication networks
- Quality assurance for fiber optic installations
Package Contents

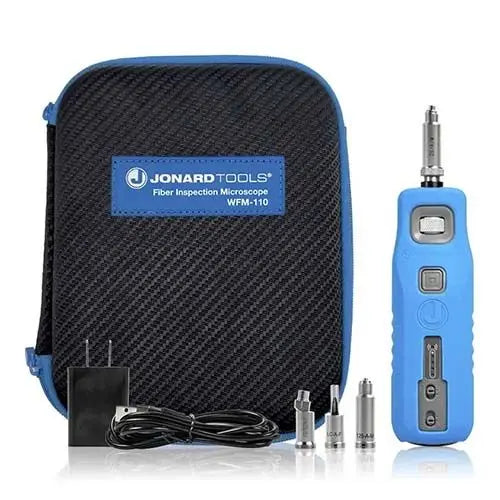

- WFM-110 Wireless Fiber Microscope
- 2.5mm FC/SC/ST Male APC Adapter
- 1.25mm LC Male APC Adapter
- 2.5mm SC/FC Female APC Adapter
- 1.25mm LC Female APC Adapter
- USB-C Cable
- Battery Charger
- Hard Carry Case
Technical Specifications
| Specification | Value |
|---|---|
| Model | WFM-110 |
| Magnification | 200x |
| Sensor Resolution | 1280 x 1024 pixels |
| Lens Resolution | 0.75µm |
| Focus Range | 4mm (manual) |
| Wireless Range | Up to 328ft (100m) |
| Battery Life | 3 hours (continuous) |
Frequently Asked Questions
Is the microscope compatible with non-APC connectors?
This model is specifically optimized for APC connectors and includes adapters tailored for those applications.
Can I use this with an OTDR?
Yes, it supports wired connection via USB-C to compatible devices like the OTDR-1500.
How long does the battery last?
The internal lithium-ion battery provides approximately 3 hours of continuous operation.
What mobile platforms are supported?
The device connects via Wi-Fi to both iOS and Android devices through the manufacturer's free application.
What is the maximum wireless operating range?
The unit maintains a wireless connection up to 328 feet (100 meters).
