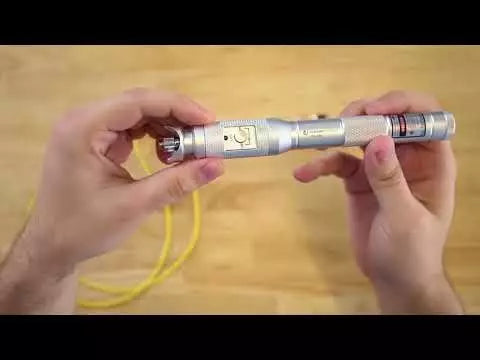

The Jonard Tools VFL-300 is a professional-grade visual fault locator kit designed for field fiber optic maintenance and installation. This diagnostic tool is specifically engineered to locate fiber breakpoints, leaks, stress points, and poor connections in both single-mode and multi-mode fiber networks. Its ability to operate effectively within OTDR dead zones makes it an essential instrument for technicians verifying fiber continuity or identifying specific fault locations up to 5 km (3.1 miles) away.

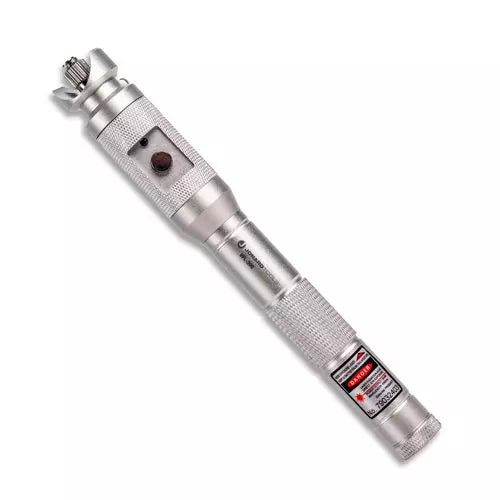

Built for demanding field environments, the unit features a rugged aluminum housing and a compact pen-style design. The device is powered by two included AA batteries and offers up to 60 hours of continuous operation. To prevent accidental battery drain and damage, it includes a rotating protection sleeve that secures the power and mode switch button when not in use.
Key Features
-
650nm Class IIIA Laser Diode
Provides a high-visibility light source for clear identification of fiber faults over distances up to 5 km. -
Versatile Operation Modes
Features three distinct output modes: Continuous Wave (CW), Fast Pulse (9 Hz), and Slow Pulse (2-3 Hz). -
Broad Connector Compatibility
Supports 1.25mm and 2.5mm ferruled connectors, including standard FC, SC, and ST interfaces, plus included LC adapters. -
Extended Battery Life
Delivers up to 60 hours of continuous field use on two standard AA batteries. -
Rugged Construction
Housing made from durable aluminum to withstand the rigors of daily field service and industrial job sites. -

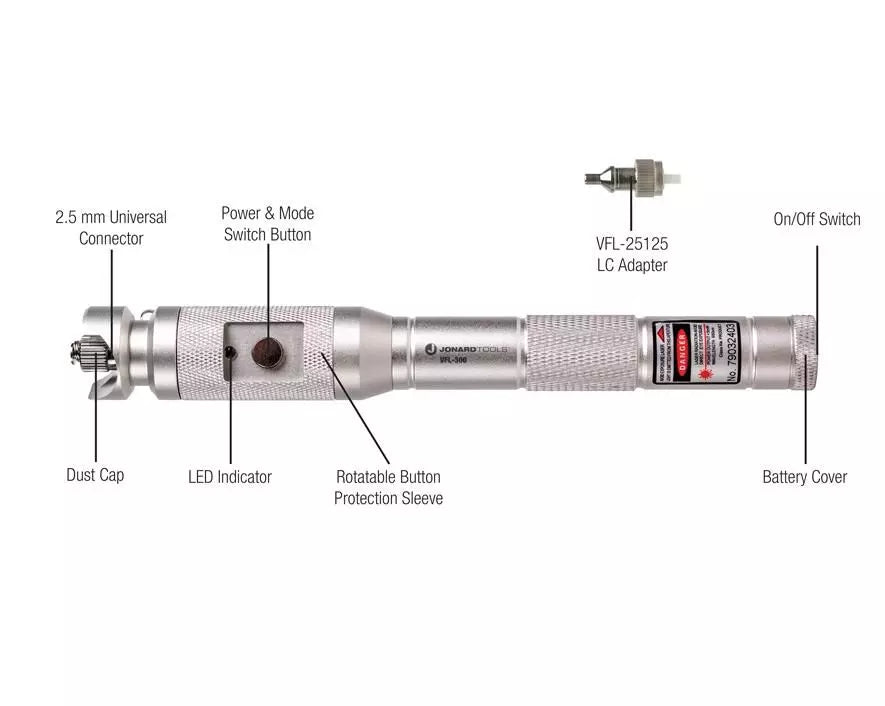

Rotating Protection Sleeve
Prevents the device from being accidentally activated, conserving battery life during transit. -
OTDR Complementary
Effective at pinpointing issues within OTDR dead zones, where traditional reflectometry may struggle.
Applications
- Locating fiber breakpoints and leaks
- Identifying poor connections in patch panels
- Detecting stress points in fiber cable runs
- End-to-end visual fiber identification
- Field maintenance of single-mode and multi-mode networks
Package Contents
- VFL-300 Visual Fault Locator
- 2x AA Batteries
- FC/LC Adapter (VFL-25125)
- Carrying Pouch
- Instructions
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Jonard Tools |
| Model | VFL-300 |
| Part Number | 054X790 |
| Fiber Connector | FC, SC, ST, LC |
| Light Source | Class IIIA Laser Diode |
| Operating Distance | Up to 5 km (3.10 miles) |
| Wavelength | 650 nm ± 10 nm |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power | 2 x AA Batteries |
| Battery Life | 60 Hours |
| Dimensions | 7.68" x 0.98" x 0.98" (19.5 cm x 2.5 cm x 2.5 cm) |
| Weight | 0.36 lb (164.348 g) |
Frequently Asked Questions
What is the maximum distance for fault detection?
The VFL-300 can detect faults up to 5 km (3.1 miles) in both single-mode and multi-mode fibers.
Which fiber types are compatible with this VFL?
This device is compatible with both single-mode and multi-mode fibers.
Can the VFL-300 be used on LC connectors?
Yes, the kit includes an FC/LC adapter specifically for LC-style connectors.
What batteries are required?
The unit operates on 2 standard AA batteries, which are included in the kit.
Is the unit safe for my eyes?
The device uses a Class IIIA laser diode. You must not look directly into the laser or point it at anyone to prevent potential eye damage.
