Overview

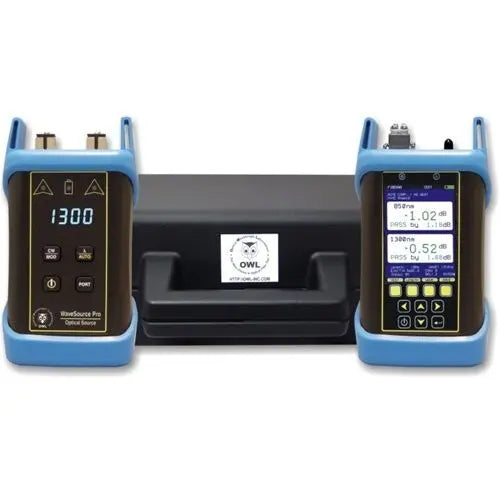

The Optical Wavelength Labs KF7VMS is a professional-grade certification test kit designed for high-accuracy testing of multimode and single-mode fiber optic networks. The kit features the F7V optical power meter, which includes an integrated visual fault locator (VFL), paired with a WaveSource Pro Quad light source. This solution is specifically engineered for technicians and network operators requiring standards-based certification and precise loss measurement in data centers and enterprise environments.
The system utilizes an advanced auto-test function that allows the light source and power meter to coordinate testing across two wavelengths simultaneously. With built-in Link Wizard software, the device streamlines the certification process according to industry standards. The unit supports up to 10,000 data points of internal storage, with results easily exportable via USB for comprehensive reporting.
Key Features
-
Integrated Visual Fault Locator
Includes a dedicated VFL port (LC) to quickly identify fiber breaks or bad connectors, minimizing troubleshooting time. -
Encircled Flux Compliant
Ensures accurate testing of multimode fiber networks and is 10-Gig ready, meeting modern high-speed data requirements. -
Dual-Wavelength Auto-Test
Automatically switches and measures two wavelengths at once, significantly reducing testing duration. -
High-Resolution Display
Features a 2.8-inch color LCD for clear viewing of test results and easy navigation of settings. -
Extended Data Storage
Capable of storing up to 10,000 measurements, allowing for large-scale project documentation. -
Standards-Based Certification
Equipped with an onboard Link Wizard to guide users through required testing steps for industry-compliant link certification. -
Flexible Connectivity
Universal detector port includes 2.5mm and 1.25mm adapters to accommodate various connector types. -
Versatile Transmission Modes
Provides both Continuous Wave (CW) and modulated light source outputs for enhanced testing flexibility.
Applications
- Multimode and single-mode fiber network certification
- Data center link testing and troubleshooting
- Fiber optic installation and maintenance
- High-speed enterprise network verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Optical Wavelength Labs |
| Model | KF7VMS |
| Multimode Wavelengths | 850nm, 1300nm |
| Single-Mode Wavelengths | 1310nm, 1550nm |
| Display Type | 2.8" Color LCD |
| Storage Capacity | 10,000 data points |
| Calibration | NIST Traceable |
Frequently Asked Questions
Does this kit support single-mode fiber?
Yes, the KF7VMS supports testing at 1310nm and 1550nm wavelengths for single-mode fiber as well as 850/1300nm for multimode.
Is the result data downloadable?
Yes, test results can be downloaded via the integrated USB port to the free OWLView software for certification reports.
What adapters are included for the power meter?
The power meter comes with a universal detector port that includes both 2.5mm and 1.25mm adapters.
Is this unit compliant with Encircled Flux (EF) standards?
Yes, the light source is EF compliant, making it suitable for modern multimode fiber network testing.
Does it include a visual fault locator?
Yes, the F7V power meter has an integrated VFL with an LC port.
