Overview

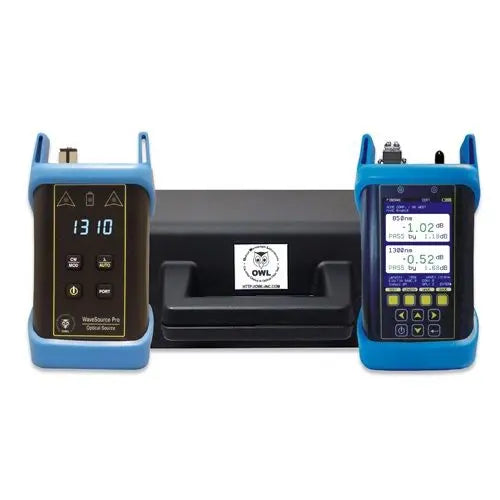

The Optical Wavelength Labs KF7VMX 7V Multimode Certification Test Kit is a professional-grade testing solution designed for accurate, standards-based fiber link certification. This comprehensive kit features the high-resolution F7V optical power meter, which includes an integrated visual fault locator (VFL), paired with a WaveSource Pro multimode light source. Optimized for efficiency in data center and enterprise environments, the system features an automated mode that simultaneously switches between 850nm and 1300nm wavelengths for streamlined testing.
Constructed for demanding field use, the F7V power meter utilizes a 2.8" color LCD and a user-friendly Link Wizard to guide technicians through the certification process. The test set is 10-Gig ready and supports Encircled Flux compliance when paired with an EF mode controller. With the ability to store up to 10,000 data points and integrated USB connectivity, test results can be easily managed and processed using OWLView certification software.
Key Features
-
Dual-Wavelength Auto-Testing
The system automatically switches between 850nm and 1300nm wavelengths and performs simultaneous measurements, significantly reducing testing time. -
Link Wizard Interface
A built-in software assistant provides step-by-step guidance for standards-based fiber link certification to ensure consistent results. -
Integrated Visual Fault Locator
Includes a dedicated VFL (LC port) for quick identification of fiber breaks and macrobends without additional equipment. -
Large Color Display
Features a 2.8" color LCD, allowing for clear viewing of test results and device configuration in various lighting conditions. -
High Data Capacity
Stores up to 10,000 measured data points with labels, accommodating large-scale testing projects. -
OWLView Compatibility
Supports data download via USB to PC-based OWLView software for professional certification reporting. -
Versatile Fiber Connectivity
Equipped with a universal detector port supporting both 2.5mm and 1.25mm adapters to accommodate various connector types. -
10-Gig Ready
Designed to meet modern high-speed network performance requirements, including support for 10-Gigabit standards.
Applications
- Multimode fiber link certification
- 10-Gigabit Ethernet network testing
- Data center cabling verification
- Fiber optic installation and maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Optical Wavelength Labs |
| Model | KF7VMX |
| Fiber Type | Multimode |
| Operating Wavelengths | 850nm, 1300nm |
| Storage Capacity | 10,000 data points |
| Interface | USB |
| Display | 2.8" Color LCD |
Frequently Asked Questions
Does this kit include a certificate of calibration?
Yes, the equipment is NIST traceable.
Can I export my test results to a computer?
Yes, results can be downloaded through the integrated USB port using the provided OWLView certification software.
What kind of adapters are included with the power meter?
The OPM features a universal detector port that includes 2.5mm and 1.25mm adapters.
Is this kit 10-Gig compliant?
Yes, the system is 10-Gig ready and supports Encircled Flux compliance when used with an optional EF mode controller.
What transmission modes does the light source offer?
The light source supports both Continuous Wave (CW) and modulated mode.
