Overview

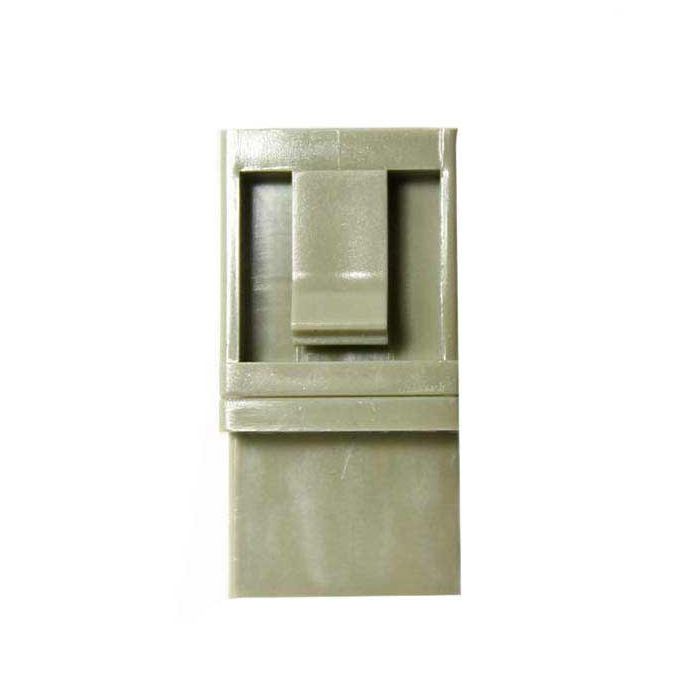

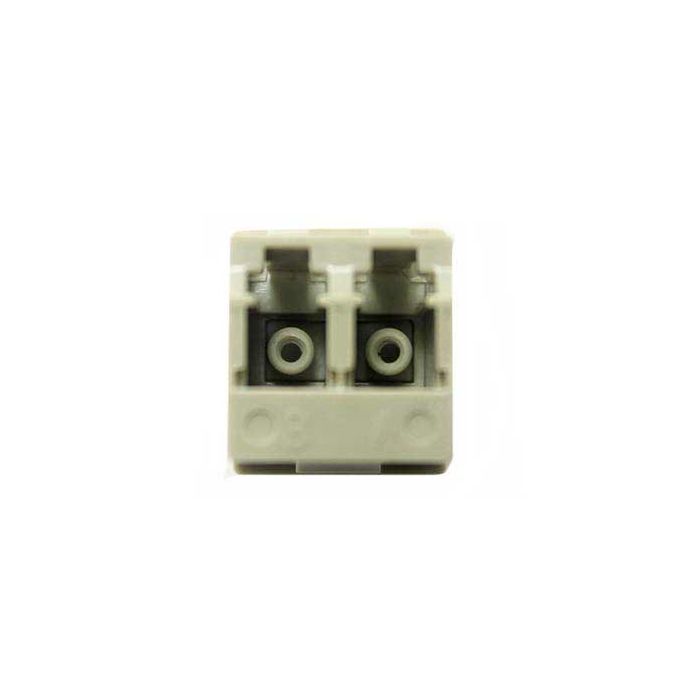

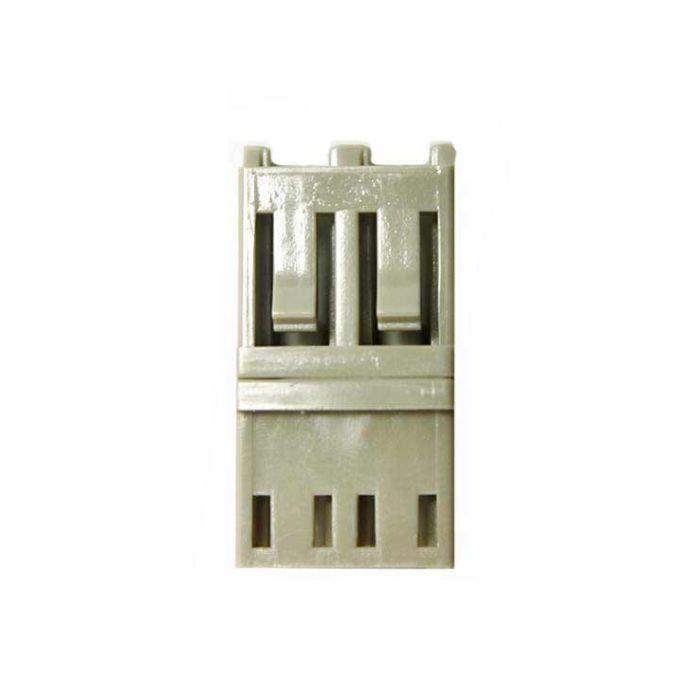

The LC Duplex Mating Sleeve is designed to provide a secure and precise connection between two LC duplex fiber optic patch cords. This adapter is engineered for multimode applications and features a no-flange, square-cut housing for efficient panel mounting in various network environments.
Constructed with a durable polymer body and high-quality internal alignment sleeves, this adapter ensures consistent signal integrity and low insertion loss. It is an essential component for high-density fiber optic patch panels and distribution equipment in data centers and telecommunications networks.
Key Features
-
Duplex Configuration
Supports two LC connections simultaneously, maximizing panel density and cable management efficiency. -
Multimode Compatibility
Optimized for standard multimode fiber performance, ensuring reliable light transmission. -
No-Flange Design
Allows for streamlined installation in high-density rack environments where space is limited. -
Precision Alignment
Internal alignment sleeves ensure accurate fiber core-to-core contact to maintain signal quality. -
Durable Polymer Housing
Lightweight yet robust material construction protects the internal ferrule alignment against environmental stress. -
Square-Cut Style
Industry-standard form factor ensures compatibility with a wide range of patch panels and adapter plates.
Applications
- Data Centers
- Telecommunications Networks
- Enterprise LAN/WAN
- Fiber Optic Patch Panels
- Broadband Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Fiber Mode | Multimode |
| Mounting Type | No Flange |
| Body Material | Polymer |
| Color | Beige |
| Form Factor | Square Cut / Style 5 |
Frequently Asked Questions
What is the primary function of this adapter?
This adapter acts as a mating sleeve to connect two LC duplex patch cords together, typically within a patch panel or wall-mount enclosure.
Is this adapter compatible with singlemode fiber?
No, this specific part is rated for multimode fiber applications.
What does "no flange" mean?
No-flange adapters are designed for mounting where the adapter is secured via a clip or snap-in mechanism rather than by screws through an external flange.
Can I use this for APC connectors?
This adapter is designed for standard multimode LC connections. Use specific APC-rated adapters for angle-polished connectors.
What material are the internal sleeves made of?
This product features phosphorous bronze alignment sleeves.
