Overview

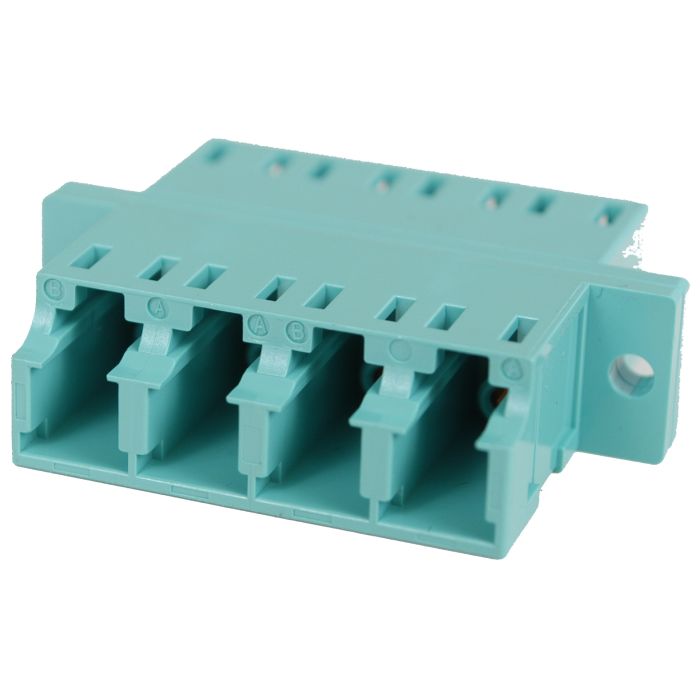

The LC Quad adapter is designed to support high-density fiber optic patching and interconnections. This adapter features a quad-port configuration that allows for the connection of four LC fiber pairs within the standard footprint of an SC duplex adapter. It is specifically engineered for multimode applications and is color-coded in aqua, consistent with industry standards for OM3 and OM4 multimode fiber.
This adapter is designed for installations where panel space is at a premium. The no-flange design facilitates high-density mounting in adapter panels and enclosures. It is constructed to ensure precise alignment of fiber ferrules, promoting optimal signal integrity in data center and telecommunications environments.
Key Features
-
Quad Port Configuration
Supports high-density connectivity by accommodating four LC connectors in a compact SC duplex footprint. -
Multimode Compatibility
Optimized for performance with multimode fiber systems, ensuring low insertion loss. -
Aqua Color Coding
Standardized color for easy identification and compliance with multimode fiber infrastructure requirements. -
No Flange Design
Designed for efficient, space-saving mounting in high-density fiber management systems. -
SC Duplex Footprint
Compatible with standard industry panels and enclosures designed for SC duplex adapter cutouts. -
Precise Alignment
Engineered to maintain stable ferrule alignment, providing consistent optical performance.
Applications
- Data Centers
- Telecommunication Networks
- Fiber Optic Patch Panels
- Enclosures and Rack Systems
- High-Density Fiber Management
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | LC Quad |
| Fiber Mode | Multimode |
| Color | Aqua |
| Mounting Style | No Flange |
| Footprint | SC Duplex |
Frequently Asked Questions
What does the no-flange design imply for installation?
The no-flange design is intended for high-density applications where the adapter is secured directly into a panel or mounting plate without the need for additional external flanges.
Is this adapter compatible with singlemode fiber?
This specific model is designed for multimode applications and is color-coded aqua for multimode identification.
How many fibers can be connected using this adapter?
This is a quad adapter, which allows for the connection of four LC duplex connectors or eight fiber strands.
Will this fit in an SC duplex panel cutout?
Yes, it is designed to fit the standard SC duplex panel footprint.
Is the sleeve material specified?
The manufacturer provides the adapter specifically for multimode connectivity; please consult your equipment documentation for alignment sleeve requirements.
