Overview

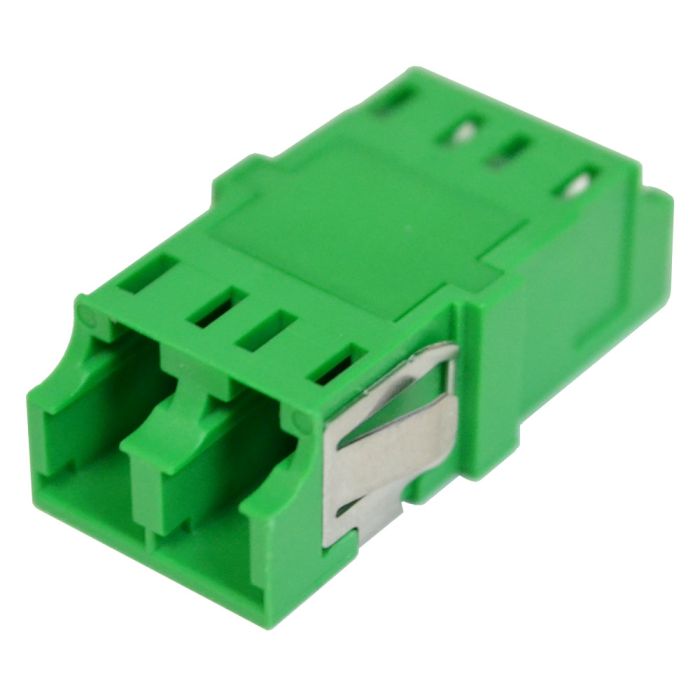

The LC/APC duplex fiber optic adapter is designed for high-density fiber optic networks, providing a precise connection for singlemode applications. Featuring a green housing to identify the APC (Angled Physical Contact) polish, this adapter ensures minimal signal loss and reliable performance in demanding environments.
Constructed with a durable polymer housing and high-precision zirconia alignment sleeves, this adapter offers long-term mechanical stability. It is specifically engineered with an SC footprint, allowing for seamless integration into existing rack-mount panels and wall-mount enclosures without the need for additional mounting hardware, thanks to its no-flange design.
Key Features
-
Duplex Configuration
Supports two fiber connections simultaneously for improved cabling efficiency. -
LC/APC Precision
Optimized for angled physical contact connectors to minimize back-reflection in sensitive networks. -
Zirconia Alignment Sleeve
Provides precise fiber core alignment to ensure low insertion loss. -
SC Footprint Compatibility
Standard form factor ensures easy retrofitting into common fiber management panels. -
No-Flange Design
Streamlines installation in high-density environments where space is limited. -
Durable Polymer Housing
Engineered for mechanical resilience and long-lasting performance in the field. -
GR-326-CORE Compliant
Exceeds industry standards for durability, side-loading, and mechanical integrity.
Applications
- Telecommunications and Data Center networks
- FTTX (Fiber to the X) installations
- High-density patch panels
- Optical distribution frames
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | LC/APC Duplex |
| Fiber Mode | Singlemode |
| Color | Green |
| Housing Material | Polymer |
| Alignment Sleeve | Zirconia |
| Mounting | No Flange (SC Footprint) |
| Standards | GR-326-CORE Compliant |
Frequently Asked Questions
What is the purpose of the green color on this adapter?
The green color is the industry-standard identification for LC/APC (Angled Physical Contact) connectors, which help distinguish them from standard UPC (blue) adapters.
Can I use this with standard LC/UPC connectors?
No, APC adapters are designed specifically for APC connectors with an 8-degree angle. Mating them with UPC connectors will damage the fiber end-faces.
Does this adapter require mounting screws?
No, this is a no-flange adapter that snaps into an SC-footprint panel cut-out.
Is this adapter suitable for singlemode fiber?
Yes, this adapter is engineered for singlemode fiber systems.
How many fibers does this adapter support?
This is a duplex adapter, which supports two fiber strands.
