Overview

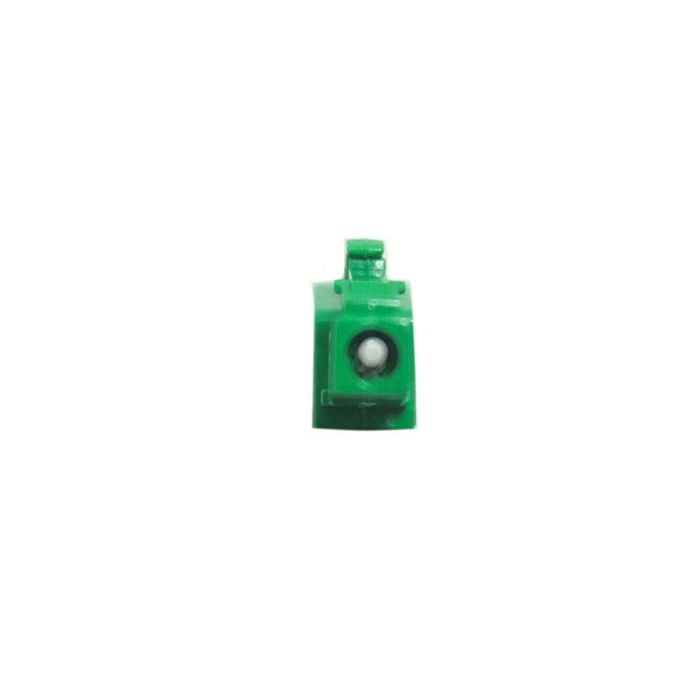

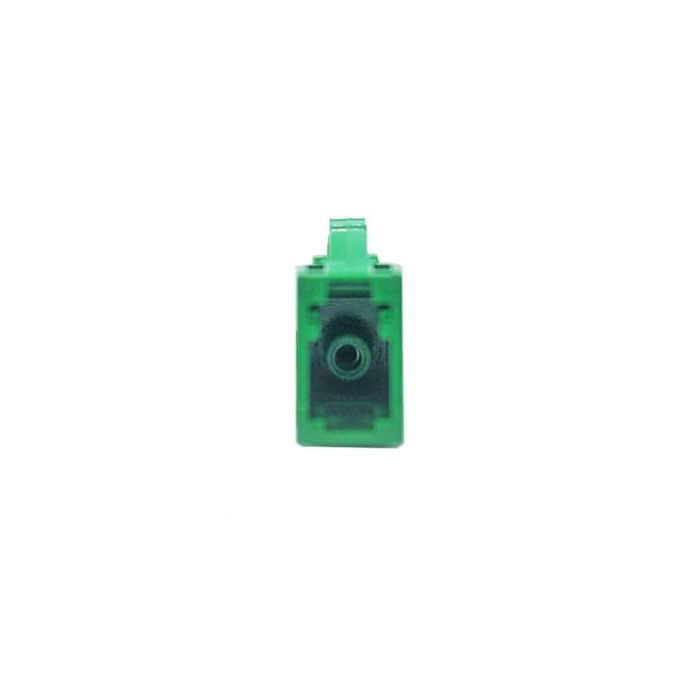

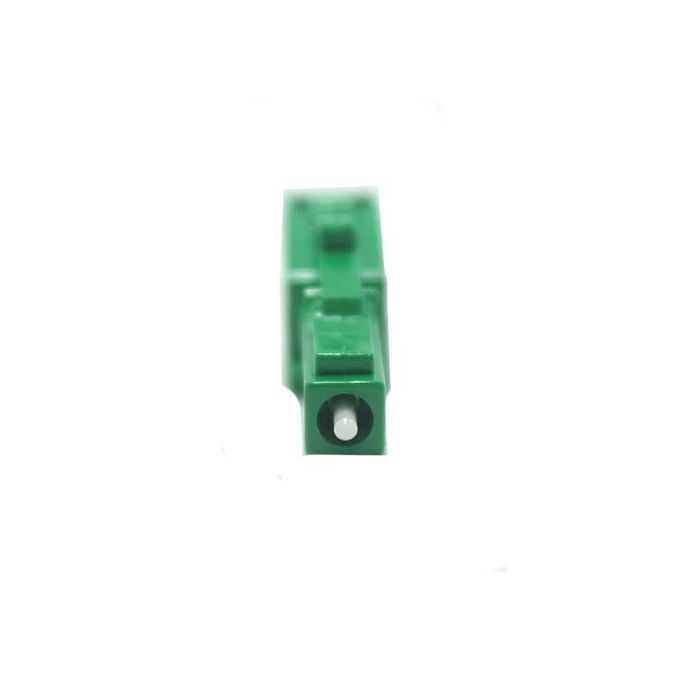

This LC/APC Male-to-Female buildout attenuator is designed for precise signal reduction in fiber optic systems. Utilizing high-quality doped fiber, this component is engineered to provide consistent attenuation levels for both 1310nm and 1550nm operating wavelengths, making it an ideal solution for balancing power levels in telecommunications and data center environments.
Constructed in a convenient male-to-female format, this attenuator installs directly onto existing equipment or patch cables, allowing for seamless integration into link budgets. It is suitable for a wide range of singlemode applications where signal strength must be reduced to prevent receiver saturation.
Key Features
-
Dual Wavelength Operation
Optimized for use at both 1310nm and 1550nm, ensuring versatility across common singlemode network windows. -
Fixed Attenuation Value
Provides a precise 10dB attenuation level, allowing for accurate and predictable signal reduction. -
Male to Female Configuration
Enables simple, direct connection between existing LC/APC interfaces without additional patch cords. -
Doped Fiber Technology
Utilizes doped fiber core construction to maintain signal integrity while effectively reducing power. -
Compact Design
Small form factor minimizes space requirements in high-density rack-mount environments.
Applications
- Telecommunications network power leveling
- Data center equipment protection
- Receiver saturation prevention
- Fiber optic test and measurement systems
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC/APC |
| Configuration | Male to Female |
| Attenuation Value | 10dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Type | Singlemode |
Frequently Asked Questions
What is the primary use for this attenuator?
It is used to reduce signal strength in singlemode fiber optic links to prevent receiver damage or signal saturation.
Is this compatible with 1550nm systems?
Yes, this attenuator is specified for use at both 1310nm and 1550nm wavelengths.
Does this require a patch cord?
Because it is a male-to-female buildout, it plugs directly into an adapter or equipment port, functioning essentially as an extension of your existing fiber connector.
What does APC signify?
APC stands for Angled Physical Contact, referring to the 8-degree angled polish of the connector ferrule, which reduces back-reflection.
Are other attenuation values available?
The product line supports fixed values in 1dB increments from 1dB to 20dB.
