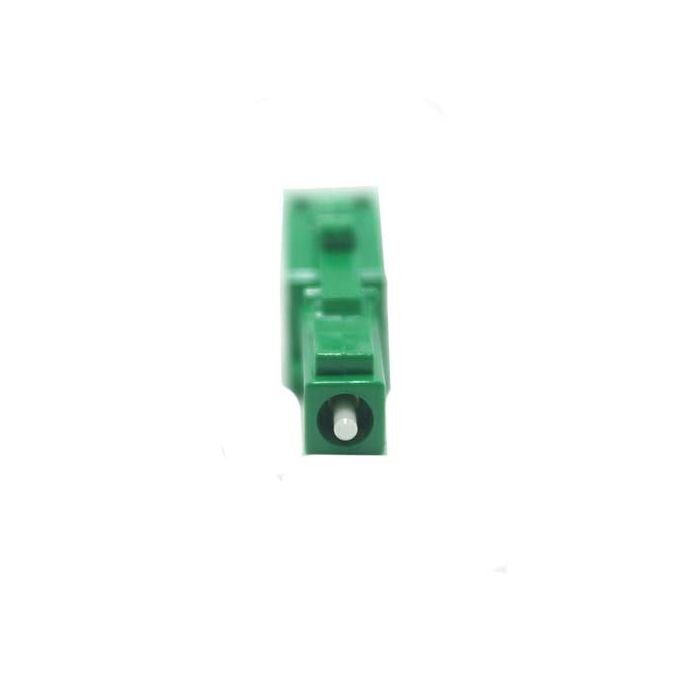

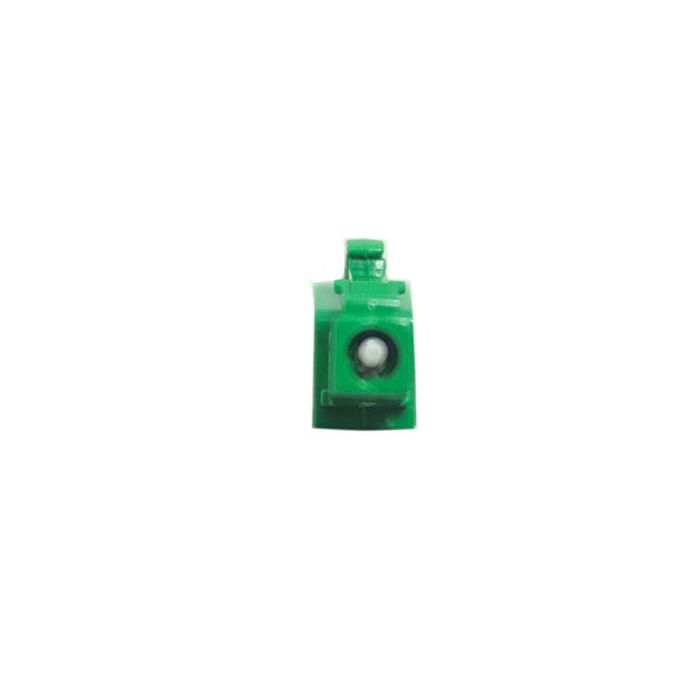

LC APC Male to Female 1310/1550nm 3dB Attenuator

Overview

The LC APC Male-to-Female buildout attenuator is designed to reduce optical signal power levels in fiber optic networks without significantly impacting transmission performance. These attenuators utilize high-quality doped fiber to ensure consistent signal degradation, preventing receiver saturation in high-power fiber optic links.

This fixed-value attenuator is optimized for operation across the dual-wavelength windows of 1310nm and 1550nm. Its compact male-to-female design allows for direct connection to existing fiber optic adapters or equipment ports, making it a practical solution for balancing power levels in network installations and maintenance environments.

Key Features

• Doped Fiber Technology
  Incorporates advanced doped fiber materials to ensure accurate and stable attenuation over long operational lifespans.
• Dual-Wavelength Compatibility
  Engineered for seamless operation at both 1310nm and 1550nm wavelengths, providing versatility for various singlemode applications.
• Fixed Attenuation
  Offers a precise 3dB reduction, ensuring predictable signal management within the network.
• Male-to-Female Design
  Features a standard LC APC connector interface for easy integration into existing patch panels and equipment adapters.
• Compact Form Factor
  The space-saving buildout design minimizes the footprint required at the connection point.
• APC Polish
  Features an Angled Physical Contact (APC) polish to minimize back-reflections and enhance signal integrity.

Applications

• Telecommunications network power leveling
• Data center fiber link management
• Preventing optical receiver saturation
• Fiber optic testing and laboratory setups

Technical Specifications

Frequently Asked Questions

What is the purpose of this attenuator?
It is used to reduce the optical power level of a fiber optic signal to prevent overloading the receiver in high-power scenarios.

Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed for use at both standard singlemode operating wavelengths.

What does the Male-to-Female configuration mean?
The male end connects into an adapter or port, while the female end accepts a standard connector patch cord.

Does this use PC or APC polish?
This model features an APC (Angled Physical Contact) polish for reduced back-reflection.

Can I get different attenuation values?
Yes, fixed attenuation values are available in 1dB increments ranging from 1dB to 20dB.
