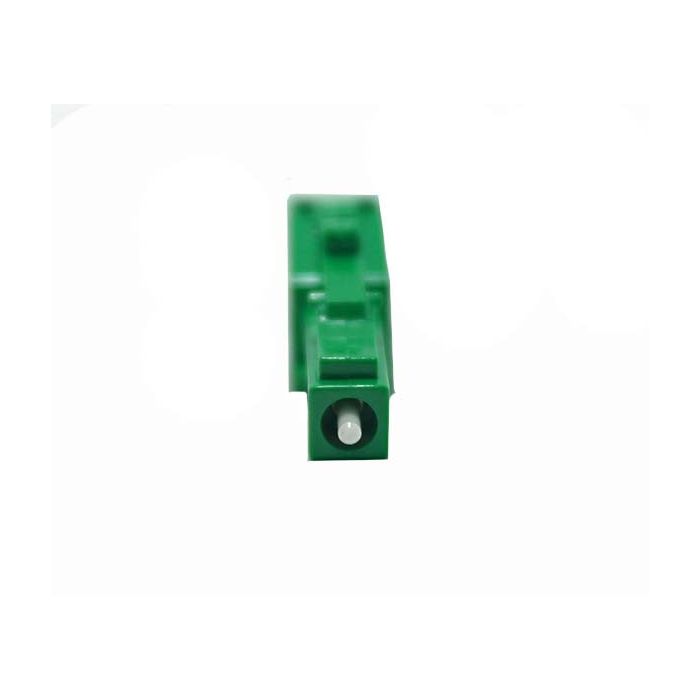

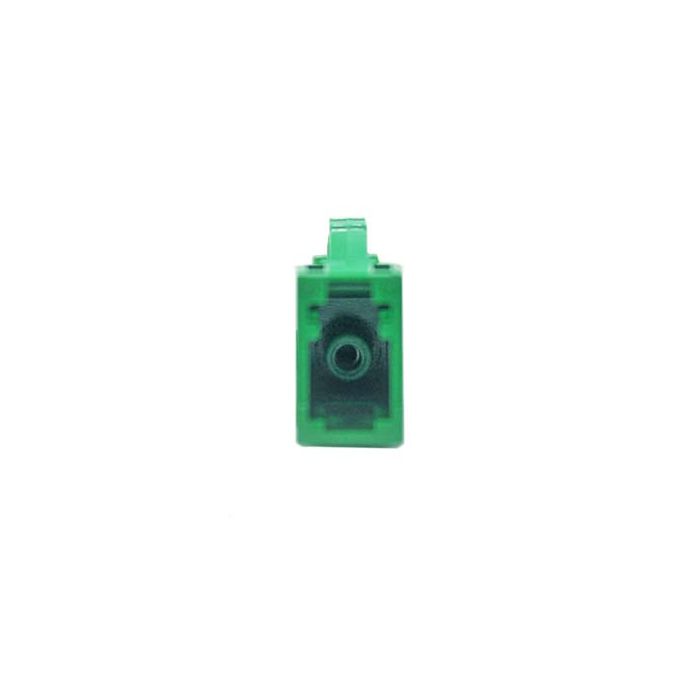

LC/APC Male to Female 7dB Singlemode Attenuator

Overview

The LC/APC Male-to-Female build-out attenuator is a precision fiber optic component designed to reduce signal power levels in singlemode network systems. By utilizing doped fiber technology, this attenuator provides stable performance across both 1310nm and 1550nm operating wavelengths.

This compact, plug-and-play device allows for simple integration between existing patch cords and equipment ports. It is ideal for balancing optical power levels to prevent receiver saturation in high-power applications, such as long-haul telecommunications and data center interconnects.

Key Features

• Doped Fiber Technology
  Uses specialized doped fibers to ensure consistent signal reduction across operating windows.
• 1310/1550nm Optimization
  Optimized for dual-wavelength support in standard singlemode fiber networks.
• Male-to-Female Interface
  Features a plug-style configuration for direct connection to equipment ports or bulkhead adapters.
• Fixed Attenuation
  Provides a precise 7dB reduction to maintain signal integrity within system limits.
• LC/APC Connector Type
  Utilizes angled physical contact (APC) to minimize back-reflections in sensitive optical systems.
• Compact Form Factor
  Space-saving design allows for easy installation in high-density rack-mount environments.

Applications

• Optical power balancing for sensitive receivers
• Long-haul telecommunications
• Data center fiber optic links
• DWDM and CWDM network testing

Technical Specifications

Frequently Asked Questions

What does the 7dB rating mean?
It indicates the fixed amount of optical signal power reduction provided by the attenuator.

Can this be used with multimode fiber?
No, this device is specifically designed for singlemode fiber applications.

What is the purpose of the APC polish?
The angled physical contact (APC) polish is designed to minimize back-reflection or return loss in the fiber line.

Does this fit into standard LC adapter panels?
Yes, the male side acts like a standard LC connector, allowing it to plug into standard LC bulkhead adapters.

Is this a fixed or variable attenuator?
This is a fixed attenuator with a set value of 7dB.
