Overview

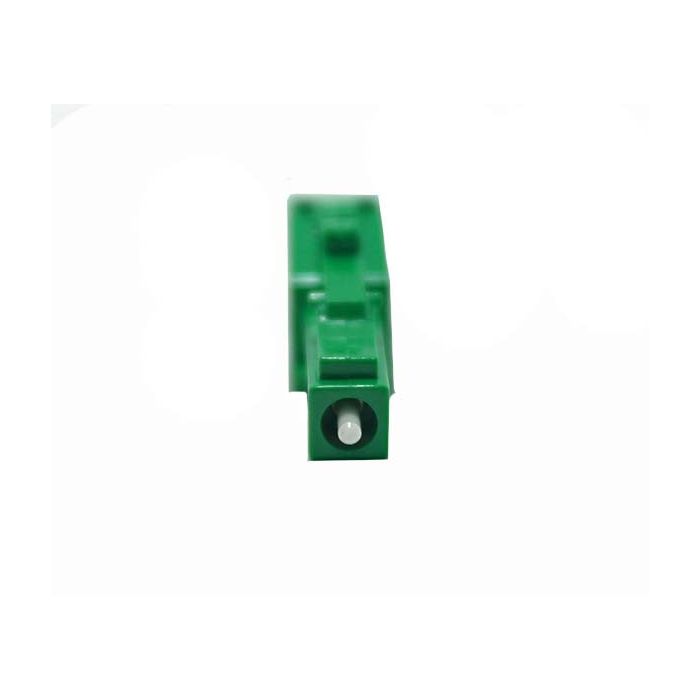

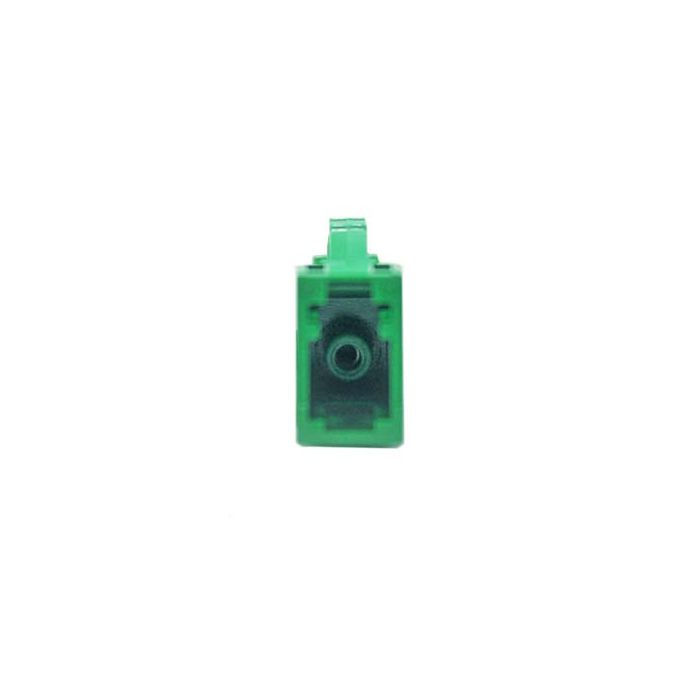

This LC APC male-to-female attenuator is designed to precisely reduce signal levels in singlemode fiber optic networks. By utilizing high-quality doped fiber, this component ensures consistent attenuation performance, preventing signal saturation in sensitive equipment.
The buildout design allows for quick installation between a patch cord and an adapter. It is engineered for stable operation across both 1310nm and 1550nm wavelengths, making it a versatile component for network balancing and testing in data centers and telecommunications environments.
Key Features
-
Dual Wavelength Compatibility
Optimized for both 1310nm and 1550nm singlemode applications, providing operational flexibility. -
Precision Attenuation
Features a fixed 1dB attenuation value to meet strict signal power requirements. -
Male-to-Female Configuration
Designed for buildout applications, allowing for easy integration into existing fiber links. -
Singlemode Performance
Engineered for standard singlemode fiber infrastructures to ensure low-loss transmission. -
LC APC Connector
Utilizes an angled physical contact (APC) connector to minimize back-reflection and improve signal integrity. -
Compact Form Factor
Small physical size allows for high-density patching without requiring extra rack space.
Applications
- Telecommunications distribution networks
- Data center fiber management
- Signal power level balancing
- Fiber optic testing and laboratory setups
- CATV networks
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC/APC |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Attenuation Value | 1dB |
| Operating Wavelength | 1310nm, 1550nm |
Frequently Asked Questions
What is the primary use of this attenuator?
It is used to reduce the signal strength of a fiber optic link to prevent receiver saturation.
Is this compatible with both 1310nm and 1550nm?
Yes, it is designed for effective operation at both common singlemode wavelengths.
What does the Male-to-Female configuration mean?
It means one end plugs directly into an adapter or equipment port, while the other end accepts a patch cord.
Are other attenuation values available?
Fixed attenuation values are typically available in 1dB increments from 1dB to 20dB.
Is this for Singlemode or Multimode fiber?
This specific model is for singlemode fiber applications.
