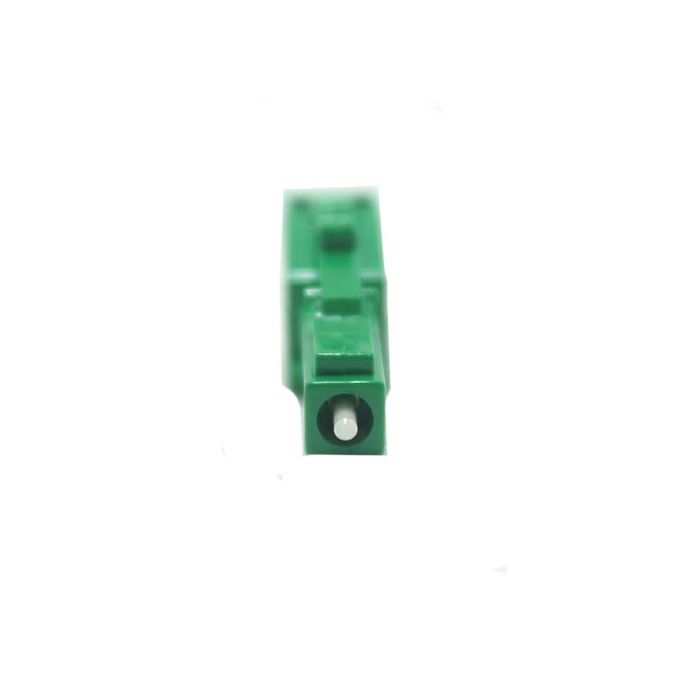

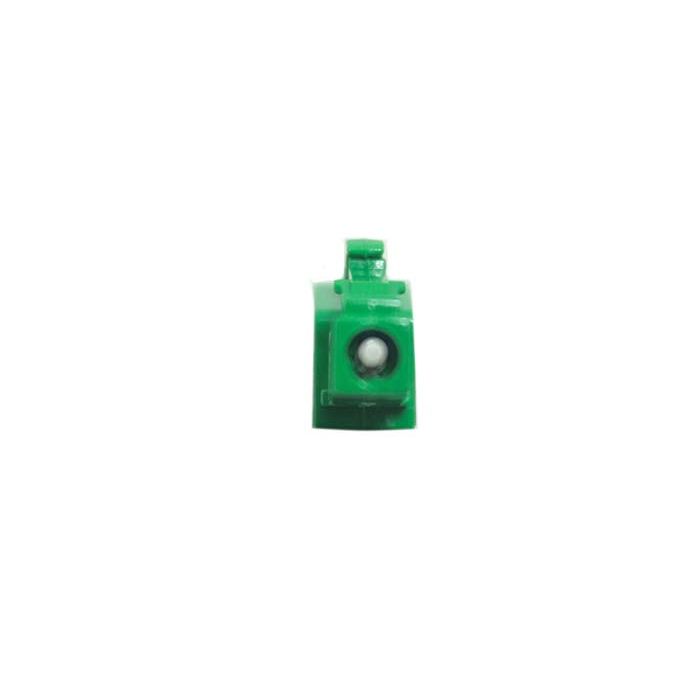

LC APC Male to Female Singlemode 1310/1550nm 4dB Attenuator

Overview

The LC APC Male to Female Attenuator is a precision optical component designed to reduce signal power in singlemode fiber optic networks. By utilizing doped fiber technology, this buildout-style attenuator provides consistent and reliable signal reduction at both 1310nm and 1550nm operating wavelengths, making it an essential tool for managing power levels in high-density telecommunications and data center environments.

This unit features a compact male-to-female design, allowing for seamless integration into existing patch panels or equipment ports. Its APC (Angled Physical Contact) polish ensures minimal back reflection, which is critical for maintaining performance in sensitive high-speed networking applications.

Key Features

• Doped Fiber Construction
  Uses specialized doped fiber to achieve precise attenuation, ensuring stable signal power reduction.
• Dual Wavelength Compatibility
  Optimized for operation at both 1310nm and 1550nm, providing versatility across common network standards.
• Male-to-Female Configuration
  Buildout style allows for direct connection to existing fiber adapters or equipment ports for rapid deployment.
• APC Polish
  Features an angled physical contact polish to minimize return loss and prevent back-reflection issues.
• Precision Attenuation
  Provides a fixed 4dB attenuation value for reliable and predictable signal management.
• Compact Design
  Space-saving form factor is ideal for high-density environments where rack or enclosure space is limited.

Applications

• Telecommunications network power management
• Data center fiber optic distribution
• Signal equalization in WDM systems
• Fiber optic test and measurement setups

Technical Specifications

Frequently Asked Questions

Can this attenuator be used with multimode fiber?
No, this unit is specifically designed for singlemode fiber optic systems.

What does the 4dB value represent?
It represents the fixed amount of optical signal power reduction provided by the attenuator.

Does this unit require an external power supply?
No, this is a passive optical component and requires no electrical power.

Can this be used for inline connections?
Yes, the male-to-female design allows it to function as a buildout adapter connected directly to a patch panel or device port.

Are other attenuation values available?
Yes, fixed values are available in 1dB increments from 1dB to 20dB.
