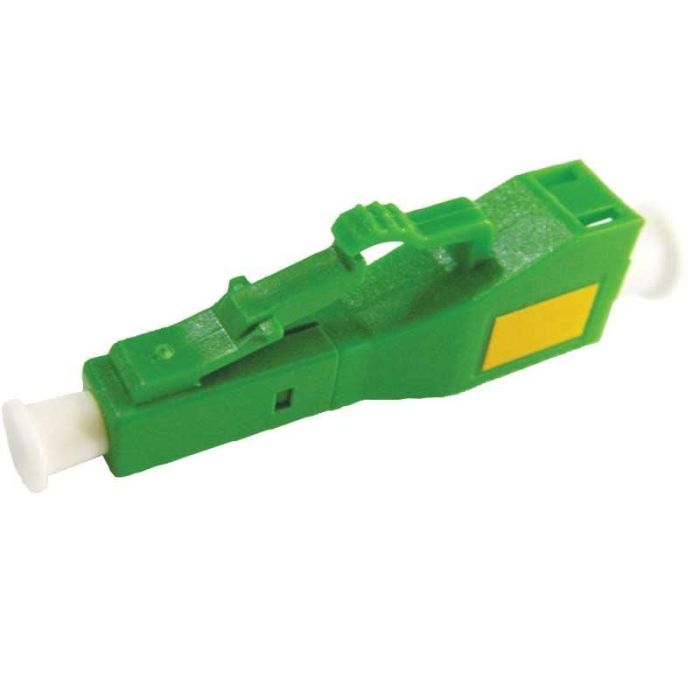

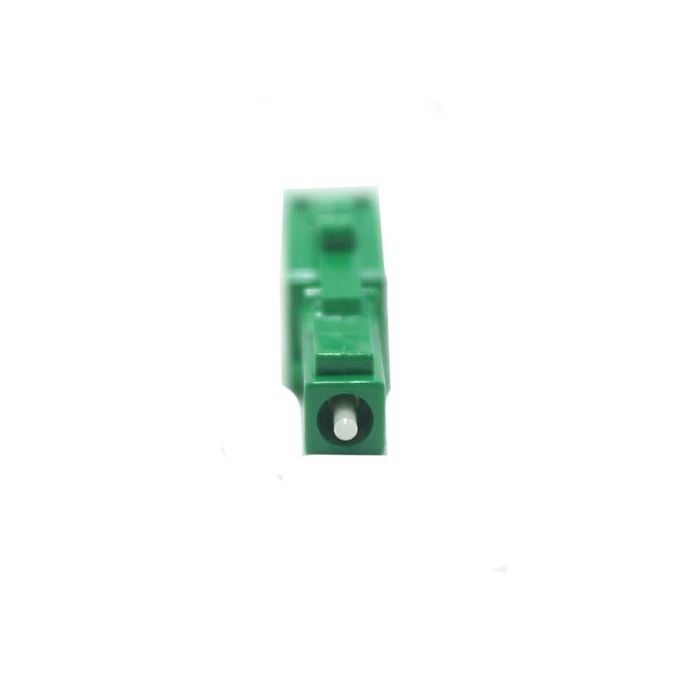

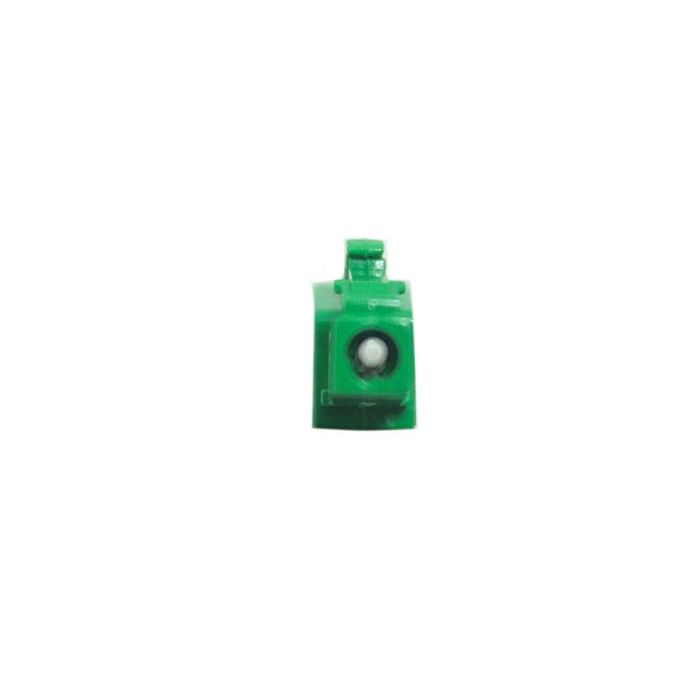

LC/APC Male-to-Female Singlemode 1310/1550nm Attenuator 9dB

Overview

The LC/APC Male-to-Female Attenuator is a high-precision passive component designed to reduce signal power in singlemode fiber optic networks. By incorporating precision-doped fiber, it provides consistent attenuation levels at both 1310nm and 1550nm operating wavelengths, ensuring stable performance across standard telecommunications bands.

This build-out style attenuator features a convenient male-to-female interface, allowing it to be easily integrated into existing fiber patch panels or directly connected to active equipment ports. Its robust design is intended for use in enterprise data centers, telecommunications infrastructure, and FTTX network deployments where precise signal management is required to prevent receiver saturation.

Key Features

• Dual Wavelength Compatibility
  Optimized for both 1310nm and 1550nm, supporting versatile use in various singlemode network architectures.
• Male-to-Female Interface
  Enables direct attachment to equipment ports or existing patch cords for simple, tool-less integration.
• Doped Fiber Technology
  Utilizes integrated doped fiber to achieve accurate, stable attenuation levels without signal degradation.
• Precision Attenuation
  Provides fixed signal reduction, allowing for precise network link budget balancing and protection of sensitive receiver components.
• Compact Build-Out Design
  Space-saving footprint ideal for high-density environments where equipment space is limited.
• Singlemode Precision
  Engineered for standard singlemode fiber applications, ensuring low reflection and high optical integrity.

Applications

• Telecommunications Network Link Budgeting
• Data Center Fiber Management
• FTTX / FTTH Deployments
• Test and Measurement Equipment Protection
• CATV Network Signal Balancing

Technical Specifications

Frequently Asked Questions

What does the male-to-female configuration mean?
The attenuator acts as a bridge; the male end plugs into a standard adapter or equipment port, while the female end accepts a standard LC connector.

Is this compatible with 1310nm and 1550nm?
Yes, this component is designed for dual-window operation, ensuring consistent performance at both 1310nm and 1550nm wavelengths.

Can I use this for multimode fiber?
No, this device is specifically designed for singlemode fiber applications.

What is the primary use for this attenuator?
It is used to reduce the signal power levels to prevent equipment damage or receiver saturation in high-power optical links.

How is the attenuation value achieved?
It uses doped fiber technology inside the connector body to absorb a specific amount of optical power.
