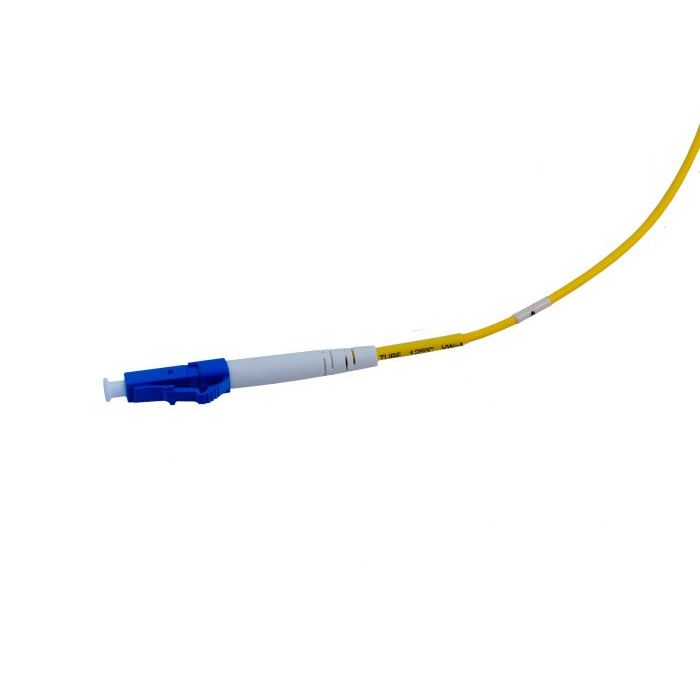

LC/APC Singlemode Simplex Connector (1.6mm/2mm)

Overview

The LC/APC Singlemode Simplex Connector is a precision-engineered fiber optic component designed for reliable network connectivity. Featuring an angled physical contact (APC) polish, this connector is specifically optimized for applications requiring low back reflection and high return loss performance in singlemode fiber systems.

Engineered for use with 1.6mm to 2.0mm jacketed fiber cables, this connector includes a green strain-relief boot for easy identification of the APC polish. It is suitable for deployment in telecommunications, data centers, and fiber-to-the-x (FTTX) installations where signal integrity and network stability are critical.

Key Features

• LC/APC Interface
  Features an angled end-face to minimize back reflections, essential for high-bandwidth video and sensitive data transmissions.
• Precision Ferrule
  Constructed with a high-quality ceramic ferrule to ensure accurate core alignment and repeatable optical performance.
• Versatile Cable Compatibility
  Optimized for use with 1.6mm and 2.0mm simplex cable diameters, providing flexibility for various cabling requirements.
• Color-Coded Strain Relief
  Includes a green boot to clearly distinguish APC connectors from standard UPC variants, reducing the risk of accidental misconnection.
• Simplex Design
  Single-fiber configuration allows for precise patching in crowded fiber management panels and cross-connect environments.
• Durability
  Designed for frequent mating cycles, ensuring consistent connectivity in long-term infrastructure deployments.

Applications

• Fiber-to-the-Home (FTTH) networks
• Data center cross-connects
• CATV and video distribution systems
• Telecommunications infrastructure
• Optical testing and measurement equipment

Technical Specifications

Frequently Asked Questions

What does the APC polish represent?
APC stands for Angled Physical Contact. The connector end-face is polished at an 8-degree angle, which directs reflected light into the cladding rather than back toward the source, significantly improving return loss.

Can I use this connector with UPC connectors?
No. APC and UPC connectors are not compatible. Mating them can cause permanent damage to the fiber end-faces and result in high insertion loss.

Is this connector compatible with both 1.6mm and 2mm cable?
Yes, it is designed to accommodate jacketed fiber cables within the 1.6mm to 2mm range.

What does the green boot signify?
In fiber optics, the color green is the industry-standard designation for APC-polished connectors.

Is this for singlemode or multimode fiber?
This connector is intended for use with singlemode fiber systems.
