Overview

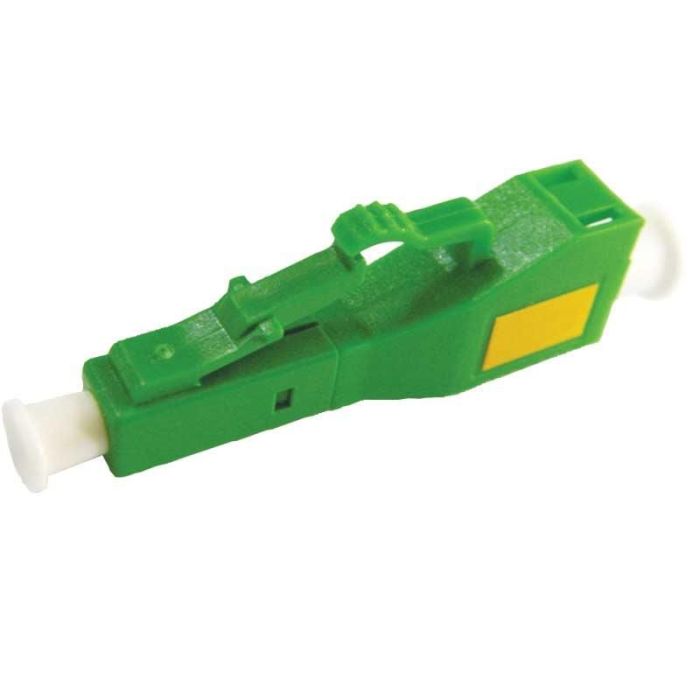

The LC Male to Female Singlemode APC Attenuator is a precision optical component designed to reduce signal power in fiber optic networks. By providing a fixed 15dB attenuation level at both 1310nm and 1550nm wavelengths, it helps prevent receiver saturation in high-power systems and ensures signal integrity across long-haul and metro network links.
This attenuator features a convenient male-to-female (plug-and-jack) design, allowing for seamless integration into existing LC patch panels or direct connection to active equipment ports. Built for performance in demanding environments, this device ensures consistent signal management and minimizes reflection concerns common in sensitive fiber optic installations.
Key Features
-
Fixed Attenuation Level
Provides a precise 15dB reduction, ensuring stable signal levels for optical receivers. -
Dual-Wavelength Compatibility
Optimized for both 1310nm and 1550nm operating windows, suitable for standard singlemode applications. -
Male to Female Design
Allows direct, plug-and-play installation into existing LC APC adapters or equipment interfaces. -
APC Polishing
Features Angled Physical Contact (APC) to minimize back-reflection and return loss. -
Compact Form Factor
Easily integrates into high-density rack mount enclosures and patch panels without significant space requirements. -
Consistent Signal Reduction
Prevents equipment damage from excessive power levels in high-output transmission systems.
Applications
- Telecommunications and CATV networks
- Fiber to the Home (FTTH) infrastructure
- Optical power level calibration and testing
- Data center equipment protection
- High-speed long-haul communication links
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Male to Female |
| Fiber Type | Singlemode |
| Polish | APC (Angled Physical Contact) |
| Attenuation Value | 15dB |
| Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the purpose of a fixed attenuator?
A fixed attenuator is used to reduce the optical power of a signal to a level that the receiver can handle without overloading or causing data errors.
Can this attenuator be used with multimode fiber?
No, this is specifically designed for singlemode fiber optic systems with APC connectors.
What does the 15dB rating mean?
This indicates the amount of power the signal is reduced by when passing through the attenuator; in this case, 15 decibels.
Is this a plug-and-play device?
Yes, the male-to-female configuration allows you to connect the male side into an adapter and attach a patch cord to the female side.
Why is APC polishing important?
APC polish minimizes back-reflection, which is crucial for maintaining the performance and stability of high-speed and sensitive laser-based networks.
