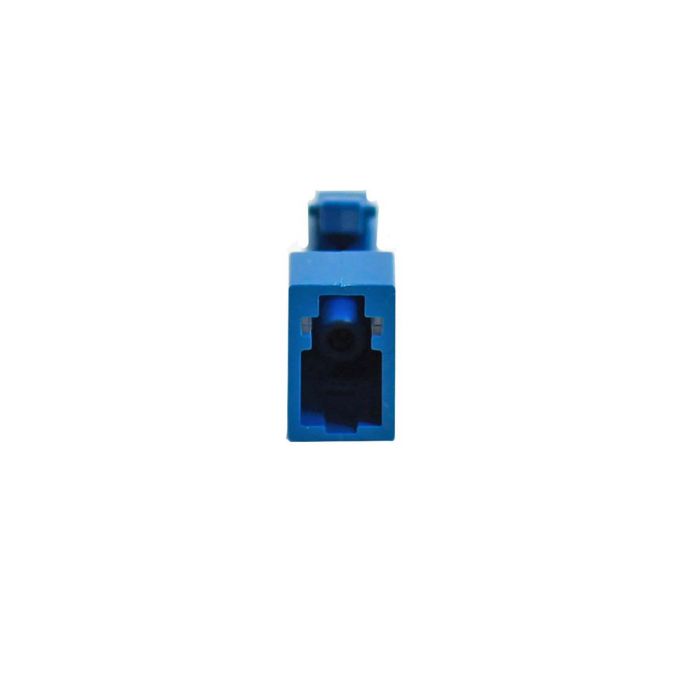

LC Attenuator Male to Female Singlemode 1310/1550 UPC Attenuator 3dB

Overview

The LC Attenuator (Male-to-Female) is a precision-engineered passive optical component designed to reduce signal power in singlemode fiber optic networks. By utilizing doped fiber technology, this attenuator ensures consistent signal attenuation across both 1310nm and 1550nm operating wavelengths, preventing receiver saturation in high-power network applications.

Designed for easy integration, the male-to-female interface allows this device to be connected directly to an existing adapter or port without requiring additional patch cords. This compact build-out design is ideal for telecommunications, data centers, and enterprise network environments where precise signal level management is required to maintain system integrity.

Key Features

• Wavelength Compatibility
  Optimized for both 1310nm and 1550nm windows, ensuring versatility across common singlemode network infrastructures.
• Doped Fiber Technology
  Uses specialized doped fiber to achieve stable and accurate attenuation levels throughout the signal path.

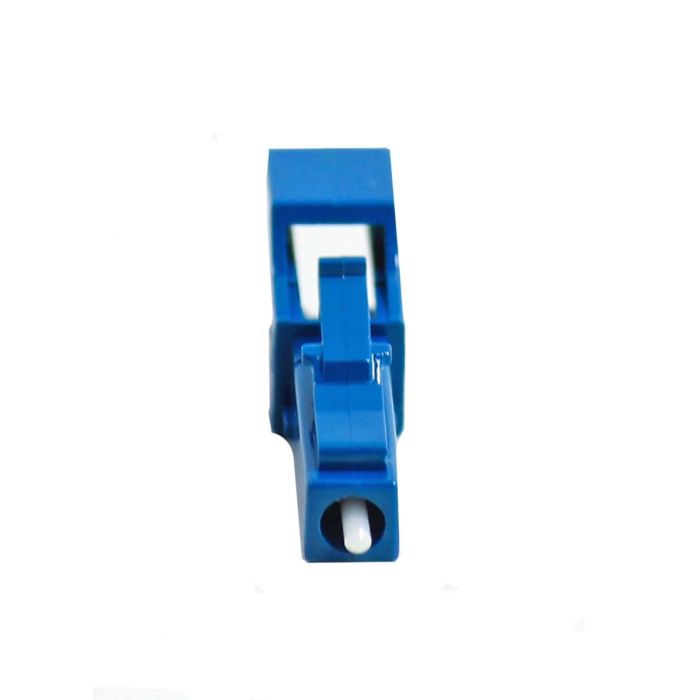

• Build-Out Design
  The male-to-female configuration allows for direct plug-and-play installation into patch panels or active equipment ports.
• UPC Polish
  Features Ultra Physical Contact (UPC) polishing to provide low return loss and consistent signal transmission.
• Compact Form Factor
  Space-saving design minimizes physical footprint, making it suitable for high-density rack configurations.
• Fixed Attenuation Value
  Provides a reliable, permanent 3dB signal reduction, eliminating the variability associated with variable attenuators.

Applications

• Telecommunications and CATV networks
• Data center fiber optic equipment protection
• Fiber optic test and measurement systems
• Network equipment receiver power leveling

Technical Specifications

Frequently Asked Questions

What is the primary purpose of this attenuator?
This device is used to reduce the optical power level in a fiber link to prevent receiver saturation or damage in equipment sensitive to high signal intensity.

Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber optic applications.

Does this require an additional patch cord?
No, the male-to-female design allows it to be connected directly into a female adapter or equipment port.

Can I use this for both 1310nm and 1550nm signals?
Yes, the doped fiber technology supports operation at both standard telecommunications wavelengths.

What does the 3dB value mean?
The 3dB rating signifies the amount of optical signal reduction provided by the component.
