Overview

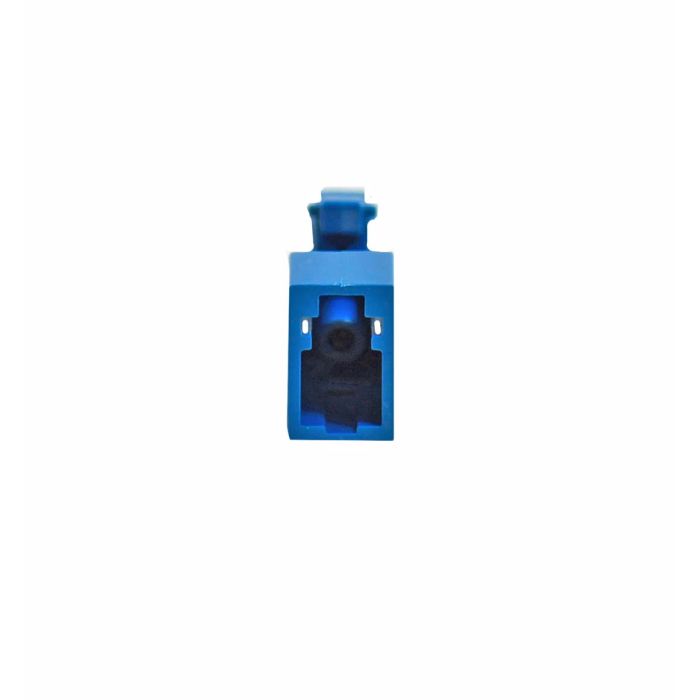

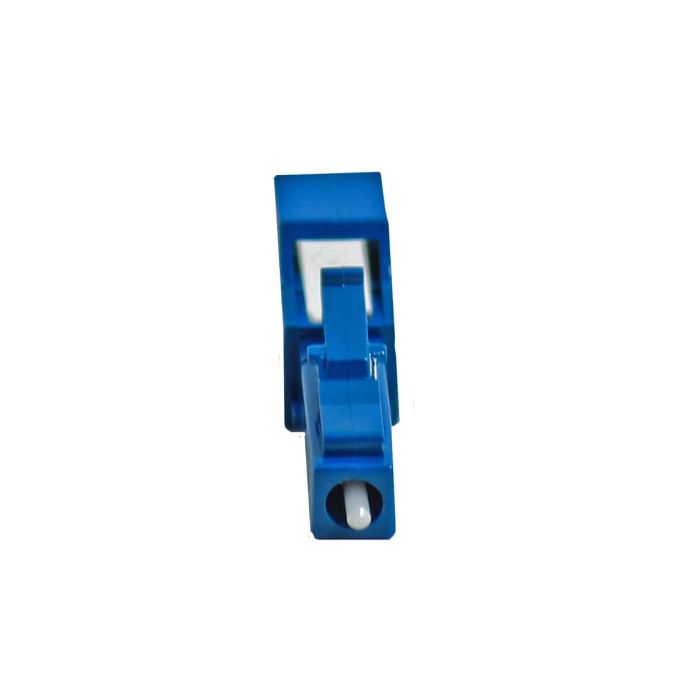

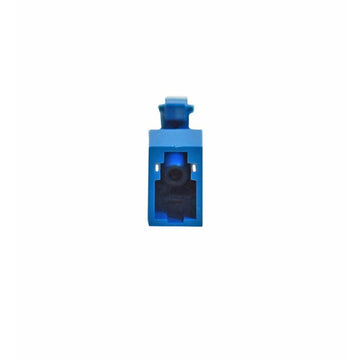

The LC Attenuator (Male-to-Female) is a precision fiber optic component designed to reduce signal power levels in singlemode network applications. Featuring doped fiber technology, these attenuators provide consistent performance across both 1310nm and 1550nm operating wavelengths.
This build-out style attenuator is designed for direct integration into existing network equipment, making it ideal for link power management and testing environments where signal intensity must be strictly controlled to prevent receiver saturation.
Key Features
-
Doped Fiber Technology
Ensures stable and precise light signal reduction for reliable network operation. -
Universal Wavelength Compatibility
Optimized for both 1310nm and 1550nm singlemode applications. -
Male-to-Female Interface
Allows for quick, modular installation directly onto existing LC patch cables or ports. -
UPC Polish
Utilizes Ultra Physical Contact connectors to maintain high return loss and low back-reflection. -
Compact Form Factor
Requires minimal space within racks or enclosures for efficient high-density deployment. -
Consistent Attenuation
Provides fixed 8dB signal reduction to meet strict link budget requirements.
Applications
- Telecommunications network power level balancing
- Data center equipment protection
- Fiber optic test and measurement
- Optical power budget calibration
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Polish | UPC |
| Attenuation Value | 8dB |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What does the Male-to-Female configuration allow?
The male-to-female design allows the attenuator to act as a patch-cable adapter, plugging directly into a female bulkhead port while accepting a male cable connector on the other side.
Is this compatible with multimode fiber?
No, this device is specifically engineered for singlemode fiber networks.
Can I use this for high-power laser applications?
This attenuator is designed for standard telecommunications signal levels. Consult your laser source specifications for power handling requirements.
What is the purpose of the 8dB reduction?
It is used to lower the optical power received by an SFP or transceiver to prevent signal clipping or hardware damage caused by excessive input power.
Are other attenuation values available?
Yes, these attenuators are manufactured in 1dB increments ranging from 1dB to 20dB.
