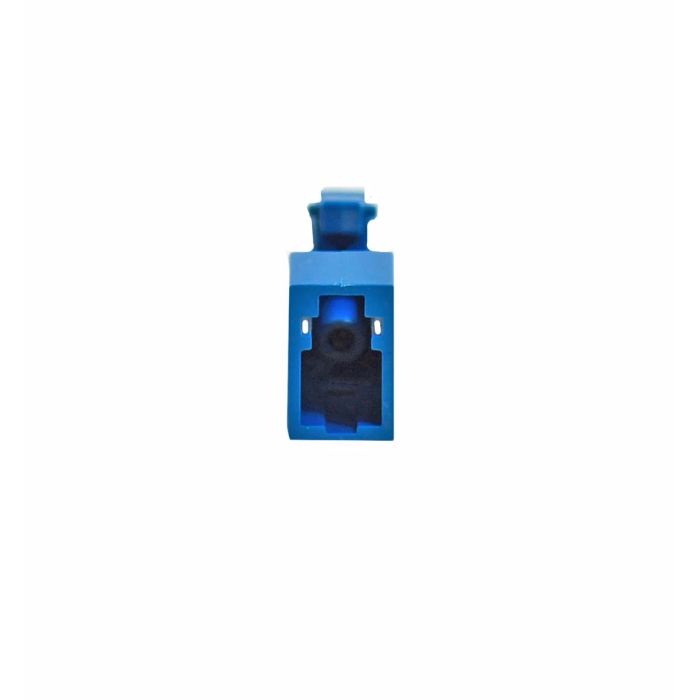

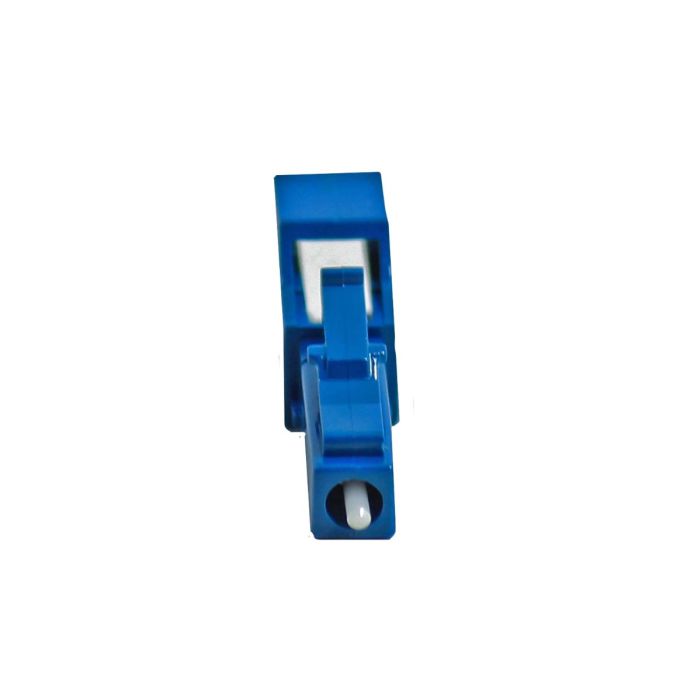

LC Attenuator Male to Female Singlemode 1310/1550 UPC Attenuator 9dB

Overview

The LC Male to Female Singlemode Attenuator is a precision component designed to reduce optical signal power levels in fiber optic networks. By utilizing doped fiber technology, it provides consistent and controlled attenuation for both 1310nm and 1550nm operating wavelengths, ensuring signal integrity is maintained without overloading sensitive equipment.

This build-out style attenuator features a compact male-to-female connector design, allowing for easy integration into existing patch panels, equipment ports, or link paths. It is ideal for balancing power levels in long-haul, metropolitan, and data center network applications where precise signal management is required to prevent receiver saturation.

Key Features

• Dual Wavelength Compatibility
  Optimized for both 1310nm and 1550nm, providing versatility across common singlemode network environments.
• 9dB Fixed Attenuation
  Provides a precise 9dB reduction in signal power to protect downstream hardware from excessive light levels.
• LC Male-to-Female Interface
  Standardized connector configuration allows for direct "build-out" installation onto existing fiber ports or patch cords.
• Doped Fiber Technology
  Utilizes integrated doped fiber to achieve stable, wavelength-independent attenuation performance.
• UPC Polish
  Features Ultra Physical Contact polish for low back-reflection and enhanced signal quality in high-speed links.
• Compact Build-Out Design
  Space-saving form factor enables easy installation in high-density rack environments and congested patch panels.

Applications

• Telecommunications signal power balancing
• Fiber optic test and measurement equipment protection
• Data center interconnections
• FTTH (Fiber to the Home) network installations
• CATV distribution systems

Technical Specifications

Frequently Asked Questions

What does a male-to-female attenuator do?
It is installed directly onto a port or cable end to reduce the optical signal power level by a specific decibel (dB) amount to prevent receiver saturation.

Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed for use in both 1310nm and 1550nm singlemode applications.

What does the UPC polish mean?
UPC stands for Ultra Physical Contact; it is a type of connector end-face polish that provides a better surface finish than standard PC, resulting in lower return loss.

Can I use this for multimode fiber?
No, this device is specifically engineered for singlemode fiber applications.

How is this installed in a network?
The male side plugs directly into a female adapter or port, and the fiber patch cord plugs into the female side of the attenuator.
