Overview

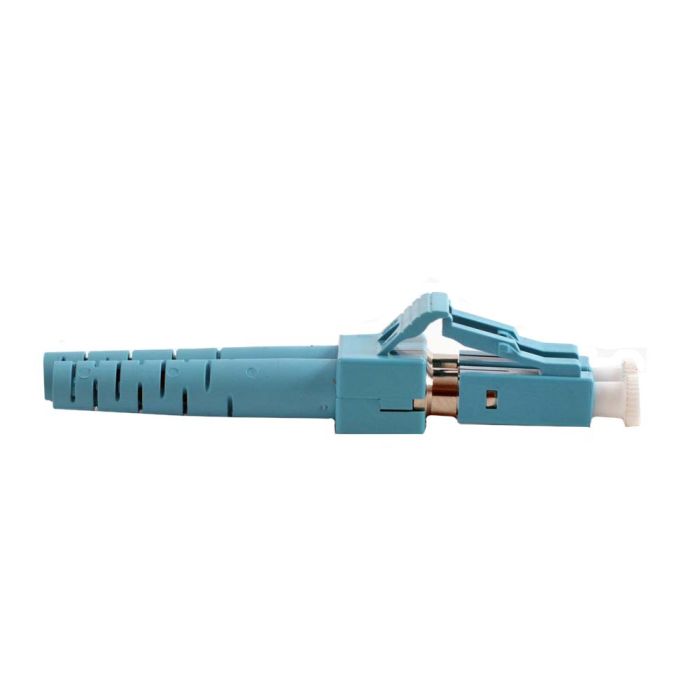

The LC duplex multimode connector is engineered to provide high-density connectivity in fiber optic networks. Featuring a pull-proof design, this connector is ideal for environments where space is limited and reliable, stable connections are required.
Equipped with a 1.25 mm zirconia ferrule, this connector is approximately half the size of standard SC-type connectors. Its unique latching mechanism ensures stability in rack-mounted applications, making it a preferred choice for both multimode and singlemode network installations.
Key Features
-
Compact Form Factor
Uses a 1.25 mm ferrule, allowing for higher port density in patch panels compared to SC connectors. -
Zirconia Ferrule
Provides precise fiber alignment for consistent optical performance. -
Latching Mechanism
Features a secure push/pull latch that maintains stable connections in high-vibration rack environments. -
Duplex Configuration
Designed for two-fiber applications to facilitate efficient transmission and reception. -
Pull-Proof Design
Reduces the risk of connector damage or disconnection during cable handling. -
Aqua Color Coding
Easily identifies the connector as multimode for quick network maintenance and troubleshooting.
Applications
- High-density telecommunications racks
- Data center cabling infrastructures
- Local Area Networks (LANs)
- Multimode fiber optic patch cord assemblies
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Fiber Type | Multimode |
| Ferrule Material | Zirconia |
| Ferrule Size | 1.25 mm |
| Cable Compatibility | 1.6 mm - 2.0 mm |
| Boot Color | Aqua |
Frequently Asked Questions
What is the ferrule size of this LC connector?
This connector utilizes a 1.25 mm zirconia ferrule.
Is this connector suitable for high-density applications?
Yes, the LC duplex design is specifically intended for high-density environments due to its small footprint.
Does this connector include a boot?
Yes, it includes a 1.6-2mm aqua boot.
Can this be used for singlemode fiber?
While this specific SKU is listed as multimode, the LC design is generally compatible with both singlemode and multimode applications depending on the specific assembly requirements.
What latching mechanism is used?
It features a push/pull latching mechanism for stability.
