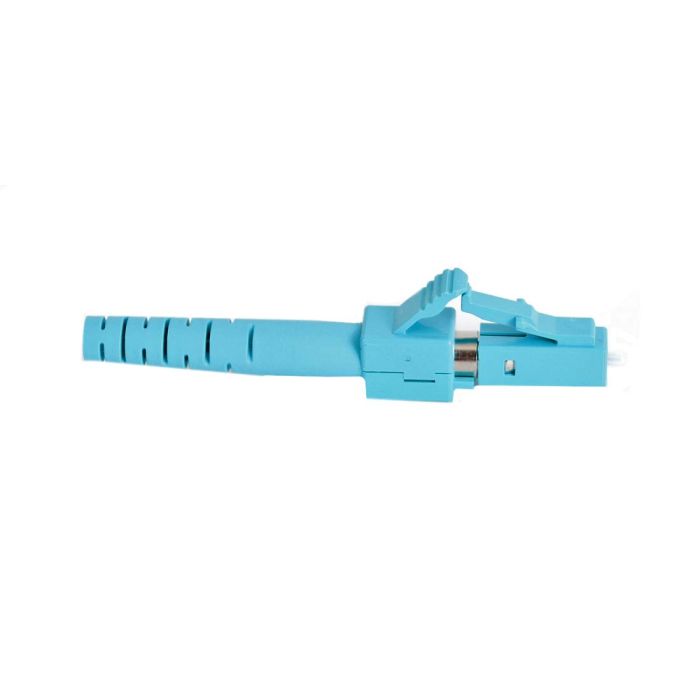

LC Connector Simplex Multimode 50um OM3 Aqua Housing 1.6-2mm Boot
Roll over image to zoom in Click on image to zoom
LC Connector Simplex Multimode 50um OM3 Aqua Housing 1.6-2mm Boot

LC Connector Simplex Multimode 50um OM3 Aqua Housing 1.6-2mm Boot

Fosco ConnectSKU: F1506616AAQ
Price:
$ 4.17
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

Overview

The LC Simplex Multimode Connector is engineered for high-density networking environments. Featuring a pull-proof design and a compact 1.25 mm zirconia ferrule, it provides precise alignment and reliable performance for both singlemode and multimode fiber installations.

The connector utilizes an RJ-style latching mechanism similar to standard telephone jacks, ensuring stable, repeatable connections in system rack mounts. The housing is constructed from durable molded plastic with a square front profile. These simplex connectors are designed to be clipped together to form duplex connections as required.

Key Features

  • 1.25 mm Zirconia Ferrule
    Provides precise fiber alignment for low-loss connectivity.
  • Push/Pull Latch Mechanism
    Ensures stable, secure connections in high-density rack environments.
  • Small Form Factor
    Allows for twice the port density compared to SC style connectors.
  • Simplex Design
    Flexible configuration allows for standalone use or coupling into duplex pairs.
  • Durable Housing
    Molded plastic construction offers long-term durability for cross-connects.
  • Aqua Housing
    Color-coded housing identifies OM3 multimode fiber type for easy system management.

Applications

  • High-density fiber optic distribution
  • Telecommunications networks
  • Data center cross-connects
  • Local Area Networks (LAN)

Technical Specifications

Specification Value
Connector Type LC Simplex
Fiber Mode Multimode (OM3)
Fiber Size 50um
Ferrule Material Zirconia
Ferrule Diameter 1.25 mm
Boot Size 1.6-2.0 mm
Housing Color Aqua

Frequently Asked Questions

What does the LC stand for?
LC stands for Lucent Connector.

Can I turn this simplex connector into a duplex connector?
Yes, two simplex LC connectors can be clipped together to form a single duplex LC connector.

What is the ferrule made of?
The connector features a 1.25 mm zirconia ferrule.

Is this connector suitable for high-density applications?
Yes, its small form factor and push/pull latching mechanism make it ideal for high-density rack mount environments.

What cable size is this boot designed for?
This connector boot is designed for 1.6 mm to 2.0 mm fiber optic cables.
