Overview

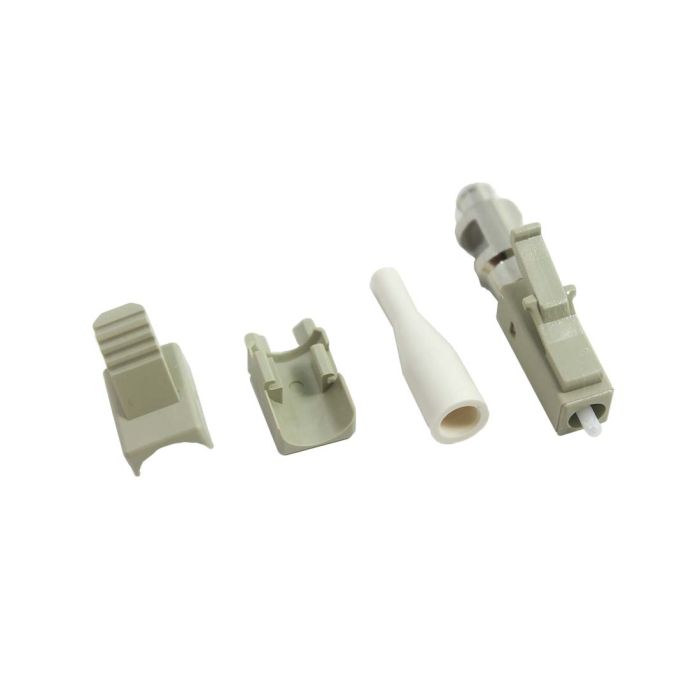

The LC Simplex Multimode Connector is a small form factor fiber optic connector designed for high-density networking environments. Featuring a push-pull latching mechanism similar to an RJ-style modular jack, this connector ensures stable, repeatable connections in system rack mounts. The design utilizes a 1.25 mm zirconia ferrule, which is approximately half the size of a standard SC connector, allowing for increased port density in patch panels and equipment.
Constructed with a molded plastic body and a square front profile, these connectors are suitable for a wide range of multimode fiber applications. Two simplex units can be clipped together to function as a duplex connector, providing versatility for specific installation requirements.
Key Features
-
1.25 mm Zirconia Ferrule
Provides precise alignment and durability for multimode fiber connections. -
Small Form Factor
Features roughly half the physical footprint of an SC connector, ideal for high-density applications. -
Push-Pull Latching
Ensures secure, easy-to-use connections and consistent performance. -
Modular Design
Two simplex connectors can be joined together to create a duplex configuration. -
Stable Rack Mounting
The integrated latching mechanism provides high stability in densely populated patch panels. -
Versatile Application
Designed to be compatible with both singlemode and multimode fiber installations.
Applications
- High-density fiber optic patch panels
- Cross-connect systems
- Data center equipment racks
- Network distribution hubs
Package Contents

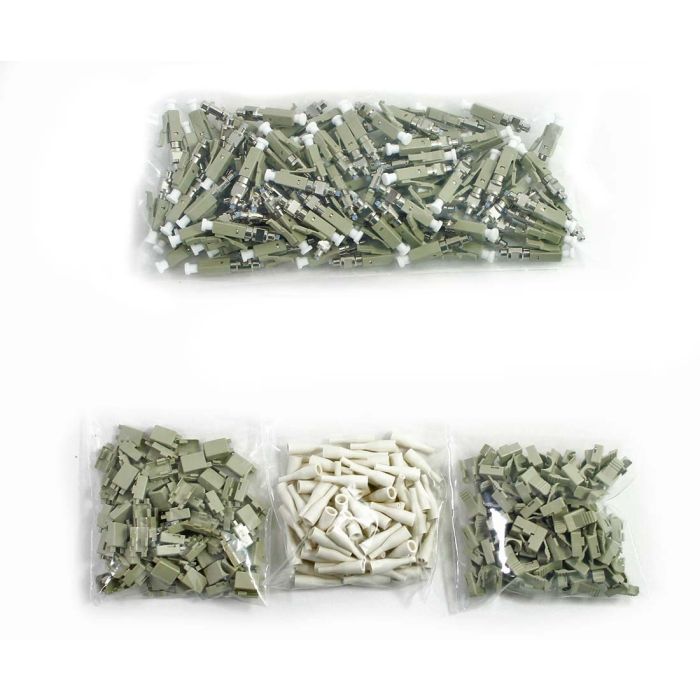

- 100 x LC Simplex Multimode Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Simplex |
| Fiber Mode | Multimode |
| Ferrule Material | Zirconia |
| Ferrule Size | 1.25 mm |
| Cable Size Compatibility | 900um |
| Housing Material | Molded Plastic |
| Latch Type | RJ-Style Push/Pull |
Frequently Asked Questions
What does LC stand for?
LC stands for Lucent Connector.
Can these be used as duplex connectors?
Yes, two simplex LC connectors can be clipped together to form a duplex LC connector.
Are these connectors suitable for high-density environments?
Yes, the small 1.25 mm ferrule size is specifically designed to support high-density fiber installations.
What size fiber are these designed for?
These are designed for 900um fiber applications.
What is the primary material of the ferrule?
The ferrules are made of zirconia for high precision and stability.
