Overview

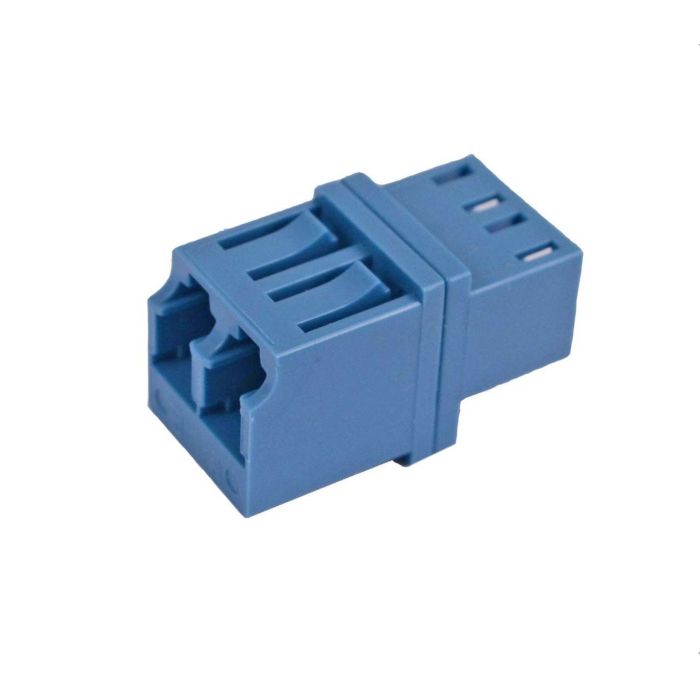

These LC duplex adapters are designed for high-density fiber optic patching applications. Engineered with a precision-aligned zirconia sleeve, these adapters provide consistent performance for singlemode interconnects in data centers, telecommunications networks, and enterprise environments.
The no-flange, square-style design allows for compact mounting in high-density patch panels and enclosures where space is at a premium. Each unit is built with a durable polymer housing for longevity and reliability in standard operating conditions.
Key Features
-
Zirconia Alignment Sleeve
Ensures precise fiber core alignment for low-loss connectivity. -
No-Flange Design
Optimized for high-density mounting in enclosures and patch panels. -
Duplex Configuration
Supports two fiber connections in a single compact footprint. -
Durable Polymer Housing
Provides a robust exterior for repeated mating cycles. -
100-Pack Bulk Packaging
Cost-effective solution for large-scale network deployments. -
Singlemode Optimized
Designed specifically for 9/125 micron singlemode fiber applications.
Applications
- Data Center Interconnects
- Telecommunications Distribution Frames
- Enterprise Network Patching
- High-Density Fiber Optic Enclosures
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | LC Duplex |
| Fiber Mode | Singlemode |
| Sleeve Material | Zirconia |
| Flange Type | No Flange |
| Color | Blue |
| Quantity per Package | 100 |
Frequently Asked Questions
What does the no-flange design mean?
It means the adapter does not have the protruding mounting wings used to screw the adapter to a faceplate, making it ideal for slide-in or snap-in applications in high-density panels.
Are these suitable for multimode fiber?
These specific adapters are configured for singlemode applications using zirconia sleeves. Multimode versions are available separately.
What is the purpose of the zirconia sleeve?
Zirconia provides superior hardness and precision alignment compared to other materials, which is critical for reducing insertion loss in singlemode fiber connections.
Can I use these with APC connectors?
These are standard blue adapters. For APC (Angled Physical Contact) connectors, green adapters are typically required to maintain proper alignment and color-coding.
Are these adapters reusable?
Yes, they are designed for repeated insertion and removal cycles, provided that the connector end-faces are kept clean.
