Overview

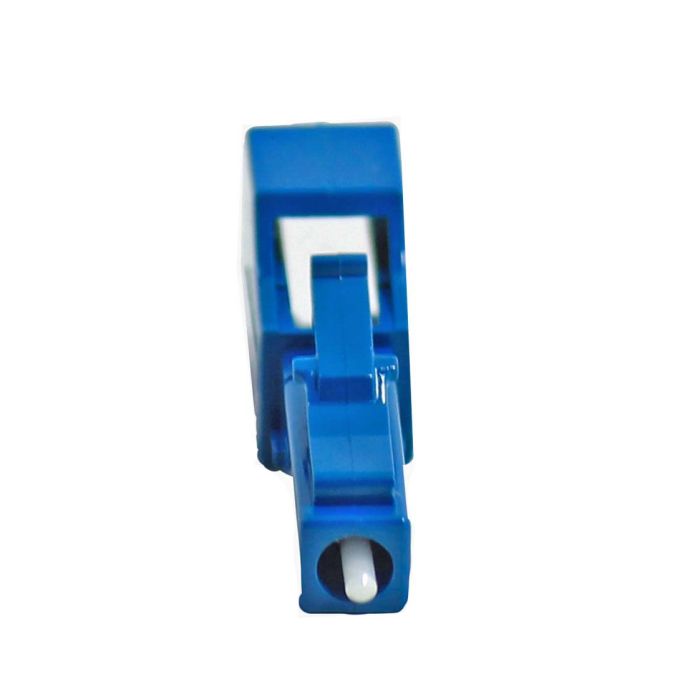

This LC Male-to-Female multimode fiber optic attenuator is designed to provide a precise 3dB signal reduction in 50/125µm multimode network systems. By reducing optical power, this device helps prevent saturation of receiver components in short-range high-bandwidth links, ensuring optimal performance and signal integrity.
Engineered for high-density environments, the male-to-female (plug-and-jack) design allows for simple integration directly onto patch panels or transceiver ports. It features UPC (Ultra Physical Contact) polish for efficient light transmission and consistent optical return loss across the 850 nm operating wavelength.
Key Features
-
Fixed Attenuation
Provides a calibrated 3dB signal reduction to match power levels in multimode networks. -
Male-to-Female Interface
Allows for direct connection to existing ports or patch cords for quick installation. -
Optimized for 850 nm
Engineered for consistent performance in standard short-wavelength multimode applications. -
UPC Polish
Ultra Physical Contact finish helps minimize back-reflection within the fiber link. -
50/125µm Compatibility
Designed for seamless use with standard graded-index multimode fiber. -
Compact Design
Small form factor ensures compatibility with high-density rack configurations.
Applications
- Data Centers
- Storage Area Networks (SAN)
- Local Area Networks (LAN)
- Premise cabling and telecommunications
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Male to Female |
| Fiber Mode | Multimode |
| Fiber Size | 50/125µm |
| Attenuation Value | 3dB |
| Operating Wavelength | 850 nm |
| Polish | UPC |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the signal strength of a fiber optic connection by 3dB to prevent receiver overload in high-power optical systems.
Is this compatible with singlemode fiber?
No, this device is specifically engineered for 50/125µm multimode fiber applications.
How does this connect to my hardware?
The male end plugs into a standard LC adapter or transceiver, while the female end accepts an existing LC connector.
Can this be used for 1300/1310 nm wavelengths?
This product is optimized for 850 nm; performance at other wavelengths may not be consistent with the specified 3dB attenuation.
Does this require special tools to install?
No, it is a plug-and-play device that installs by manually inserting it into existing LC equipment.
