Overview

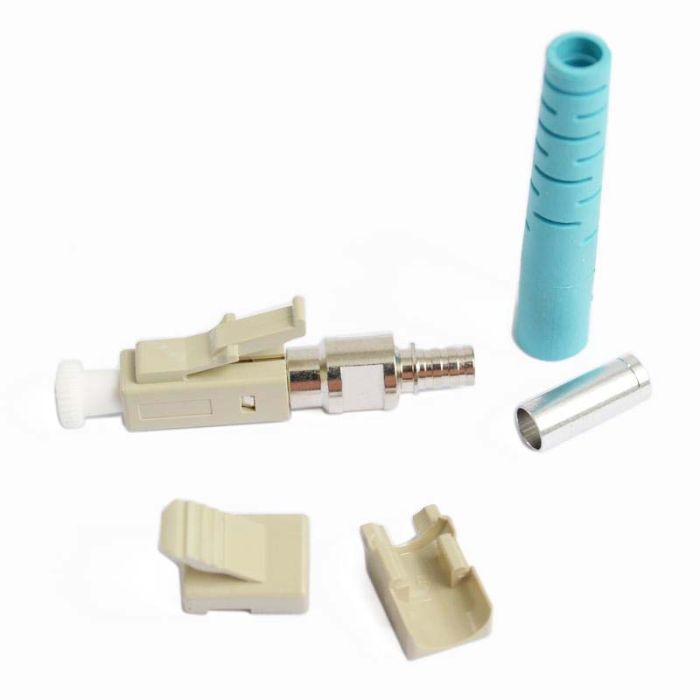

The LC simplex multimode connector is a precision-engineered fiber optic component designed for high-density networking environments. Featuring the widely recognized Lucent Connector (LC) design, it utilizes a pull-proof mechanism and a compact form factor that is approximately half the size of traditional SC connectors, making it an essential choice for space-constrained patch panels and equipment racks.
This connector is optimized for 50μm OM3 multimode fiber applications, featuring an aqua-colored housing to ensure easy identification in color-coded fiber infrastructure. Constructed with a durable molded plastic body and a 1.25mm zirconia ferrule, it provides long-term stability and consistent optical performance. The design incorporates a standard RJ-style latch, allowing for secure, repeatable connections in high-density cross-connect environments.
Key Features
-
Small Form Factor
Features a 1.25mm ferrule size, allowing for double the port density compared to SC-style connectors. -
Zirconia Ferrule
Utilizes a high-precision ceramic ferrule for optimal fiber alignment and signal integrity. -
Push/Pull Latch Mechanism
Provides a secure, RJ-style locking connection that is easy to install and remove in tight spaces. -
Aqua Color Coding
Standardized aqua housing enables quick visual identification for OM3 multimode fiber networks. -
Modular Design
Simplex connectors can be clipped together to form a duplex configuration as system requirements evolve. -
Pull-Proof Design
Ensures the internal fiber remains aligned and protected even when the cable is under light tension.
Applications
- High-density fiber patch panels
- Data center cross-connects
- Telecommunications distribution frames
- Enterprise LAN networks
- OM3 multimode backbone cabling
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Simplex |
| Fiber Type | Multimode 50μm (OM3) |
| Ferrule Material | Zirconia |
| Ferrule Diameter | 1.25 mm |
| Housing Color | Aqua |
| Cable Compatibility | 3 mm |
| Latch Style | RJ-Style Push/Pull |
Frequently Asked Questions
Can these simplex connectors be used as duplex?
Yes, two simplex LC connectors can be clipped together to function as a duplex LC connector.
What does the aqua housing indicate?
The aqua color is the industry standard designation for OM3 50μm laser-optimized multimode fiber.
Is this compatible with 3mm cable?
Yes, this specific connector is designed for 3mm diameter fiber optic cable.
What is the ferrule material?
This connector utilizes a 1.25mm zirconia ceramic ferrule for durability and precision.
Why is it called an LC connector?
LC stands for Lucent Connector, reflecting its original development by Lucent Technologies.
