Overview

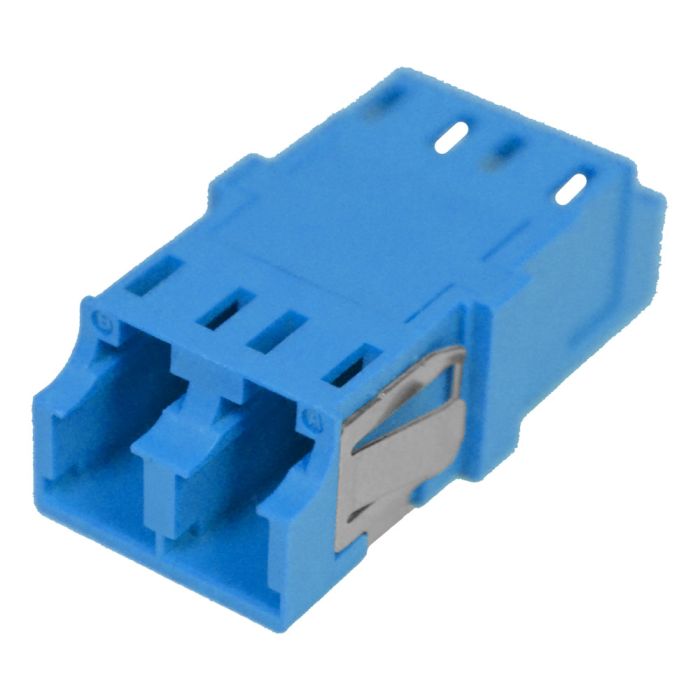

The LC/UPC Duplex Adapter is a precision-engineered component designed for high-performance singlemode fiber optic networking applications. This adapter facilitates reliable connections between two duplex LC connectors, providing a secure interface for data transmission in patch panels, enclosures, and various distribution frames.
Engineered for durability, the adapter features an internal shutter mechanism that provides enhanced protection against laser radiation and environmental contaminants. Its robust construction exceeds stringent GR-326-Core requirements, offering superior performance and stability compared to standard two-piece ultrasonically welded designs.
Key Features
-
Internal Laser Shutter
Integrated shutter mechanism provides essential safety protection against harmful laser radiation when the port is not in use. -
Robust Housing Design
Enhanced polymer body construction improves side-loading performance, ensuring long-term structural integrity. -
Precision Alignment
Utilizes high-grade zirconia alignment sleeves to provide accurate core centering and minimal signal loss. -
GR-326-CORE Compliant
Engineered to meet and exceed rigorous industry standards for telecommunications hardware. -
Compact SC Footprint
Standardized mounting footprint allows for seamless integration into existing SC-style rack and wall-mount enclosures. -
Duplex Connectivity
Supports two fiber channels simultaneously in a single, space-efficient interface.
Applications
- Data center high-density patching
- Telecommunications distribution networks
- FTTX and premise cabling systems
- Fiber optic test and measurement equipment
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC/UPC |
| Fiber Mode | Singlemode |
| Adapter Type | Duplex |
| Housing Material | Polymer |
| Alignment Sleeve | Zirconia |
| Mounting | No Flange |
| Features | Internal Shutter |
| Footprint | SC |
| Standard | Exceeds GR-326-CORE |
Frequently Asked Questions
What is the purpose of the internal shutter?
The shutter automatically blocks laser light when the connector is removed, protecting technicians from accidental exposure to harmful radiation.
Is this adapter compatible with multimode fiber?
This specific model is designed for singlemode applications. Using it with multimode connectors may result in performance degradation.
Does this adapter require special mounting hardware?
No, this model features a 'no flange' design suitable for specific panel mounting configurations using the standard SC footprint.
What material is the alignment sleeve?
It is constructed from high-precision zirconia, which provides excellent stability and durability for repeated matings.
How does this compare to a standard two-piece adapter?
This model features a more robust, non-welded design that provides better structural strength and resistance to side-loading forces.
