Overview

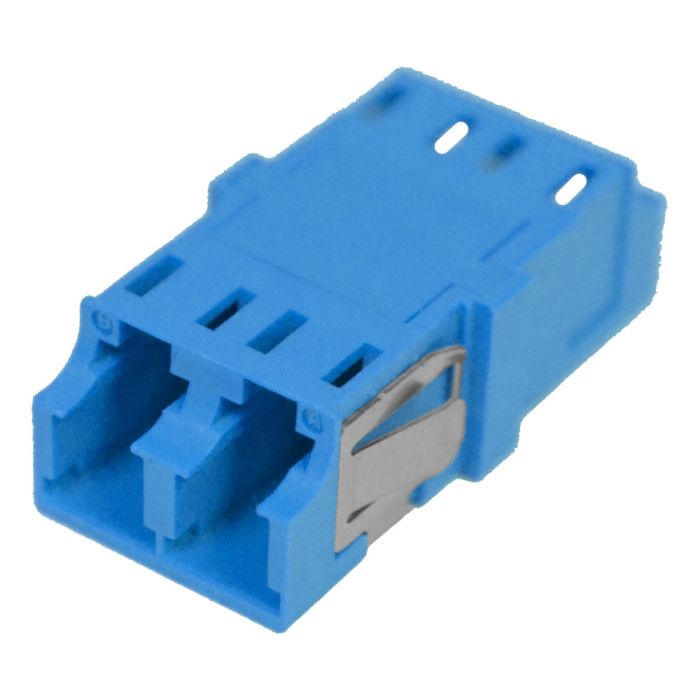

The LC/UPC Duplex Adapter is a precision-engineered component designed for high-performance fiber optic interconnections. Featuring a no-flange design with a standard SC footprint, this adapter is optimized for high-density patching environments, including data centers, telecommunications frames, and enterprise network panels.
Constructed with a durable polymer housing and featuring high-precision zirconia alignment sleeves, this adapter ensures reliable signal transmission and consistent mating performance. The robust design exceeds GR-326-Core requirements, offering enhanced structural integrity and superior side-loading performance compared to standard two-piece welded adapter designs.
Key Features
-
SC Footprint Compatibility
Designed to fit standard SC-sized panel cutouts, enabling easy migration and modularity in existing enclosures. -
No Flange Design
Allows for streamlined installation in high-density mounting applications where space is limited. -
High-Precision Zirconia Sleeves
Ensures accurate fiber core alignment for low insertion loss and reliable signal integrity. -
Robust Polymer Housing
Provides a lightweight yet durable chassis that maintains mechanical stability in demanding environments. -
GR-326-Core Compliant
Exceeds stringent industry standards for environmental and mechanical performance. -
Enhanced Side Loading
The unified body design offers superior resistance to cable side-loading, protecting connections during maintenance.
Applications
- Data center fiber management
- Enterprise LAN/WAN networks
- Telecommunications distribution frames
- Fiber-to-the-x (FTTX) installations
- High-density patch panels
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18411NF |
| Adapter Type | LC/UPC Duplex |
| Mounting Style | No Flange |
| Footprint | SC |
| Fiber Mode | Singlemode |
| Alignment Sleeve | Zirconia |
| Housing Material | Polymer |
| Standards | GR-326-CORE |
Frequently Asked Questions
Is this adapter compatible with multimode fiber?
This specific model is designed for singlemode applications. Using it with multimode fiber may result in performance issues due to the different alignment characteristics.
Does this include a flange?
No, this model is the 'No Flange' version, designed to save space in high-density rack environments.
What kind of alignment sleeve is used?
It utilizes a high-precision Zirconia sleeve for optimal alignment and durability.
Does it fit standard SC cutouts?
Yes, it is designed with an SC footprint for drop-in compatibility with standard panels.
Are there shuttered versions available?
This specific part number is a standard adapter; please contact support if you require the shuttered option for laser protection.
